Scan code: LN91347 Manufacturer code: B450M GAMING PLUS

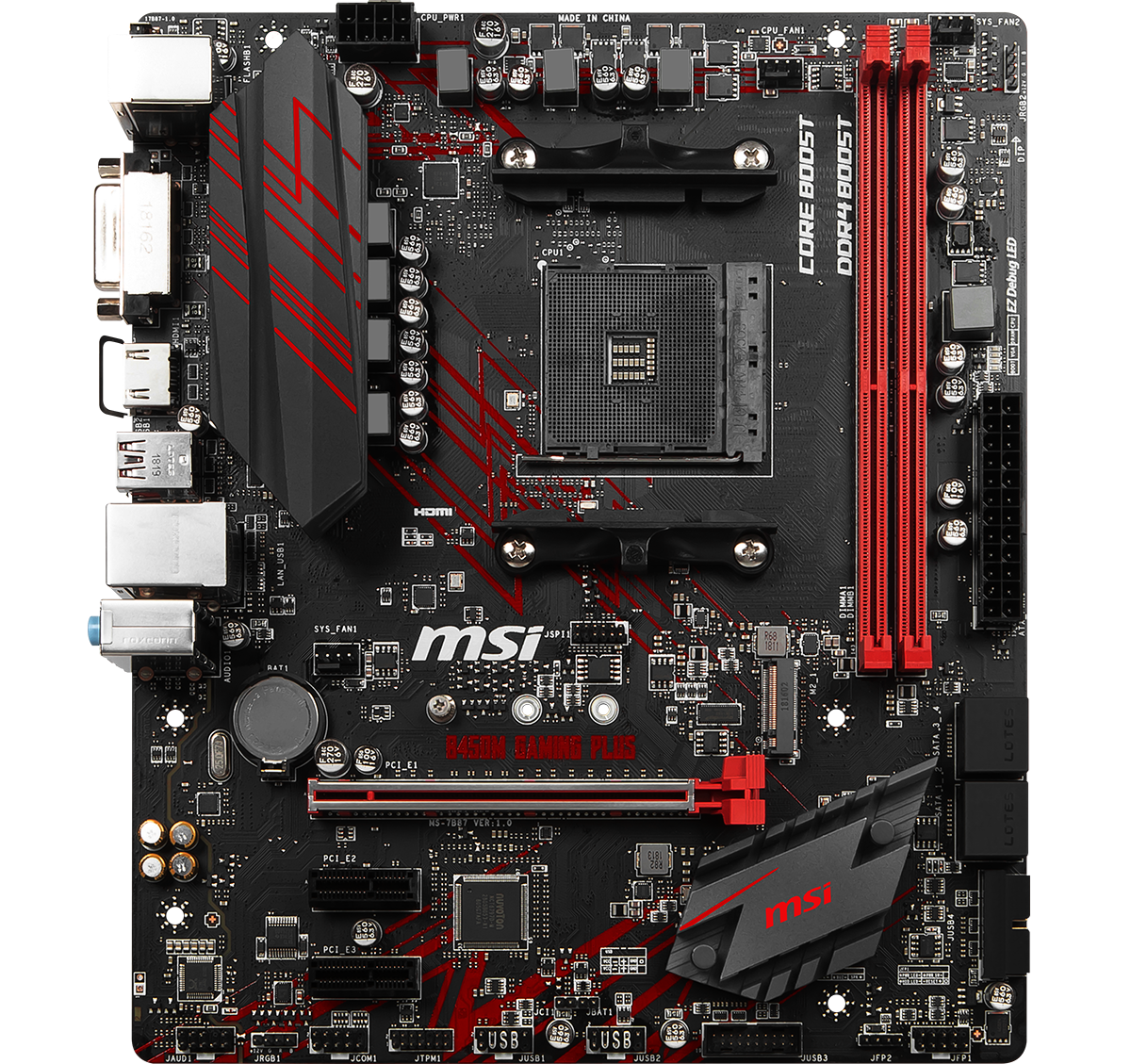

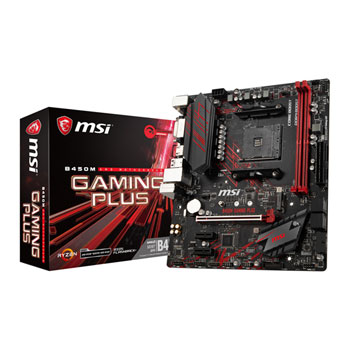

MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard

MSI B450M GAMING PLUS, AMD B450, S AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.1 Gen1 A+C, MicroATX

Thumbnail 1 : MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard Thumbnail 2 : MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard Thumbnail 3 : MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard Thumbnail 4 : MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard : video thumbnail 1 MSI AMD Ryzen B450M GAMING PLUS AM4 Micro ATX Motherboard : video thumbnail 2
Scan code: LN91347 Manufacturer code: B450M GAMING PLUS
£76.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Perform In Style with the MSI mATX B450M GAMING Plus

b450

GAMING power Micro-ATX Motherboard from MSIGet serious gaming performance with the B450M GAMING Plus and its arsenal of game enhancing abilities. GAMING LAN, Turbo M.2, optimized gaming audio and great cooling with a gaming theme are just a few of many empowering aspects. The B450M Gaming Plus makes use of the striking red and black theme combined with PCI-e lane armouring whilst boosts to other areas such as the DDR4 memory power help push this motherboard above others. Plus, you can be sure it will last thanks to the high-quality components used in construction.

AMD B450Chipset

AM4CPU Socket

Micro ATXForm Factor

Stay Cool While Gaming

RGB

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI have included an extended PWM heatsink and enhanced circuit design ensures even high-end Ryzen CPU to run in full speed with MSI motherboards. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

rgbstrip

AUTODETECT DC/PWM MODES WITH HYSTERESISMSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

phone

TOTAL CONTROL IN BIOS AND SOFTWARE Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Your MSI PC Gaming Advantage

hotkey

TOTAL FREEDOM, MAXIMUM EASE Simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! User-friendly, easy-to-use application. Launch your favorite game with a single button. Easily program your most-used commands and execute them with a single keystroke. You’re free to choose any key you want, so choose wisely.

back

Get clearer order with VOICE BOOST Hear your teammates perfectly but still enjoy your audio. Voice Boost automatically reduces the game’s audio when teammates speak, and sets volume back when no one speaks.

hotkey

DEDICATED PORT FOR GAMING PERIPHERALS The GAMING Device Port is optimized to deliver the best connectivity for high-end gaming peripherals to fully utilize their features and responsiveness. Customize your mouse DPI to enhance accuracy or program macro combinations using the easy-to-use Mouse Master software to perform multiple commands with just one click.

back

1-SECOND OVERCLOCKING! Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Best PC Boot-Up Speeds with Turbo M2

memory

XBOOST YOUR STORAGE PERFORMANCE Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! XBOOST optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

AMD StoreMI Technology

storemi

Affordable acceleration for any hard drive All MSI X470 & B450 motherboards are shipped with StoreMI, the new AMD SSD technology to improve storage performance. This tool helps create a virtual SSD by blending capacity storage, treats flash as primary storage and optimizes data access with monitoring continuously. All these functions can enhance read/write speed for active data and provide fast boot times and application startup.

Be Overwhelmed by the Realms of VR

VR

Complete your Immersion From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. Whether it's a feature-rich motherboard, a framerate boosting graphics card or a blazing fast complete gaming system, a huge set of VR-supporting features awaits you. Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it very fast and easy to get primed for VR. A single click sets all your key components to their highest performance and makes sure other software applications won’t impact your virtual adventure.

Stable, Secure and Fast Networking

LAN

LAN PROTECT TO SHIELD YOUR SYSTEM AGAINST POWER SURGESGet ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Sound That Pulls You into the Game

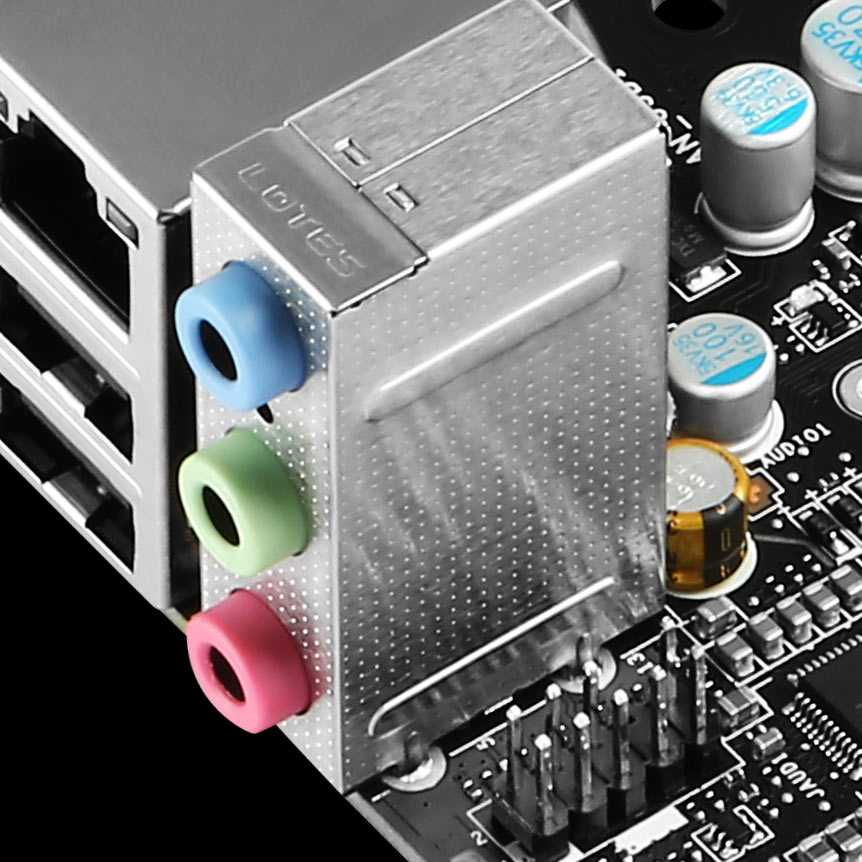

COMBINED FEATURES DELIVER ELEVATED AUDIO Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay. Audio Boost has developed into a high quality audio unit, offering a clear advantage over your opponents when gaming. Locate your enemies with your eyes closed using Audio Boost 4.

nahimic

All New Nahimic 3Get ready to be amazed by the all new Nahimic 3 as it not only further enhances in game 3D surround sound, but also offers even more finite control over your music, movies, and conference calls.

protection

De-pop protection Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

layers

Separated audio layersUsing separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

audioboost

High Definition audio processor Audio Boost is powered by an EMI-shielded High Definition audio processor with built-in DAC, making sure you enjoy the purest sound quality in both stereo and surround sound.

capacitors

Chemi-Con Audio capacitors By dedicating golden audio capacitors to the front output, a high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. The Chemi-Con audio capacitors are widely considered to be one of the great choices for the best sound output.

output

7.1 audio for true surround sound With high quality audio connectors you get the best possible signal output with less chance of distortion.

Memory Speed Impacts Performance

axmp

EASY A-XMP The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in gaming performance or when working with large video and photography files. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games. Enable A-XMP with ease using a single option in the BIOS to gain performance and create a perfectly stable system.

Designed for Limitless Tuning

Core Boost Technology Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Core Boost technology combines MSI's premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision.

layers

LOAD-LINE CALIBRATIONWhat you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

audioboost

DIGITAL POWER DESIGNA fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking.

capacitors

EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

output

OVERVOLTAGE PROTECTIONPrevents potential short-circuit damage to the CPU and other critical components.

Maximize Your USB Device Performance

usb

More Stability with AMD Turbo USB 3.1 GEN2 Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s! Get all the performance benefits from USB 3.1 combined with the convenience of the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices. When enabled, X-Boost optimizes your devices for even better transfer speeds and can provide up to 20% increase in USB performance, saving a lot of time when transferring data. MSI Super Charger USB ports delivers more power than regular USB ports to your device.

Apps to Greatly Improve Efficiency

X-BOOST YOUR STORAGE This unique and exclusive software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your system for up to 20% increased speeds, higher system responsiveness and faster loading of in-game levels.

TAKE COMMAND OF YOUR SYSTEM MSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

Always Up-To-Date Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game.

SSD not fast enough? Try MSI® RAMDISK MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system RAM memory. Instantly load your favorite game, speed up your browser or your page file to significantly speed up your system!

CPU-Z MSI GAMING EDITION MSI has worked closely with the CPUID team to develop a special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information of your system’s key components, like CPU speed, Memory speed and timings, motherboard BIOS version and much more.

Fortify Your System With PCI-e Steel Armor

usb

PREVENT ANY DAMAGE MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a pure gaming experience and even higher overclocking. MSI uses components with the latest evolution of the industries’ highest quality standard. MSI quality approved components are shielded with the best protection and make sure your system run smoothly under the most extreme gaming conditions.

Instantly Optimize and Boost your Performance

usb

EASY MODE FOR QUICK GAMING TWEAKS We made sure our BIOS contains all the latest options and is easy to use for everyone. An award-winning, high-resolution, scalable font is used to make CLICK BIOS 5 easy to read, no matter what type of screen you use. EZ-mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system’s performance, the Advanced mode is the way to go. Can’t find a specific BIOS setting? Don’t worry, a permanent search option in the top right corner can be used to find what you need. CLICK BIOS 5 provides easy access to memory profiles to optimize your internal memory timings and speeds for maximum stability and performance in-game. Safely overclock your CPU with a single button for more performance using MSI Game Boost.

Easy BIOS Recovery with BIOS Flashback+

FLASHBACK YOUR BIOS EVEN WITHOUT A CPU Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue gaming within minutes with BIOS Flashback+. BIOS Flashback+ even works without a CPU, memory or graphics card installed!

down

STEP 1No CPU/DDR/VGA required

up

STEP 2Connect 24-pin & CPU power

up

STEP 3Insert dongle with BIOS file

up

STEP 4Use Flashback hotkey/button

Specifications
Core Specifications
Edition B450M GAMING PLUS
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 2 x 5050 RGB LED 12V connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS FLASHBACK+ Button
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 210 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI UK Support
Telephone:
08708200009
