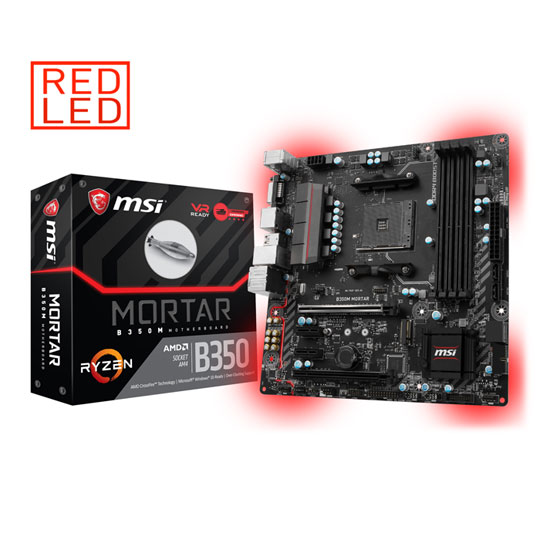

MSI AMD Ryzen AM4 B350M MORTAR Micro ATX Motherboard

MSI B350M MORTAR, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek GbE, USB 3.1 G1 A+C, MicroATX

MSI
Scan code: LN79122 Manufacturer code: B350M MORTAR Request call
£93.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 24th Jul 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Micro B350M MORTAR Motherboard. MSI Gaming Technology.

AM4 MSI Motherboard
Micro MSI ATX Motherboard built to fit any gaming PC

Take over the battlefield with this B350M from MSI. The B350M MORTAR is equipped to take on even the most capable of competition. Ryzen powered, this board features certain aspect to make your gaming experience easier and more enjoyable from an IO section for gaming device ports to gaming optimized audio. It boasts leading heatsink design for enhanced cooling, both Type-C and Type-A connections as well as protection against VGA cards bending and EMI.

AMD B350
Chipset

AM4
CPU Socket

Micro ATX
Form Factor

LED Lighting and Control

AM4 MSI Motherboard Feature
Customize your Gaming PC

Connect external RGB strips and sync other RGB capable gear to set up your own color scheme using only 1 application: Mystic Light Sync. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Feel like using a different color? Completely change the look of your system in 1 second!

Works with certified Mystic Light Sync products

Compatible Mystic Light Brands

Controllable Fan Headers

AM4 MSI Motherboard Feature
MSI Board and Command Center

MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent.

Storage Performance

AM4 MSI Motherboard Feature
Exceptional X-Boost tech enhancments

When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.

B350M Gaming Boost

AM4 MSI Motherboard Feature
Unique MSI gaming advantages

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

VR Ready Motherboard

VR Ready
Immersive Virtual Reality Power

Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.

Advanced Gaming Audio

  • Isolated Audio with LED Line LED Line
  • Chemi-Con Audio capacitors Audio Capacitors
amplify your in-game audio with audio boost 4

Like a dedicated sound card Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Low Latency Gaming

AM4 MSI Motherboard Feature
Dominate the Game with MSI LAN

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Experience DDR4 Power

DDR4 Memory Performance
Unmatched Signal Purity & Compatibility

Memory Signal Purity - MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Best Compatibility - Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

USB 3.1 Boosting

AM4 MSI Motherboard Feature
Maximize your USB Device performance

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

High-End Components

AM4 MSI Motherboard Feature
Built on everlasting quality

Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

Specifications
Core Specifications
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~3 ONLY)
  • RAID 1 (SATA 0~3 ONLY)
  • RAID 10 (SATA 0~3 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 3 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Gen1 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
SCAN/MSI
Telephone:
0871 472 4747
