Scan code: LN107064 Manufacturer code: MSI Z490-A PRO

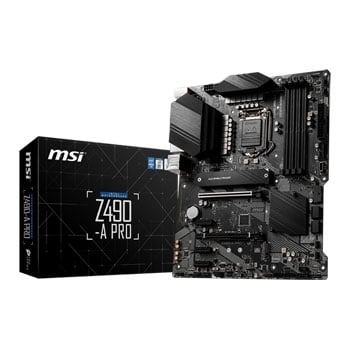

MSI Intel Z490-A PRO ATX Motherboard

MSI Z490-A PRO, Intel Z490, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI Intel Z490-A PRO ATX Motherboard Thumbnail 2 : MSI Intel Z490-A PRO ATX Motherboard Thumbnail 3 : MSI Intel Z490-A PRO ATX Motherboard Thumbnail 4 : MSI Intel Z490-A PRO ATX Motherboard
Scan code: LN107064 Manufacturer code: MSI Z490-A PRO
£154.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £13.92 / month (APR 14.9%)
Monthly Payment: £13.92
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £154.99
Total inc. interest: £166.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 10th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

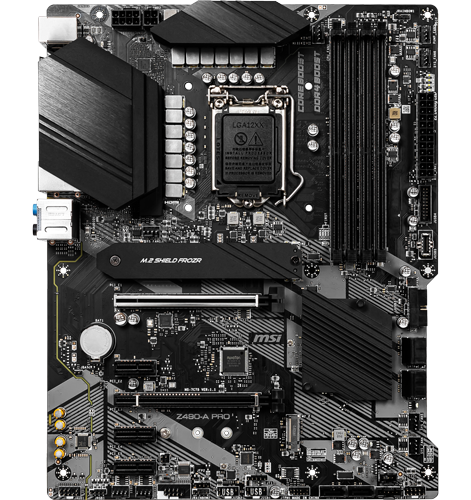

MPG Z490 A-Pro 10th Generation Intel ATX Motherboard from MSI

Go Pro with PRO Series Introducing the all new MPG Z490 A-PRO Motherboard from MSI. The PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

Special Features of the Z490 A-pro

4K Recording
down

Core Boost Technology8+4 pin CPU power connectors and optimized power circuits let Z490-A PRO unleash maximum performance.

up

Digital
PWM
A selection of the highest quality power delivery components lets the system run reliably even under extreme conditions.

up

6 layer
PCB
6 layer PCB improves signal transmission for high performance capabilities across the motherboard.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

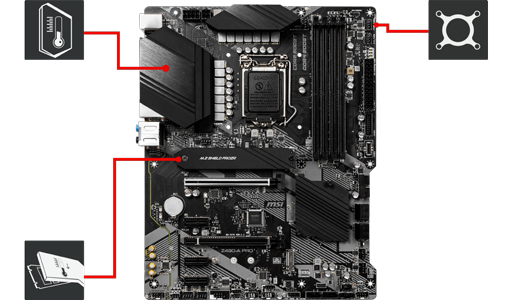

Premium Thermal Solution

4K Recording
down

Extended HeatsinkLarger heatsink design for cooling and performance.

up

M.2 Shield FrozrSustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.

up

Pump Fan SupportControl watercooling pump speeds and optimise flowrate and noise control.

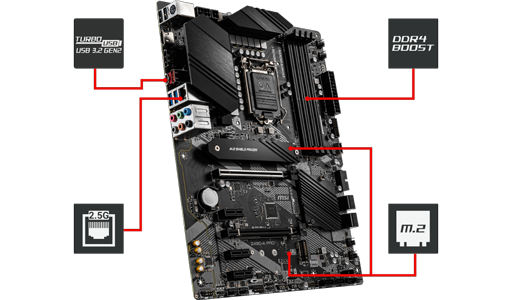

Next Generation Connectivity with MSI

4K Recording
down

Turbo USBFeaturing the TURBO USB 3.2 GEN 2 10Gbps, with reversible Type-C connector.

up

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

DDR4 BoostThe memory circuit design has been optimized on a reserved section of the motherboard fully isolated from any other circuit.

up

Turbo M.2With 2 x M.2 slots . Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Protect your Sensitive Components During Installation and Beyond

4K Recording

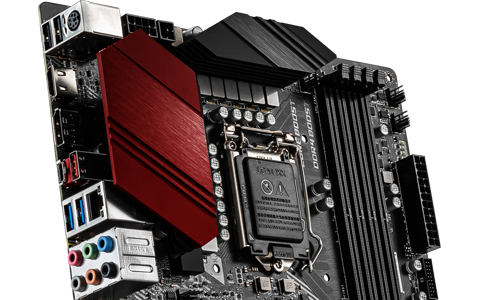

Extended Heatsink The MSI Z490 A-PRO features an all-metal extended heatsink cover enlarges the heat dissipation surface allowing the CPU power system to reliably drive even high-end processors.

Experience Core Boost

Z390 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI Z490 motherboards are optimized to maximise the performance on the 10th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

Z490 ACE Cooling features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR Z490-A PRO supports AMD® CrossFire™ multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.

Overclock Your System in One Second!

MSI Z390 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition Z490-A PRO
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) N/A
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2 PCIe
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 6 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Analog Surround Audio Header
  • 2 x M.2 Connector
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN107064
Model Number MSI Z490-A PRO
GTIN 4719072722340
