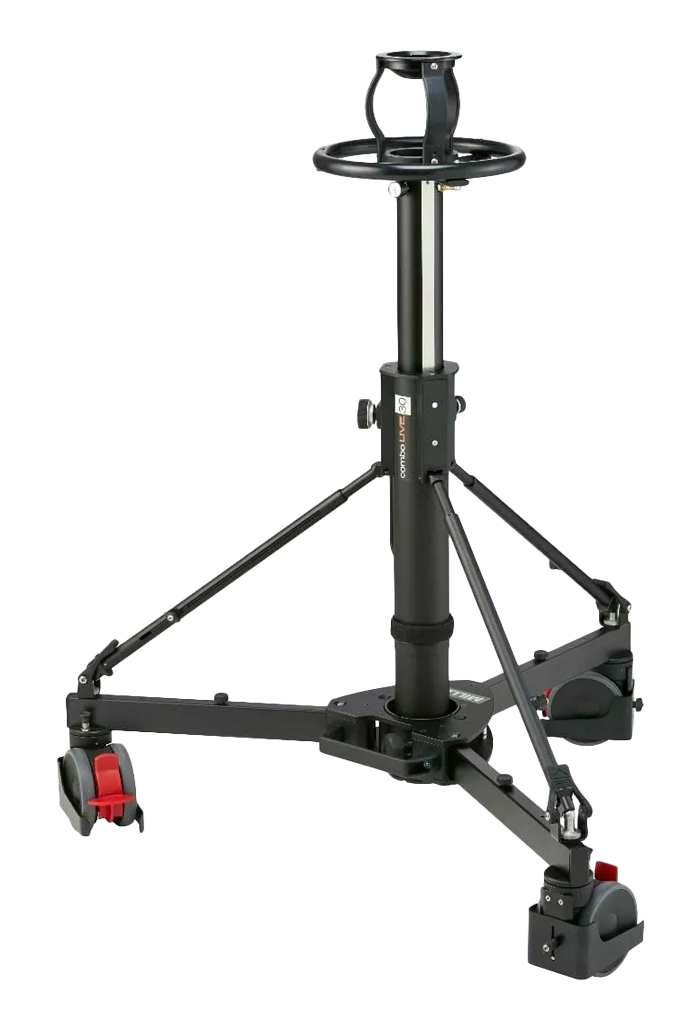

Miller CX14 Combo Live 30 Pedestal

Light Weight And SturdyThe CX14 Combo Live 30 pedestal, provides excellent portability while maintaining a lightweight design. It utilizes an air adjustable column system to ensure optimal camera balance. The pedestal offers a height range of 972mm (38.2") to 1537mm (60.5") and operates with precise, smooth, and low noise motion, allowing for a 450mm (17.7") elevation stroke. It is capable of supporting payloads ranging from 0-14kg (0-30.9lbs).

Designed to meet the needs of creative professionals, the CX14 pedestal offers 5 + 0 selectable pan-tilt fluid drag positions. It is suitable for a wide range of cameras, from professional broadcast equipment to DSLRs. The pedestal features dual ball bearing wheels equipped with axial brakes, ensuring even and effortless movement. Additionally, it offers multiple wheel locking positions for both linear and radius dolly tracking.

Thanks to its robust construction, the CX14 Combo Live 30 pedestal provides maximum stability. It incorporates user-friendly features that are reliable and easy to operate.

Key Features • 5 selectable positions of fluid pan and tilt drag + 0.
• 16 position CB Plus™ counterbalance system.
• Wide payload range 0-14.0kg (0-30.9lbs).
• Wide height range 972mm (38.2”) up to 1537mm (60.5”).
• Precise, smooth and low noise In-shot column with 450mm (17.7”) stroke.
• Air adjustable column system for quick payload balancing.
• Independent dolly wheel axle brake system eliminates wheel tyre indents.
• Multiple wheel positions for linear or radius dolly tracking.
• 125mm (4.9”) dual ball bearing wheels for quick swivel-turn action.
• Centre hub locking column with adjustable spider arm supports.
• Steering wheel diameter 294mm (11.6”).
• Dolly tracking width 970mm (38.2”).
