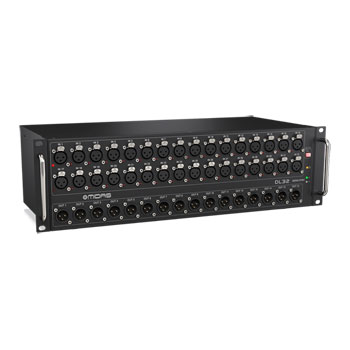

Midas DL32 - 32 Input, 16 Output Stage Box with 32 Midas Microphone Preamplifiers, ULTRANET and ADAT
Midas - DL32, 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps
32-Input / 16-Output Stage Box with 32 Midas Mic Preamps
Midas - DL32
MIDAS - The Legend in Sound QualityDigital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.

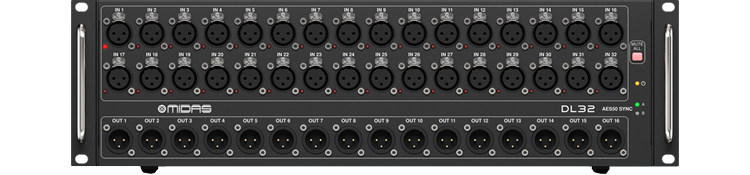

The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.
32 x 16Channels
USB, EthernetComputer Connectivity
In/OutMIDI I/O
at a glance
• 32 Midas PRO Mic Preamps with +48V
•
16 Low Impedance Line Level Outputs
• Ultranet Monitoring System Connectivity
•
Dual ADAT Outputs
Massive Connectivity

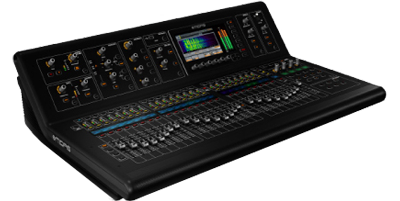

connectivity for up to 64 mic/line inputsWhen used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to Turbosound iQ Series loudspeakers and the Behringer POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers.

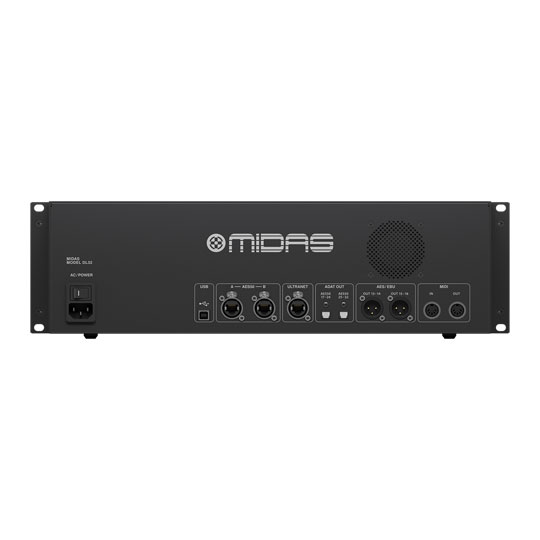

Midas also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.
The Tech Spec
Features | Specification | Microphone Inputs | 32 XLR male 3-pin, Neutrik + 48 V phantom powered |
---|---|
Outputs (Analog) | 16 XLR female 3-pin, Neutrik Dual ADAT |
Preamps | 32 Midas PRO |
MIDI I/O | For directional communication |
Monitoring | Ultranet personal monitoring system |
Headphones | 1 x 1/4" / 6.3 mm TRS |
Network | AES ports with Klark Teknik SuperMAC technology |
Network Cables | CAT5/5e for up to 328' / 100 m |
Power Supply | Auto-ranging universal switch-mode power supply |
Package Weight | 14.7 lb |
Box Dimensions (LxWxH) | 21.5 x 12.5 x 8.5" |
