Lian Li EDGE GOLD USB & Fan Hub Black
Lian Li EDGE GOLD USB Fan Hub, 6x 4-pin PWM, 4x 9-pin Internal USB, 8-Pin PCIe, Magnetic Mount, Black
Email me when the availability or price changes
EDGE GOLD Internal USB & PWM Fan Hub PSU Accessory From Lian-Li
the world's first independent PSU USB/FAN hubThe world’s first detachable PSU-powered USB and fan hub is designed primarily for Lian Li EDGE GOLD and EDGE PSUs, but it’s also fully compatible with non-Lian Li power supplies when connected via PCIe 8-pin instead of the direct mount. This innovative hub allows users to expand their system with ease, featuring six 4-pin PWM fan connectors, each supporting up to 2A, making it perfect for managing multiple fans or controlling RGB components. It also includes four 9-pin USB ports, handling up to 2.5A, enabling the connection and powering of peripherals like UNI Fans, STRIMER controllers, and more. With the flexibility to connect directly to your PSU or detach and mount it anywhere in your case, this hub provides power and control for your Lian Li setup, or any compatible system, while keeping cables neat and your build clean.
NOTE: The images below are used for illustration purposes. Refer to the top image for the correct product colour.
Step Up Your Game Further
OPTION 1 - Direct AttachmentThe hub attaches directly to the upright connector on the raised section of an EDGE or EDGE GOLD PSU. This method eliminates the need for additional mounting hardware and keeps cabling to a minimum. By drawing power straight from the PSU, the hub delivers reliable operation while maintaining a neat and cohesive setup within the case.
This method can only work with a Lian Li EDGE or EDGE GOLD Power Supply.
OPTION 2 - Free AttachmentFor greater flexibility, the hub can be detached and mounted elsewhere in the case using its magnetic backing. Once positioned, it draws power via the included PCIe 8-pin connector, operating independently of the PSU’s upright connector. This approach supports custom layouts and is ideal for managing devices or components that benefit from close proximity to the hub.
This method is supported to work with most power supplies, including non-Lian Li models.
Innovative, Excellent Design

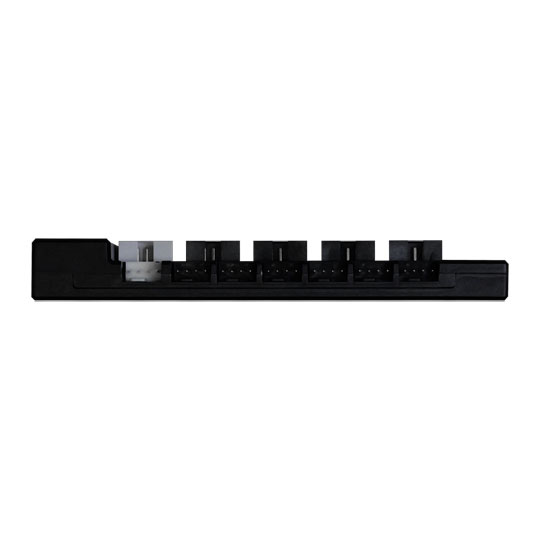

1. PWM Fan SectionThe top half of the accessory features six extended 4-pin PWM fan connectors, each capable of supporting up to 2A, to suit the demand of multi-fan configurations. This makes it a game-changer for cooling arrangements.
2. USB SectionThe other half The hub supports four internal 9-pin USB ports, totalling up to eight downstream connections. These are perfect for RGB controllers and USB devices, with a combined output of 2.5A.
3. Direct EDGE ConnectorUpright connector which clicks straight onto an EDGE or EDGE GOLD PSU.

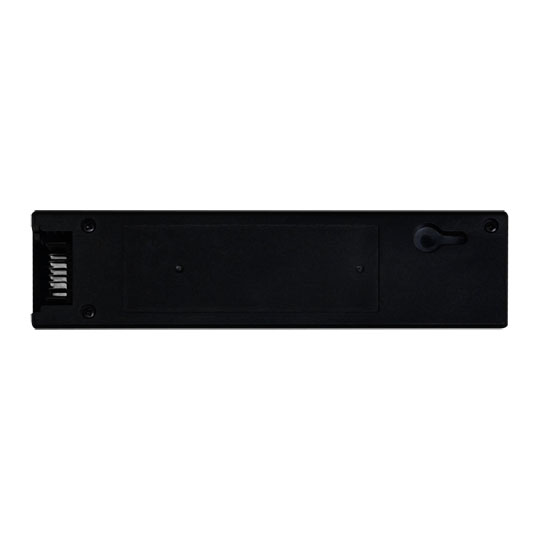

4. Magnetic Back PanelAllows for easy placement and accessibility from within your chassis.
5. Independant PCIe ConnectionIf you've gone for the magnetic option, connect to the hub via PCIe 8-Pin.
Your Routing, Your Rules
9-PIN USB CONNECTORSThe hub provides two versatile options for connecting to the motherboard’s USB signal, making it adaptable to different setups. It includes a 9-pin internal USB to 9-pin internal USB cable for a direct internal connection, though this may affect the availability of some USB ports on the motherboard’s rear I/O panel. Alternatively, a 9-pin USB to USB 2.0 Type-A cable is included, allowing you to route the connection externally through the case’s ventilation grates to the rear I/O panel, preserving all internal USB functionality.

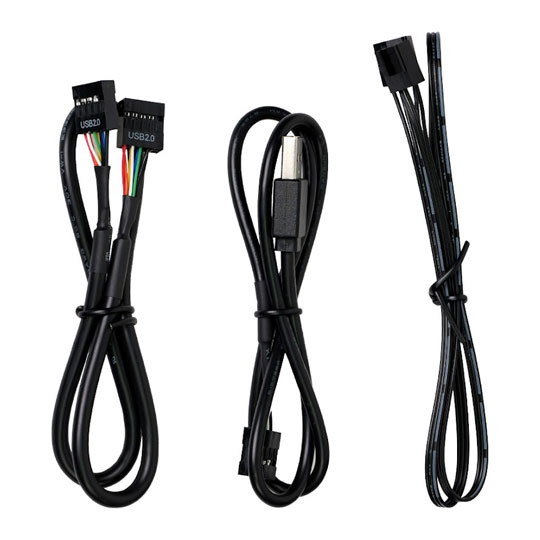

1x Internal 9-Pin USB to Internal 9-Pin USB
1x Internal 9-Pin USB to USB 2.0 Type-A
Comprehensive Coverage
2 Years WarrantyLian Li provide 2 years' warranty for this USB & Fan hub, meaning you can start your built without breaking a sweat.
