K105F Signage Media Player
The K105F is a compact, fanless Windows signage media player powered by an Intel Core i5-1235U processor with Intel Iris Xe Graphics, providing the performance needed for demanding digital signage, information displays, kiosks and multimedia applications. Designed for continuous 24/7 operation, its fanless construction enables quiet, low-maintenance operation while supporting up to 64GB of DDR4 memory and up to 4TB of M.2 NVMe SSD storage.
With support for three simultaneous 4K displays at 60Hz, or a single 8K display at 30Hz through DisplayPort 1.4, the K105F provides flexible multi-display output from a single compact system. Dual LAN connectivity, Wi-Fi 6, Bluetooth 5.2, USB connectivity and dual RS232 ports provide extensive options for networking, peripherals and commercial signage equipment, while Windows 11 Home, Pro and Enterprise IoT support allows the player to integrate into a wide range of deployment environments.
Silent, Reliable Operation for Continuous Deployment
The fanless design eliminates the need for a mechanical cooling fan, helping to reduce noise and minimise moving parts for installations where the system is expected to operate continuously. The K105F is designed for 24/7 use and incorporates watchdog functionality that can automatically restart the system following a crash or unrecoverable error, helping signage remain operational without manual intervention.
Drive Three 4K Displays from One Player

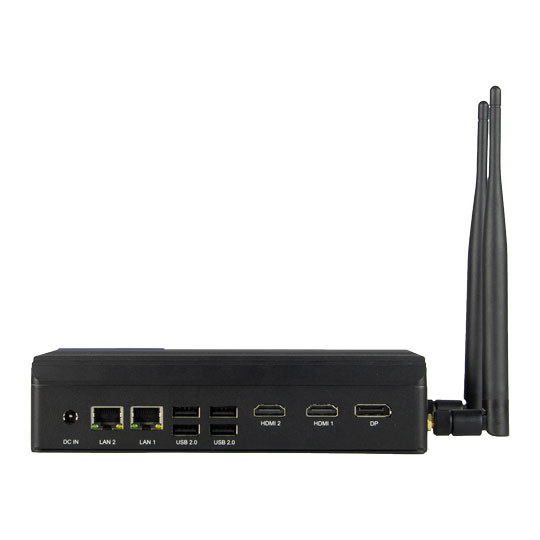

Intel Iris Xe Graphics provides flexible multi-display capability through two HDMI 2.0 outputs and one DisplayPort 1.4 output. The K105F can drive up to three 3840 × 2160 displays at 60Hz, making it suitable for multi-screen menus, information boards, dashboards, video walls and other digital signage installations. DisplayPort also supports resolutions up to 5120 × 2880 at 60Hz and 7680 × 4320 at 30Hz for high-resolution single-display applications.
Flexible Processing and Storage
The Intel Core i5-1235U combines 2 performance cores and 8 efficient cores with a maximum boost frequency of 4.4GHz, while two SODIMM slots support up to 64GB of DDR4 memory. Storage is provided through an M.2 interface supporting NVMe SSDs, with VeryPC configurations available with up to 4TB of storage for locally hosted signage content, applications and operating system files.
Extensive Connectivity for Signage Systems

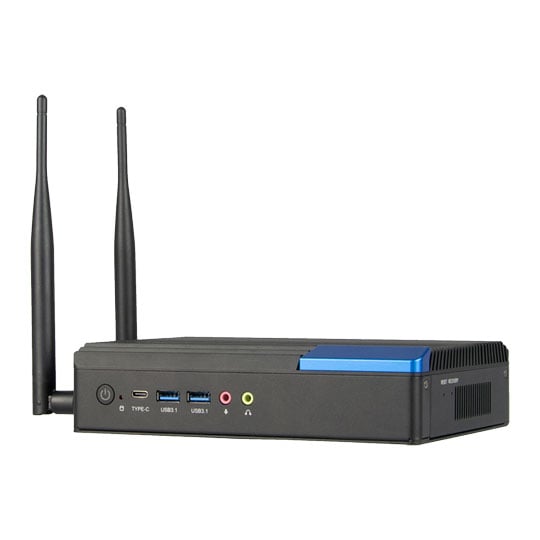

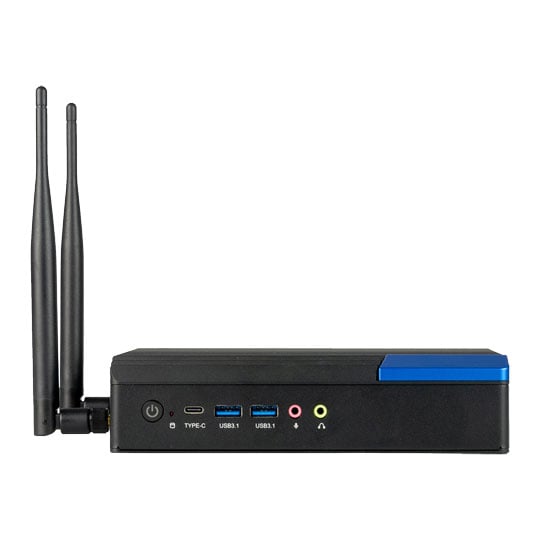

The K105F provides a broad selection of connections for displays, storage, peripherals and control equipment. Front connectivity includes one USB 3.1 Type-C port, two USB 3.1 Type-A ports and dedicated 3.5mm microphone and headphone connections, while four additional USB 2.0 Type-A ports are available at the rear. Two RJ45 LAN ports provide dual wired networking, with Wi-Fi 6 and Bluetooth 5.2 also available for wireless connectivity.
Built for Commercial Integration

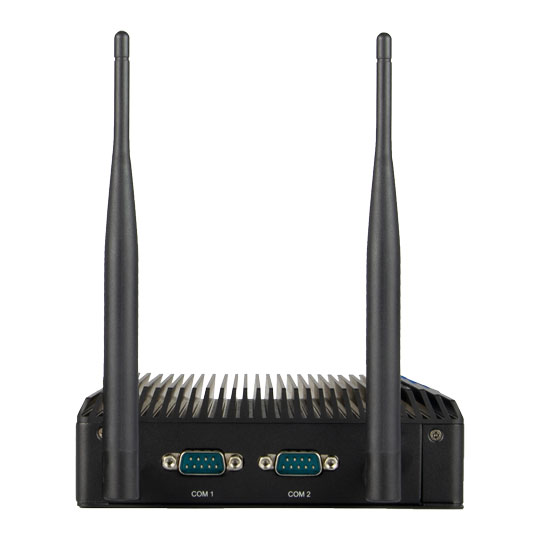

Two DB9 RS232 ports provide connectivity for compatible commercial and industrial peripherals, while dual LAN connectivity can support network segregation or redundant network configurations. TPM 2.0 hardware security support provides an additional layer of platform security, making the K105F well suited to managed commercial deployments where reliable connectivity and controlled system access are important.
Flexible Windows and Linux Deployment
The K105F supports Windows 11 Home, Windows 11 Pro and Windows 11 Enterprise IoT, with configurations also available without an operating system for custom deployments. Linux is supported as an alternative operating system, allowing the player to be integrated with a wider range of signage platforms and specialised software environments.
• Intel Core i5-1235U processor with 10 cores and 12 threads.
• Intel Iris Xe Graphics.
• Up to 64GB DDR4 memory.
• Up to 4TB M.2 NVMe SSD storage.
• Three 4K displays at 60Hz.
• DisplayPort 1.4 supports up to 8K at 30Hz.
• Fanless design for quiet 24/7 operation.
• Dual 2.5Gb Ethernet connectivity.
• Wi-Fi 6 and Bluetooth 5.2.
• Two RS232 ports for commercial peripherals.
• TPM 2.0 security support.
• Windows 11 Home, Pro and Enterprise IoT support.
