JWIPC H125 4K Intel N150 DDR4 Windows 11 Media Player

JWIPC H125 Signage Media Player

The H125 is a compact, fanless Windows signage media player built around an Intel N150 processor and Intel Graphics, providing an efficient platform for digital signage, information displays, kiosks and multimedia applications. Supporting up to 16GB of DDR4 memory and up to 4TB of M.2 NVMe SSD storage, the H125 combines flexible configuration with a compact footprint and is designed for continuous 24/7 operation.

With support for three simultaneous 4K displays at 60Hz, the H125 can drive multiple screens from a single player, making it suitable for menu boards, video walls, information displays and other multi-screen signage installations. Wi-Fi 6, Gigabit Ethernet, Bluetooth 5.2, USB connectivity and RS232 provide a broad range of connection options, while Windows 11 Home, Pro and Enterprise IoT support allows the player to integrate with a variety of signage software and deployment environments.

Silent Operation for Continuous Deployment

The fanless design eliminates the need for a mechanical cooling fan, helping the H125 operate quietly while reducing moving parts and maintenance requirements. Rated for 24/7 use, the system is designed for long-running signage deployments, with a watchdog function capable of automatically rebooting the player following a crash or unrecoverable error.

Drive Three 4K Displays at 60Hz

The H125 provides two HDMI 2.0 outputs and one DisplayPort 1.4 output, allowing three displays to be driven simultaneously at up to 3840 × 2160 resolution and 60Hz. This makes it possible to operate multiple screens from a single compact media player, helping simplify installations where separate content channels, menu boards, video walls or information displays are required.

Efficient Processing with Flexible Storage

The Intel N150 processor provides four cores and four threads with a 6W TDP, while the system supports up to 16GB of DDR4 memory running at 3200MHz. Storage can be configured with up to a 4TB M.2 NVMe SSD, providing ample capacity for operating system files, signage applications and locally stored multimedia content.

Extensive Connectivity in a Compact Design

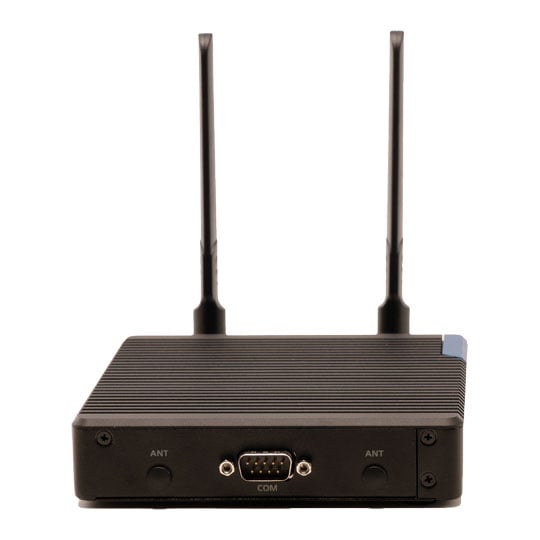

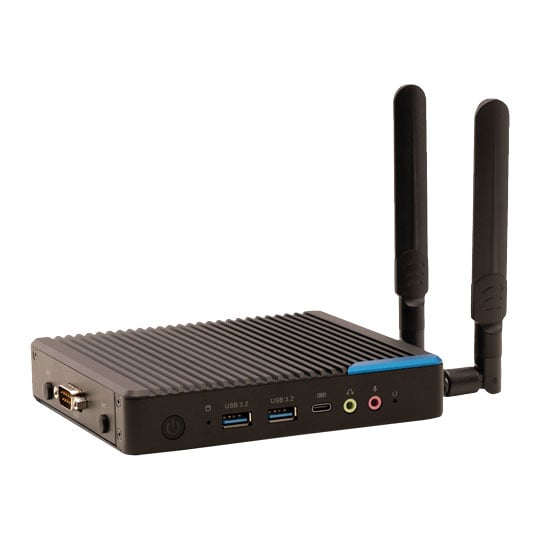

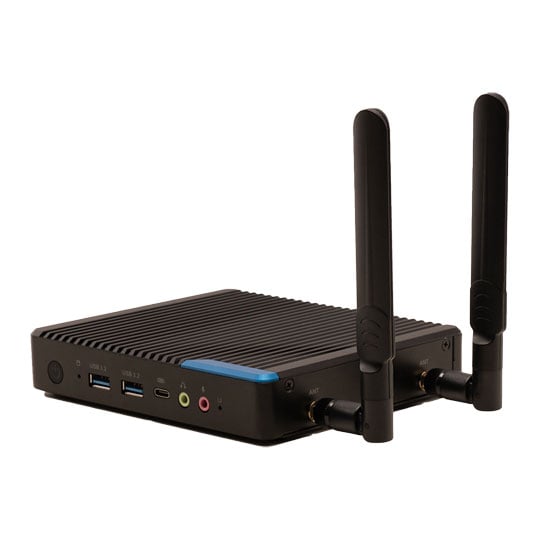

The H125 combines modern high-speed connectivity with interfaces suited to commercial installations. Front I/O includes one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 2 Type-A ports and separate 3.5mm microphone and headphone connections, while the rear provides two USB 2.0 Type-A ports, two HDMI 2.0 outputs, DisplayPort 1.4 and Gigabit Ethernet. A DB9 RS232 port provides connectivity for compatible serial equipment and peripherals.

Reliable Scheduling and Automated Recovery

RTC power scheduling allows the H125 to be configured to switch on and off at specific times, helping automate operation around opening hours or scheduled content. Combined with watchdog functionality and support for automatic power-on, these features help reduce the need for manual intervention during long-term signage deployments.

Flexible Windows Deployment

The H125 supports Windows 11 Home, Windows 11 Pro and Windows 11 Enterprise IoT, while an optional no-OS configuration allows customers to deploy their own operating system image. TPM 2.0 provides hardware-based security functionality, and Wi-Fi 6 and Bluetooth 5.2 offer wireless connectivity alongside the integrated Gigabit LAN interface.

Compact Installation with VESA Mounting

Measuring just 151 × 128 × 26mm, the H125 is designed to fit into space-constrained signage installations while its fanless construction allows it to operate without the additional clearance required for a conventional fan-cooled system. A VESA mounting bracket is included, providing a convenient mounting option behind compatible displays or within commercial signage installations.

• Intel N150 quad-core processor.
• Up to 16GB DDR4 3200MHz memory.
• Up to 4TB M.2 NVMe SSD storage.
• Triple 4K display support at 60Hz.
• 2 × HDMI 2.0 and 1 × DisplayPort 1.4.
• Fanless design rated for 24/7 operation.
• Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2.
• 1 × DB9 RS232 serial port.
• RTC power scheduling and watchdog support.
• TPM 2.0 hardware security.
• Windows 11 Home, Pro and Enterprise IoT support.
• 151 × 128 × 26mm compact chassis.
