Scan code: LN24813 Manufacturer code: NU-0528i

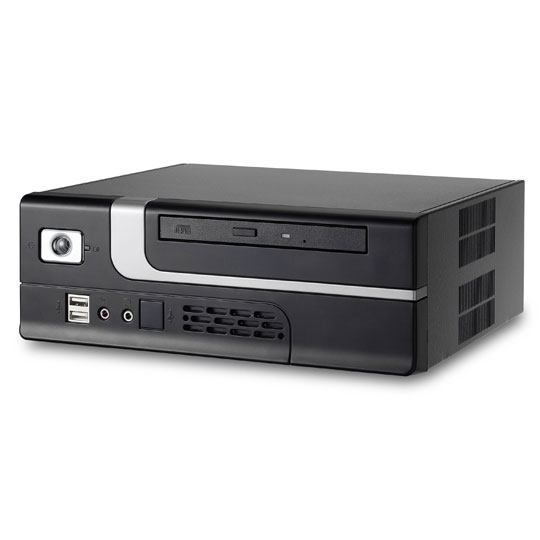

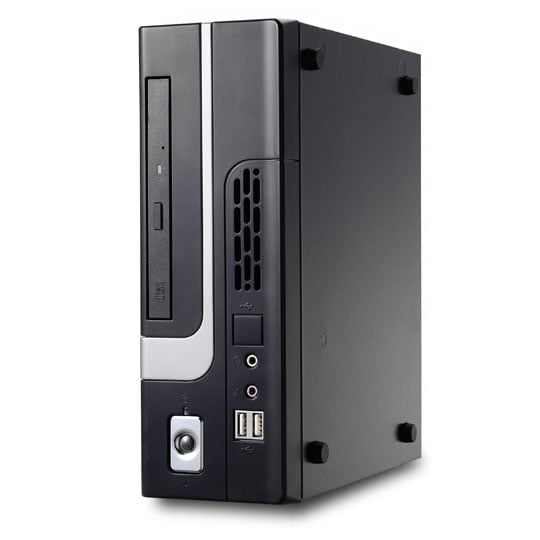

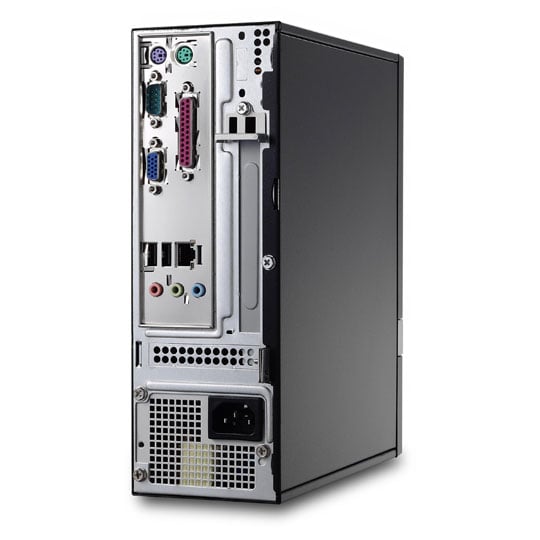

JouJye NU-0528i-B Desktop/Tower Mini ITX Case with 250W PSU

Jou-Jye NU-0528i-B mini-ITX Case, Black/Silver, with 250W FlexATX PSU *VESA Mount NOT included

Thumbnail 1 : JouJye NU-0528i-B Desktop/Tower Mini ITX Case with 250W PSU Thumbnail 2 : JouJye NU-0528i-B Desktop/Tower Mini ITX Case with 250W PSU Thumbnail 3 : JouJye NU-0528i-B Desktop/Tower Mini ITX Case with 250W PSU Thumbnail 4 : JouJye NU-0528i-B Desktop/Tower Mini ITX Case with 250W PSU
Scan code: LN24813 Manufacturer code: NU-0528i
£71.99Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview *Please note the VESA kit is NOT included if you require the VESA Kit please see LN35759

• A perfect thin client solution for low cost, low power consumption, and compact systems using Intel desktop boards.
• Thermally advantaged mini ITX slim chassis with internal AC power supply or external AC adaptor Card Reader (at front panel) with sticker, support SD/MS 2 type memory cards (Optional)
• Supports eSATA (at rear panel)
• Various configurations of drives and add-on cards to fit your needs Features Compatible Motherboard: mini ITX form factor (6.75 x 6.75 in.)
Power Supply: 200W 80Plus or 250W 80Plus Bronze or external AC Power Adapter w / internal DC to DC 80W power board
Ventilation: One 60x20mm cooling fan (Optional)
Dimensions (W x H x D): 88 x 254 x 218.8 mm
Weight (without power supply) : 3.2 kg
Specifications
Core Chassis Specifications
Case Edition
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Line In
  • 2 x USB 2.0
Drive Bays
  • 2 x 2.5" Internal
  • 1 x Slim Optical
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays 1 x 60mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included) 250 W
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 88 x 254 x 218.8 (WxHxD mm)
Weight 3.2 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
Loading Please Wait

Please wait . . .

Reviews
Jou-Jye NU-0528i-B mini-ITX Case, Black/Silver, with 250W FlexATX PSU *VESA Mount NOT included is rated 4.0 out of 5 by 1.

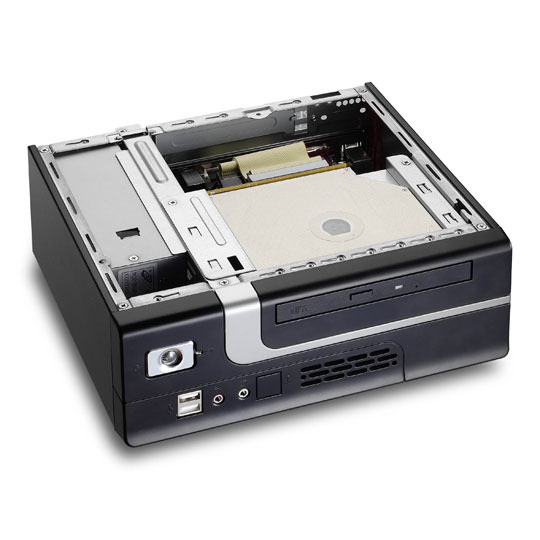

Rated 4 out of 5 by from Good little case Case comes with: 1 x 2.5inch mounting against rear left side of case (between case and power supply). This will fit any thickness drive 1 x 2.5inch mounting under the slimline drive bay 1 x slimline drive bay. If installing a slimline DVD then a adapter cable is required (such as AKASA AK-CB050 SATA Cable for Slimline Optical Drives (SATA+Molex to Mini SATA Power & Data) A standard height CPU fan/heatsink (as on Intel Pentium G3420 roughly 50mm) will fit if no drive is installed in the 2.5inch mounting under the slimline drive. If you want to install a drive in this bay then you will need a low profile CPU cooler. I ended up mounting first drive in rear left position and a second drive taped to the side of the power supply between the PSU and motherboard due to the above - the PSU power lead was long enough for the single 2 x SATA power lead to connect to both drives. Not sure the power lead would be long enough if mounting under slimline and at rear left - so a molex to sata adapter would be a good idea. There is no card reader in this case
Date published: 2013-12-29
  • y_2018, m_9, d_21, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_24813, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Which power supply is included with this? Do you have 3.5 HHD bracket for this case?

Asked by: Abimanue
Hello, Power supply is 250W 80Plus Bronze FlexATX, the case only comes with 2x 2.5" drives no brackets are available. Regards
Answered by: LizN
Date published: 2016-08-12
