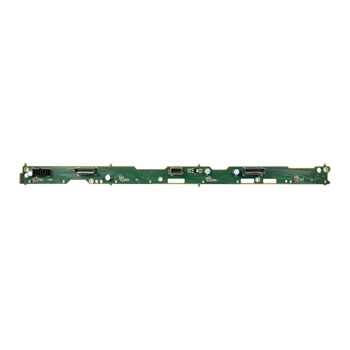

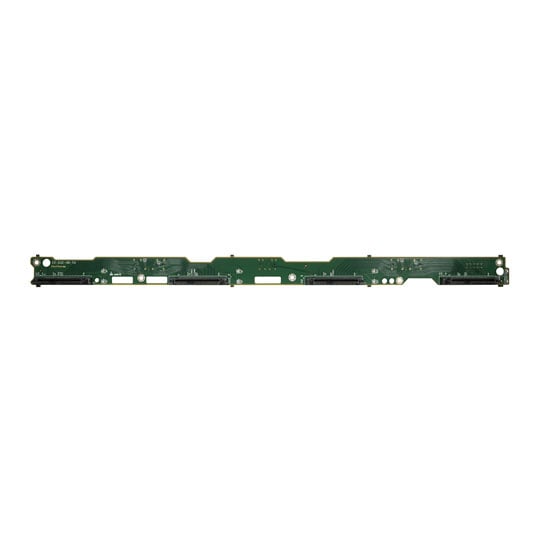

Inter-Tech SU-2 Backplane
If your server or workstation needs both high-speed performance and versatile storage options, the Inter-Tech SU-2 Backplane is built to keep up. Supporting NVMe, SAS, and SATA drives across four hot-swappable ports, it simplifies mixed drive configurations by combining them into a single, compact solution. Ideal for everything from virtualisation environments to demanding media workflows, the SU-2 integrates seamlessly into your system, offering hassle-free installation and reliable throughput.
Future Upgrades for Serious Storage
The SU-2 makes future upgrades simple. Support for U.2 and U.3 NVMe drives alongside standard 2.5" and 3.5" SAS/SATA options means you're never locked into a single interface. It’s compact, bootable, and ready to integrate into a range of Inter-Tech chassis, from 1U to full 4U enclosures. In short, it’s a small piece of hardware that makes a big difference in serious storage environments.
Features
• Compact 4-bay backplane which supports a mix of NVMe, SAS, and SATA drives with high-speed data transfer and flexible power and host connections.
Form Factor Compatibility: 1U to 4U Inter-Tech server cases including 1U-1404, 2U-2404/2408/2412, 3U-3416, 4U-4408/4416/4420/4424.
Drive Support: Up to 4x NVMe (U.2/U.3), SAS or SATA SSDs/HDDs (2.5" or 3.5").
Interface Type: 4x U.2/U.3/SAS/SATA (SFF-8639).
Host Connections: 2x SFF-8654-8i (NVMe), 1x SFF-8654-4i (SAS/SATA).

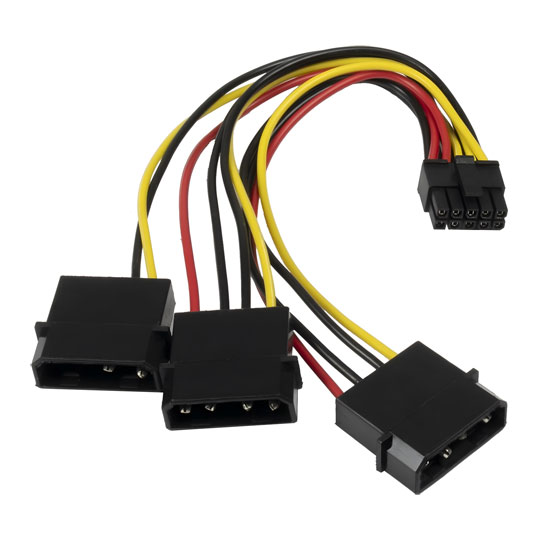

Power Input: 1x Power (adapter to 3x Molex included).
Data Transfer Rates: Up to 6Gbps (SATA), 12Gbps (SAS), 16Gbps (NVMe).
Bootable: Yes
Weight: 0.115 kg
