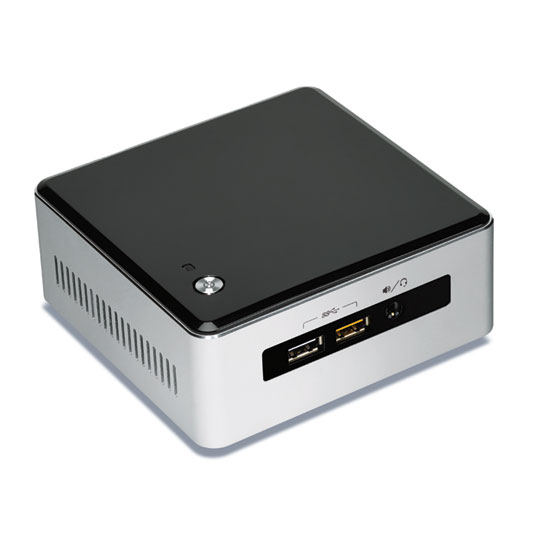

NUC5I7RYHR Intel i7 Dual Core barebone NUC compact Mini PC

Intel NUC Rock Canyon i7-5557U Dual Core 3.1GHz, DDR3L, M.2/SATA3 6Gb/s, 2.5" Internal Bay, Iris Graphics 6100, Barebone

Scan code: LN63730 Manufacturer code: BOXNUC5I7RYH Request call
Pay on Scan Finance with a 10% deposit from just £10.46 / month (APR 15.9%)
3xs Approved High End
Delivery options £5.48 By DPD On 18th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Core i7 Barebone Intel NUC with Super Fast 802.11ac WiFi & Bluetooth 4.0 Connectivity Built-in

Equipped with an Intel® 5th Gen Core i7-5557U processor, Rock Canyon i7 is the highest performing NUC available on the market today. The Core i7 processor enables you to create the reliable, powerful custom solutions and usages your clients are demanding. This NUC also features Intel Iris™ Graphics 6100, making this product perfect for immersive gaming and applications that leverage the GPU, such as video and photo-editing suites.

• Immersive gaming performance
• Impressive Video and photo editing
• Perfect for Home Theater usage

Just add your choice of Low Voltage DDR3L RAM, an M.2/SATA III 2.5" Solid State/Hard Drive & Windows 8.1 and you'll be ready to connect your completed Intel NUC to any compatible Keyboard, Mouse, Monitor/TV to work, play or relax with your new PC.

Note: This is a Barebone NUC Kit. RAM Memory, SSD/HDD Storage & Operating System (Windows) are not included. Features • Ultra Fast Dual Core Intel i7 Hyper-Threaded Processor
• Support for up to Massive 16GB of RAM Memory (not included, sold separately)
• Intel Iris Graphics 6100 keeps video playback & gameplay smooth
• mini HDMI & mini DisplayPort aloow connections to most modern TVs/Monitors
• Upto 7.1 surround audio via Mini HDMI and Mini DisplayPort
• 4x SuperSpeed USB 3.0 ports
• Support for M.2 & 2.5" SATA3 SSDs/HDDs (not included, sold separately)
• Gigabit Ethernet Port & Built-in Wireless-AC (WiFi) & Bluetooth 4.0 Connectivity
• VESA Mountable

Note: Barebone NUCs accept Low Voltage 1.35v DDR3L SO-DIMM Modules ONLY.
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i7
Core Dual Core
No. of Threads 4
CPU Model i7-5557U
Clock Speed 3.1 GHz
Burst Frequency 3,4 GHz
CPU Cooler
CPU Socket Integrated CPU
Chipset Integrated Intel
Motherboard Form Factor
Memory Type DDR3L SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3L - 1333
  • DDR3L - 1600
Max. Memory Capacity 16GB (2x8GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Graphics 6100
Discrete GPU No
GPU Chipset
GPU Cores
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 1100 MHz
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution 3840x2160 (Ultra HD)
Graphics Interface On-board
Expansion Slots N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal
RAID Support N/A
Internal I/O
  • 1 x M.2
  • 1 x NFC Header
  • 1 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Infrared Sensor
  • 2 x USB 3.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Mini DisplayPort 1.2
  • 1 x Mini HDMI 1.4a
  • 2 x USB 3.0
  • 1 x WiFi 802.11ac/BT4.0 Module
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Silver/ Black
Dimensions 115 x 48.7 x 111 mm (mm WxHxD)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
0870 607 2439
Customers also bought
Intel NUC Rock Canyon i7-5557U Dual Core 3.1GHz, DDR3L, M.2/SATA3 6Gb/s, 2.5" Internal Bay, Iris Graphics 6100, Barebone is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Best suited for low powered always-on servers Roughly 1/3 the width of MacMini and slightly taller. I'm using it to run various unattended services like VCS and Wiki. Had "0" issues installing Debian 8 and its responsive with Gnome3 desktop. I would highly recommend it as low-powered desktop, if you are in the market for one.
Date published: 2015-08-15
Rated 5 out of 5 by from Excellent space saver computer. I have complemented my Intel NUC i7-5557U with 8GB RAM Crucial and 250GB SSD also by Crucial. The Windows Experience Index comes out at 7.0 with i7 CPU being the slowest in this configuration!! Computer is very very fast. From pushing the start button to functional internet through Chrome browser is 11 seconds. Tabs with web pages are opening instantly allowing me to work, listen to music and to run some apps in the background without any delay. Haven't tried it on games though. Beware: do not install drivers for USB 3.0 if you're using keyboard and the mouse 2.0. It will disable your access to Windows after restart (It can be changed in 'Bios' later but not easy to find). Computer looks nice on the desk next to the monitor (small form factor and good built quality). Not too noisy. I can recommend this computer. You won't be disappointed for sure if you're not a regular gamer.
Date published: 2015-08-01
  • y_2017, m_12, d_14, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_63730, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does it support dual / multiple monitors?

Asked by: TaulPaul
Hello, This will support dual monitor on the MiniHDMI and MiniDisplayPort connectors. Regards,
Answered by: LizN
Date published: 2016-12-12

does it come with a preinstalled OS?

I want to use Linux, probably Ubuntu as the ONLY operating system. Is this possible. Does the system come with a preinstalled OS?
Asked by: PurplPilot
Hello, The Operating System (along with RAM & SSD/HDD Storage) are not included in this product. Regards,
Answered by: LizN
Date published: 2017-01-31
