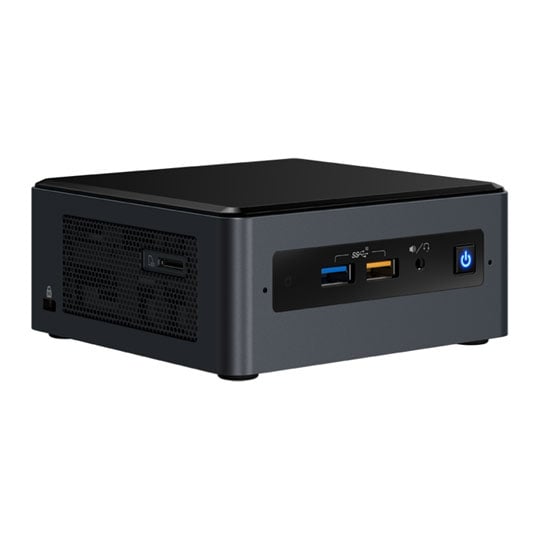

Intel Dual Core 8th Gen i3 Tall NUC Barebone Mini PC Kit

Intel NUC Kit, NUC8I3BEH, i3-8109U, DDR4, M.2, 2.5" SATA3, Iris Plus Graphics 655, USB 3.1 Gen2, Thunderbolt3, Barebone

Thumbnail 1 : Intel Dual Core 8th Gen i3 Tall NUC Barebone Mini PC Kit Thumbnail 2 : Intel Dual Core 8th Gen i3 Tall NUC Barebone Mini PC Kit Thumbnail 3 : Intel Dual Core 8th Gen i3 Tall NUC Barebone Mini PC Kit Thumbnail 4 : Intel Dual Core 8th Gen i3 Tall NUC Barebone Mini PC Kit
Scan code: LN91943 Manufacturer code: BOXNUC8I3BEH3
Was: £332.99
£256.99Item due on 12 October 2018
Pre order
From £12.34 / month (APR 14.9%)
Monthly Payment: £44.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £256.99
Total inc. interest: £267.56
Monthly Payment: £23.07
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £256.99
Total inc. interest: £276.86
Monthly Payment: £15.91
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £256.99
Total inc. interest: £286.33
Monthly Payment: £12.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £256.99
Total inc. interest: £296.01
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.42 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Intel® NUC Kit NUC8I3BEH: Go Small. Get Big
Get ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with 8th generation Intel® Core™ i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options to storage configurations, the benefit of building an Intel NUC kit is the ability to completely customize the kit for your specific usage. Whether working on presentations, word processing, or streaming media, the Intel® NUC8i3BEH Mini PC kit delivers the features people want—in a size that fits easily into any lifestyle and any room in the house.

The First Intel NUC Mini PC Kit with a Dual-Core 8th Generation Intel® Core™ i3 Processor
The Intel NUC8I3BEH Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel® NUC7i3BNH kits. Whether it’s built for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the Intel NUC8I3BEH Mini PC kit gives great visual immersion with Iris® Plus Graphics 655 and the unprecedented performance of Intel® Core™ processors.

By utilising the slightly taller Intel NUC Chassis, the NUC8i3BEH also has room for a 2.5" HDD and is Intel® Optane™ memory ready. By coupling a 2.5" HDD and Intel Optane memory, performance improves dramatically with up to 1.4x faster media loading.

Work Like a Boss with Thunderbolt™ 3, USB 3.1 Gen2, and 4K Ultra HD
The Intel NUC Mini PC kits have chassis that are connectivity powerhouses; coming with Thunderbolt™ 3 which supports up to 40 GBps of data transfer, four USB 3.1 Gen2 Type-A ports, & two additional USB ports via 1x4 internal headers. There’s also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD—with an HDMI 2.0a port and DisplayPort 1.2 via USB-C—so images or work can be shown across three screens without losing fidelity.

Think You Know What Small Can Do? Think Again
In a footprint that’s almost zero—especially when compared with a tower—the Intel NUC Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere—from behind a display to tucked discretely in an entertainment center. Moreover, with improved cooling, fan noise is minimal—which means a quieter experience no matter where the Intel NUC is positioned.

The Intel® NUC: Who Says Small Isn’t Powerful? Features • 8th generation Intel® Core™ i3-8109U processor.
• Iris® Plus Graphics 655.
• Two DDR4 SO-DIMM sockets (up to 32 GB, 2400 MHz).
• 1x SATA3 port for connection to 2.5" HDD or SSD.
• M.2 slot with flexible support for a 42 or 80 mm M.2 SSD.
• Intel® Optane™ memory ready (up to 32 GB).
• Intel® Dual Band Wireless-AC 9560 and Bluetooth 5.0.
• Back panel DC power connector (12–19V).
• HDMI 2.0a display port supporting 8-channel audio (7.1 surround sound).
• Intel® Gigabit LAN.
• Two USB 3.1 Gen2 Type-A ports on the back panel.
• Thunderbolt™ 3 USB Type-C port providing DisplayPort 1.2 or USB 3.1 Gen2.
• Kensington lock support.
• Support for user-replaceable third-party lids.
• Micro SD card slot.
• Consumer infrared sensor.
• Two USB 3.1 Gen2 Type-A ports (including one charging port) on the front panel.
• Front panel headphone/microphone jack.
• Front panel power button.
• Dual-array front microphones.
Specifications
Edition Intel NUC Kit NUC8i3BEH
Form Factor Intel NUC (Tall)
CPU Included Yes
CPU Type Intel Core i3
CPU Model 8109U
Architecture Coffee Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 3.0 GHz
Burst Frequency 3.6 GHz
CPU Cache 4MB
CPU Cooler Air Cooled
Max. TDP 28 W
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC8i3BEB
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included RAM Memory Not Included - Please Buy Separately
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Plus Graphics 655
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 48
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 1050 MHz
GPU Memory Size 128MB
GPU Memory Type eDRAM
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 4096x2304 (4K) @60Hz
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 2230 (Occupied by WiFi Card)
  • 1 x M.2, 2242/2280, PCIe 3.0/SATA
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type Storage Drive Not Included - Please Buy Separately
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
Backplane I/O
RAID Support RAID-0/RAID-1
Internal I/O
  • 1 x CEC Connector
  • 1 x Front Panel Connector
  • 1 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
Front Panel
  • 1 x Consumer Infrared Rx Sensor
  • 1 x HDD Activity LED
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-A (w/ Quick Charging)
Back Panel
  • 1 x DC-In Jack
  • 1 x HDMI 2.0a
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader (UHS-I)
  • 1 x RJ-45
  • 2 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C/Thunderbolt3
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Gunmetal
Dimensions 112 x 51 x 117 (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
