Scan code: LN89150 Manufacturer code: BOXNUC7PJYH3

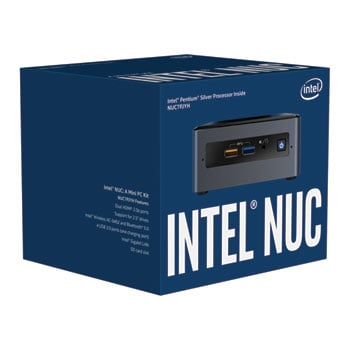

Intel Pentium Silver Quad Core NUC Kit NUC7PJYH Barebone Essential Mini PC

Intel NUC Kit, NUC7PJYH, 4-Core Pentium Silver J5005, DDR4 SO-DIMM, 2.5" SATA3 Bay, HD Graphics 605, 2x HDMI, Barebone

Free Bullguard Internet Security 2019 3 User/1 year Worth 19.99 - LN 90580
Thumbnail 1 : Intel Pentium Silver Quad Core NUC Kit NUC7PJYH Barebone Essential Mini PC Thumbnail 2 : Intel Pentium Silver Quad Core NUC Kit NUC7PJYH Barebone Essential Mini PC Thumbnail 3 : Intel Pentium Silver Quad Core NUC Kit NUC7PJYH Barebone Essential Mini PC Thumbnail 4 : Intel Pentium Silver Quad Core NUC Kit NUC7PJYH Barebone Essential Mini PC
Scan code: LN89150 Manufacturer code: BOXNUC7PJYH3
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Think You Know What Small Can Do? Think Again
Whether you or your customers are home consumers or small businesses, there is an Intel® NUC system to meet the needs of value-oriented buyers who need basic functionality at an affordable price—all in a small package that’s about 4 inches square.

The Intel® Pentium® Silver Processor: Intel’s Newest Processor Brand In An Intel® NUC Kit
Leveraging Intel’s most advanced 14nm process technology and optimizations, the Intel® NUC7PJYH is built with a quad-core Intel® Pentium® Silver processor. Whether you are customizing a kit for yourself or your customers the NUC kit is ideal for cost-conscious consumers who need a system for everyday computing.

The Features Customers Expect In A Customizable Kit
The Intel NUC7PJYH kit with a quad-core Intel® Pentium® Silver processor has the reliable performance you & your customers have come to expect from Intel, and is also perfect for everyday computing tasks, delivering the performance they need, including up to 55 percent better performance on Windows applications.

The NUC7PJYH kit also comes with dual Ultra HD 4K display support via two full-sized HDMI ports, consumer infrared, and a TOSLINK audio jack, they’ve got everything they need to stream media, play, or finish that last-minute presentation. In addition, with 3.2x better graphics, you can create robust entry-level digital signage at entry-level prices for your SMB customers.

Deep Customization Capabilities with Kits
The NUC7PJYH kit is designed for Windows 10, but you have the choice to install the OS, memory, and hard drive you want so you can create the exact systems that you or your customers need. From PC replacement to entry-level digital signage, you can build a Mini PC that does exactly what you or your customers need it to do.

With support for up to 8GB of DDR4 RAM, clients can stream media without stuttering and multitask with ease. There are four USB 3.0 ports including a USB charging port—which can let you generate additional peripheral sales for USB keyboards, mice, and printers.

Finally, internal headers, including AUX_PWR and CEC, allow for deep customization for PC-like embedded systems.

Intel® NUC: Performance Meets Value for Daily Productivity Features • Barebone NUC Kit ripe for customisation to you or your customer’s requirements.
• Quad Core Intel Pentium Processor J5005.
• Intel HD Graphics 605.
• Two DDR4 SO-DIMM sockets (up to 8GB, 2400 MHz).
• 1x SATA3 port for connection to 2.5" HDD or SSD.
• Intel Wireless-AC 9462 and Bluetooth v5.
• Two USB 2.0 internal headers.
• Kensington lock support.
• SD card slot.
• Two USB 3.0 ports (one charging).
• Front panel power button.
• Support for user-replaceable third-party lids.
• Back panel DC power connector (12—19V).
• Two USB 3.0 ports on the back panel.
• Two full-size HDMI 2.0a ports supporting 4K @60Hz & 8 channel audio (7.1 surround sound).
• Gigabit LAN.
Edition Intel NUC Kit NUC7PJYH
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Pentium Silver
CPU Model J5005
Architecture Gemini Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 4
Clock Speed 1.5 GHz
Burst Frequency 2.8 GHz
CPU Cache 4MB
CPU Cooler Air Cooled
Max. TDP 10 W
CPU Socket Integrated CPU
Chipset System-on-Chip
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 8GB (2x4GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 605
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size Shared
GPU Memory Type Shared
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots N/A
Storage Drive Included No
Storage Drive Type eMMC
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
Backplane I/O
RAID Support Not Supported
Internal I/O
  • 1 x AUX_PWR header
  • 1 x Front Panel Connector
  • 1 x HDMI CEC Header
  • 1 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wireless-AC 9462 (ac WiFi, BT5)
Front Panel
  • 1 x Consumer Infrared Rx Sensor
  • 1 x Dual-array Microphones
  • 1 x Headphone/Mic Combo
  • 1 x Kensington Lock Slot
  • 1 x Power Button with LED
  • 1 x SDXC Card Reader with UHS-I Support
  • 1 x USB 3.0
  • 1 x USB 3.0 Charge Port
Back Panel
  • 1 x DC-In Jack
  • 2 x HDMI 2.0a
  • 1 x Rear Speaker Out/Optical TOSLINK
  • 1 x RJ-45
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Grey
Dimensions 115 x 51 x 111 (mm WxHxD)
Additional Information
Scan Code LN89150
Model Number BOXNUC7PJYH3
GTIN 5032037120081

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Intel NUC Kit, NUC7PJYH, 4-Core Pentium Silver J5005, DDR4 SO-DIMM, 2.5" SATA3 Bay, HD Graphics 605, 2x HDMI, Barebone is rated 4.0 out of 5 by 4.
Rated 1 out of 5 by from NUC's, Nuc's, nucs. I've now had 5 of these NUC's. I have reached my tether of buying from iNtel. Their products are beautiful, powerful and on the main worth spending money on them. But, all 5 have failed firstly on Bluetooth. Basically range fails first then after a while it just does not like the mini USB dongle in the PC. You can move it away via a cable and it will work again. But, the the screen keeps failing. They have all had the same problem where the screen goes blank but it's still functioning fine but you just can't use the PC. You'd think iNtel would follow up and investigate. Nah, their not interested, so now on the last two occasions I have had to ask for more cash back. All I can say is don't buy them. You choose though whatever you like but I warned you. Various types of NUC's tested, including an i7 version.
Date published: 2019-03-03
Rated 5 out of 5 by from Excellent value little box This is my second NUC, was not sure what to expect of the J5005 but I'm pleasantly surprised. I installed 8GB RAM and a 500GB SSD to use it as a Plex server with Windows 10. It runs everything very fast without any lag and very little loading time and the fan is almost silent. If you're after an HTPC, home server, or a simple quiet little desktop for basic computing you can't go wrong with this machine. It can even handle transcoding well. Oh and the new styling is great too. The all black case on this is a big improvement over previous models which now look dated and cheap in comparison.
Date published: 2018-12-08
Rated 5 out of 5 by from Excellent NUC for the price I have had this NUC (Pentium J5005) running as NAS/server 24x7 for around a month now. Works as expected no issues. Using Linux Ubuntu 18.04 LTS recognizes everything out of the box including wireless. I use two 2.5 inch hard drives, one inside the NUC, one on USB enclosure. It consumes about 7W with the USB drive connected. One word of caution - if you use a harddrive instead of an SSD (like me) you will hear the harddrive spinning and some vibration filters to the NUC - not an issue - I knew that could happen. But it is definitely designed for SSDs more than traditonal HDDs in mind.
Date published: 2018-08-18
Rated 5 out of 5 by from Excellent I purchased this Intel NUC along with 8GB RAM and SSD drive. It is really fast, perfect choice for office environment, I attached all to the back of the monitor for tidiness. I will definitely purchase again.
Date published: 2018-07-18
  • y_2019, m_9, d_18, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_89150, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Max HDMI Resolution

Whats the max resolution the 2 HDMI outputs can display I have 2 monitors 2560 x 1440 and want to extend desktop on these
Asked by: sbouffe
It will take 2 x 4K monitors with no issues. Except when the whole computer seems to breakdown, usually the Bluetooth goes first then the screen goes blank on a regular basis.
Answered by: 1MrBee
Date published: 2019-05-04

Hi there does this come with a UK power supply/lead and a Vesa mount?

Asked by: Spoonman77
Yes supplied with UK, Euro, and American power adaptor. Vesa Mount included too.
Answered by: 1MrBee
Date published: 2019-05-04
