Intel NUC BOXDC53427HYE Intel Core i5 Dual Core Barebone Unit
Scan code: LN51864
Manufacturer code: BOXDC53427HYE
End Of Life
Intel NUC BOXDC53427HYE Intel Core i5 Dual Core Barebone Unit
Intel NUC Core i5-3427U Dual Core 1.8GHz, DDR3 SO-DIMM, mSATA 6GB/s, Intel HD Graphics 4000, 350MHz GPU
Scan code:
LN51864
Manufacturer code:
BOXDC53427HYE
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
- 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview
A revolution in ultra-compact device design, Intel® NUC packages a fully scalable, computing solution in the smallest possible form factor, complete with the Intel® Core™ i5 vPro™ processor. This new generation computing device provides a flexible, customizable engine to drive digital signage, kiosks, and intelligent computing for small spaces, or anywhere else you can imagine.
Intel® NUC also has triple display1 capabilities for multiple monitoring and display, along with Intel® vPro™ technology which lets your IT service provider remotely manage or repair your system. With that kind of power and size, you’ll rethink what’s possible. Because the only thing more amazing than Intel® technology is what you’ll do with it.
Please Note
This product comes with the power brick but the power lead (LN13640) needs to be purchased seperately Features Form factor
UCFF
Processor
Intel 3rd Generation Core i5 processor 3427U (soldered down) with active fan heatsink
Memory
Two SO-DIMM slots supporting upto 16GB of 1333/1600MHz DDR-3 memory
Chipset
Intel® QS77 Express Chipset
Display
Dual Mini-Displayport 1.1a ports
HDMI port supporting 1.4a
Supporting triple independent display capability
Audio
Intel® High Definition Audio (Intel® HD Audio)2 subsystem in the following configuration:
8-channel (7.1) digital audio via HDMI 1.4a output and via one Displayport 1.1a connector
LAN support
Intel® Gigabit Ethernet controller
Peripheral interfaces
One USB 3.0 port (front panel)
Two USB 2.0 ports (back panel)
Two USB 2.0 ports (internal headers)
Expansion capabilities
Full size mini PCI Express with mSATA support
Half size mini PCI Express
Included in the box
19V, 65W power brick
VESA mounting bracket
Wireless antennae (integrated into the chassis)
Core i5 logo
Warranty
3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)
Note: Barebone NUCs accept Low Voltage 1.35v DDR3L SO-DIMM Modules ONLY.
Intel® NUC also has triple display1 capabilities for multiple monitoring and display, along with Intel® vPro™ technology which lets your IT service provider remotely manage or repair your system. With that kind of power and size, you’ll rethink what’s possible. Because the only thing more amazing than Intel® technology is what you’ll do with it.
Please Note
This product comes with the power brick but the power lead (LN13640) needs to be purchased seperately Features Form factor
UCFF
Processor
Intel 3rd Generation Core i5 processor 3427U (soldered down) with active fan heatsink
Memory
Two SO-DIMM slots supporting upto 16GB of 1333/1600MHz DDR-3 memory
Chipset
Intel® QS77 Express Chipset
Display
Dual Mini-Displayport 1.1a ports
HDMI port supporting 1.4a
Supporting triple independent display capability
Audio
Intel® High Definition Audio (Intel® HD Audio)2 subsystem in the following configuration:
8-channel (7.1) digital audio via HDMI 1.4a output and via one Displayport 1.1a connector
LAN support
Intel® Gigabit Ethernet controller
Peripheral interfaces
One USB 3.0 port (front panel)
Two USB 2.0 ports (back panel)
Two USB 2.0 ports (internal headers)
Expansion capabilities
Full size mini PCI Express with mSATA support
Half size mini PCI Express
Included in the box
19V, 65W power brick
VESA mounting bracket
Wireless antennae (integrated into the chassis)
Core i5 logo
Warranty
3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)
Note: Barebone NUCs accept Low Voltage 1.35v DDR3L SO-DIMM Modules ONLY.

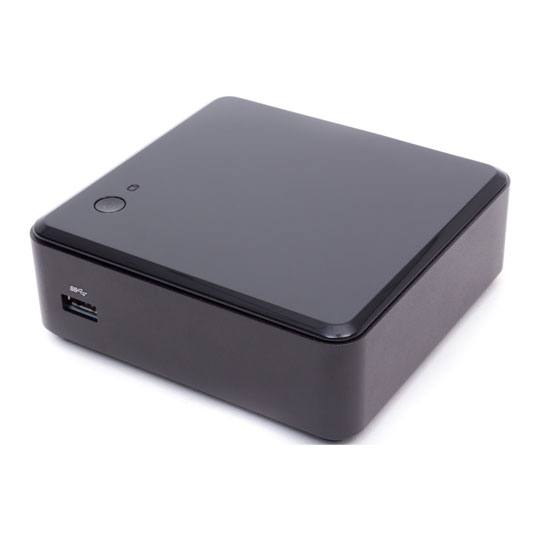

Intel NUC BOXDC53427HYE Intel Core i5 Dual Core Barebone Unit
