Scan code: LN118768 Manufacturer code: RNUC11PHKi7C003

Intel NUC 11 Enthusiast Barebone Mini PC Kit

Intel NUC 11 Enthusiast Mini PC, i7-1165G7, DDR4 SO-DIMM, NVIDIA GeForce RTX 2060, axWiFi/2.5 GbE, M.2 PCIe, NoOS

MORE INFO
MORE INFO
Thumbnail 1 : Intel NUC 11 Enthusiast Barebone Mini PC Kit Thumbnail 2 : Intel NUC 11 Enthusiast Barebone Mini PC Kit
Scan code: LN118768 Manufacturer code: RNUC11PHKi7C003
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

NUC 11 Enthusiast Mini PC Barebone Kit by Intel

Intel® NUC 11 Enthusiast Mini PC and Kit

Enthusiast Mini PC delivers game-changing performance in a super-small, sleek chassisTake gaming to the next level with the ultra-sleek, super-small Intel® NUC 11 Enthusiast Mini PC and kit. Powered by an 11th Gen Intel® Core™ i7 processor with discrete NVIDIA® GeForce RTX™ 2060 discrete graphics, these 1.3 liter systems deliver commanding performance while taking up just a sliver of desk space.
At home or the next competition, the system makes it easy to stay cool. The new cooling system won’t heat up the room, no matter how hot the gameplay gets, and with the innovative thermal design, the system runs at a whisper and can be tucked into tight spots vertically or horizontally. It’s also easy to customize the top RGB panel to create a signature design, and already-fast launch times can be cranked up with Intel® Optane™ memory H10 or H20.

Core i7-1165G7CPU

NVIDIA GeForce RTX 2060GPU

2 x (2280) M.2M.2 Storage

2 x SO_DIMM SlotsDRAM - DDR4

Extreme Connectivity for Controllers and Peripherals

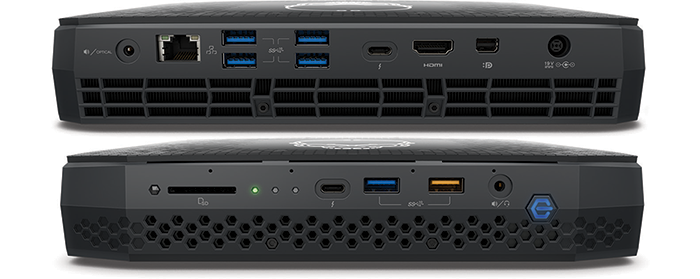

NUC 11 Enthusiast Ports

ConnectivityIntel® Wi-Fi 6, the latest generation of Wi-Fi, and 2.5 Gbps Ethernet

MemoryUp to 64 GB of ultra-fast dual-channel DDR4-3200 memory

ThunderboltTwo Thunderbolt™ 4 ports for fast data transfers and charging

DisplayHDMI 2.0b and Mini DisplayPort 1.4 ports supports up to four monitors

OptaneIntel® Optane™ Memory H10 or H20 ready

Experience the Cool Side of Powerful This system is designed for anyone who wants an unparalleled combination of performance, riveting visuals, and fast and flexible connectivity. Along with the CPU’s breakthrough performance and the GPU’s immersive visuals, gamers and creators can connect fast with Intel® Wi-Fi 6, two Thunderbolt™ 4 ports, and HDMI and Mini DisplayPort ports for attaching up to four monitors.

Design Optimized in the Smallest Package Available

Intel CPU Mini PC

Connect up to 4 monitors This Intel® NUC features an 11th Gen Intel® Core™ i7 processor which has four cores and eight threads along with impressive clock speeds. Paired with this speedy CPU is a GeForce RTX™ 2060 Discrete graphics card which is powered by the NVIDIA Turing™ architecture, bringing incredible performance and the power of real-time ray tracing and AI to the latest games and to every gamer. The NUC 11 Enthusiast is ideal for Gaming, Streaming & Content Creation.

VR Gaming and Workstation-Level Performance

Intel NUC 11 RGB

Expand your DDR4 Memory up to 64GB The Intel NUC 11 Enthusiast Mini PC and kit might be cool, quiet, and compact, but make no mistake because it packs the performance punch needed to dominate the competition. It also has a customisable top RGB panel to create a signature design. New thermal design uses five heat pipes to keep system cool and quiet.

Further details regarding this model can be found: here.

Specifications
Edition NUC11PHKi7C
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i7
CPU Model i7-1165G7
Architecture Tiger Lake
Manufacturing Process 10 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed N/A
Burst Frequency 4.70 GHz
CPU Cache 12MB
CPU Cooler
Max. TDP 28 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC11PHBi7
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset GeForce RTX 2060
GPU Architecture Turing
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x M.2, 22-80/110, PCIe Gen3
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O 2 x USB 2.0 Header
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 1 x SDXC Slot
  • 2 x USB 3.0
  • 1 x USB Type-C
Back Panel
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x HDMI 2.0a
  • 1 x Mini DisplayPort 1.4
  • 4 x USB 3.1
  • 1 x USB 3.1 Gen1 Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System Not Included
Colour Black
Dimensions
Weight
Includes
  • 1 x UK Power Cable
  • 1 x VESA Mounting Plate
  • 2 x Wi-Fi Antenna
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN118768
Model Number RNUC11PHKi7C003
GTIN 5032037200028
