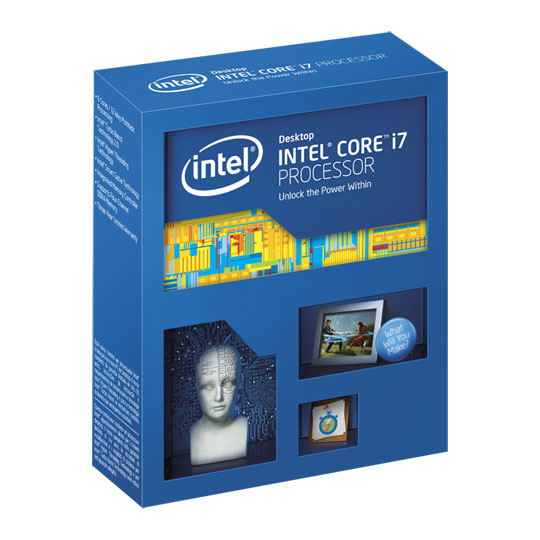

Intel i7 5930K Haswell-E 2011-3 Unlocked CPU
Intel Core i7 5930K Unlocked, S 2011-3, Haswell-E, 6 Core, 3.5GHz Clock, 3.7GHz Turbo, 15MB, 40 Lane, 140W, CPU
6 independent cores of unbelievable power that encourage you to become the digital content creator or gamer you always wanted to be. Need cores to render? Check. Need cores to compile? Check. Need core to seek and destroy in the latest game? Check. It seems almost unfair to add Intel® Hyper Threading Technology for a total of 12 threads at your disposal. You want burst speed performance for those jobs that require a bit more frequency? Intel® Turbo Boost Technology has that covered. But that little voice inside of you is saying you want even more? Let that voice know that the processor is unlocked and is ready for you to tune it to fit your demanding needs. Tune cores, power, memory, or whatever else you need to tune to make your system fit your needs.
Please note: This CPU has 40 PCI Express Lanes. Features • Fully Unlocked Core Multiplier
• Massive Multi-Thread Performance
• Halo Platform for Gaming, Overclocking and Content Creation
• 1st Intel Desktop CPU with DDR4 Support
• 22nm Haswell Microarchitecture
• Intel® Turbo Boost Technology 2.0
• Intel ® Hyper-Threading Technology
|CPU Type||Intel Core i7|
|CPU Model||5930K Unlocked|
|Core Size||22 nm|
|No. of Threads||12|
|Core Ratio||35 x|
|Clock Speed||3.5 GHz|
|Turbo Speed||3.7 GHz|
|DMI Speed||5 GT/s|
|Unlocked Core Multiplier||Yes|
|Unlocked Full Range Base Clock (B-Clock)||No|
|Max. Memory Size||64 GB|
|Max. Memory Speed||DDR4 - 2133|
|Max. Memory Channels||4 (Quad Channel)|
|ECC Memory Support||Not Supported|
|Max. PCIe Lanes Supported||40|
|Base GPU Speed||N/A|
|Max. GPU Speed||N/A|
|Max. GPU Resolution||N/A|
|L1 Cache (Total)||6 x 32 KB instruction caches, 6 x 32 KB data cache|
|L2 Cache (Total)||256KB x 6|
|L3 Cache (Total)||*See Intel Smart Cache*|
|Intel® Smart Cache||15MB|
|Thermal Specification||66.8 °C|
|Heatsink||Not Included, Sold Separately|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 1 months
- 0870 607 2439
Date Issued: 29th Aug 2014
New processors usually grab all the release limelight, relegating the supporting core logic and memory to mere footnotes. This time, a brand-new chipset and DDR4 memory are equal partners in the platform.
Ask your questions. Share your answers.
The RAM should just down clock by itself if not you can change the frequency in the BIOS.
I would advise to stick with the 2133Mhz variant (if there are some) in which you should save some money and any instability issues you could come across.
It would all depend on what you were using the system for, faster memory would mean better performance in most cases however.
My advice is stick to the maximum memory it states which is DDR4 - 2133Mhz.
If you do decide to go for then you will more than likely have to manually tweak the settings in the BIOS for the RAM speed to overclock efficiently however just be careful as it could cause a lot of instability issues if not done properly
