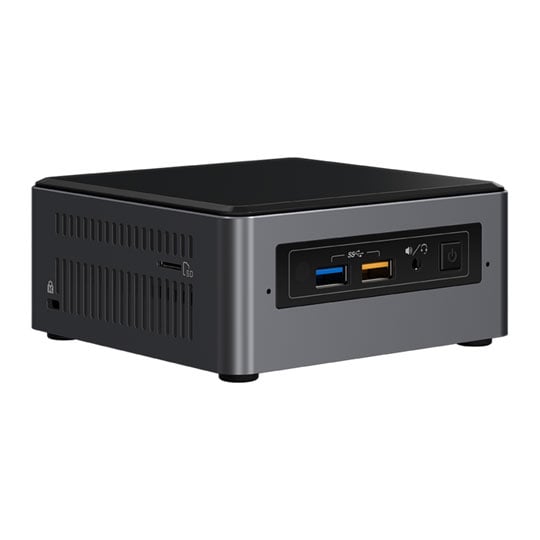

Intel i5 Tall Baby Canyon NUC NUC7I5BNH Thunderbolt3 Barebone Kit

Intel 7th Gen Barebone NUC Kit, i5-7260U, DDR4, M.2+2.5" SATA, GbE, WiFi/BT, Intel Iris Plus Graphics 640, Thunderbolt 3

Intel
Scan code: LN80071 Manufacturer code: BOXNUC7I5BNH Request call
£399.98Item overdue since 21 April 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £9.99 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The Intel® NUC Kit NUC7i5BNH Gives You the Performance to Turn the Intel NUC into A Powerhouse Of Productivity and Play

Get ready for truly responsive performance. The newest member of the Intel® NUC family is built with a dual-core 7th generation Intel® Core™ i5 processor. The Intel NUC Kit NUC7i5BNH gives you the performance to turn the Intel NUC into a powerhouse of productivity and play, running analytics and working late into the night, or streaming your favourite movies and music to unwind at the end of your day.

The taller Intel NUC7i5BNH is Intel® Optane™ Memory ready which makes you ready for the future. By easily installing and pairing Intel Optane Memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches, and more responsive browsing—exactly what you need for work or play. Intel NUC7i5BNH also has room for a 2 TB HDD, so you have the room to store and back up all your important files.

New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i5BNH has some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours. With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage.

Intel® Iris™ Plus Graphics and Thunderbolt™ 3
Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better clarity, letting you see data visualizations or on screen text in brilliant definition. The Intel NUC7i5BNH can connect up to three 4K monitors so you can spread your work out across screens. The kit also comes with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds for your intensive data needs and has built-in 10 GbE for networking with another Thunderbolt 3 system.

Cut The Cords, Not The Performance
Each kit come with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.

INTEL® NUC: Go small, get big. Features • 7th generation Intel® Core™ i5-7260U processor.
• Intel® Iris™ Plus Graphics 640.
• Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz).
• 1x SATA3 port for connection to 2.5" HDD or SSD.
• M.2 slot with flexible support for a 42 or 80 mm M.2 SSD.
• Intel® Optane™ Memory ready.
• Intel® Dual Band Wireless-AC 8265 and Bluetooth* 4.2.
• Back panel DC power connector (12–19V).
• One full-size HDMI* 2.0 display port supporting 8 channel audio (7.1 surround sound).
• Intel® Gigabit LAN.
• Two USB 3.0 ports on the back panel.
• Thunderbolt™ 3 port with support for USB* 3.1 gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt.
• Kensington lock support.
• Support for user-replaceable third-party lids.
• Micro SD card slot.
• Consumer infrared sensor.
• Two USB 3.0 ports (including one charging port) on the front panel.
• Front panel headphone/microphone jack.
• Front panel power button.
• Dual-array front microphones.
• Multi-colour front panel LED ring.
Specifications
Specifications
Edition NUC7I5BNH
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i5
Core Dual Core
No. of Threads 4
CPU Model i5-7260U
Clock Speed 2.2 GHz
Burst Frequency 3.4 GHz
CPU Cooler Air Cooled
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor Intel NUC
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Plus Graphics 640
Discrete GPU No
GPU Chipset
GPU Cores
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots 1 x M.2, 2242/2280, PCIe/SATA
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
RAID Support Not Supported
Internal I/O
  • 1 x AUX_PWR header
  • 1 x Consumer Electronics Control header
  • 1 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel 867 Mbps ac WiFi 2.4/5GHz + BT 4.2
Front Panel
  • 1 x Dual-array Microphones
  • 1 x Headphone/Mic Combo
  • 1 x Infrared Sensor
  • 1 x Multi-colour Front Panel LED Ring
  • 1 x Power Button with LED
  • 1 x USB 3.0
  • 1 x USB 3.0 Charge Port
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI 2.0
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader
  • 2 x USB 3.0
  • 1 x USB 3.1 Type-C/Thunderbolt 3
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable
PSU Wattage 65 W
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Grey
Dimensions 115 x 51 x 111 (mm WxHxD)
