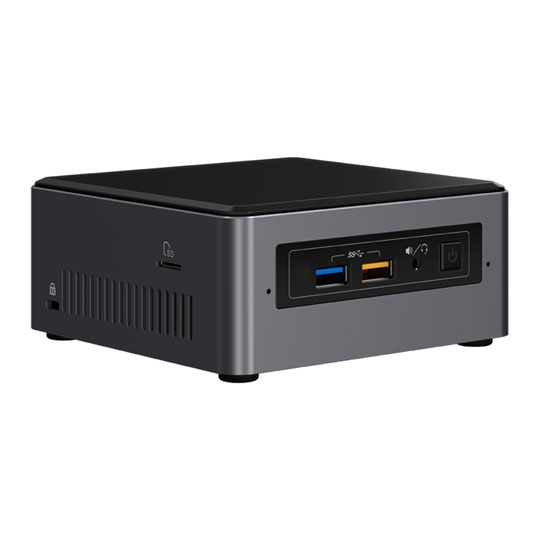

Intel i3 Tall Baby Canyon NUC NUC7I3BNH USB 3.1 Type-C Barebone Kit

Intel 7th Gen Barebone NUC Kit, i3-7100U, DDR4, M.2+2.5" SATA, GbE, WiFi/BT, Intel HD Graphics 620, USB 3.1 C with DP1.2

FREE Bullguard Internet Security 2017 worth £39.99 MSRP
Intel
Scan code: LN78647 Manufacturer code: BOXNUC7I3BNH Request call
£252.98
In stock
Pay on Scan Finance with a 10% deposit from just £6.32 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 22nd Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Manage your life right now. The Intel® NUC Kits NUC7i3BNH is built with the 7th generation Intel® Core™ i3 processor give you the performance to handle anything your household throws at it. From sharing and backing up your files—including your digital photos—to managing your home automation, the Intel NUC sits at the center of your smart home or entertainment center. And its small size means it fits in the family room, the kitchen, the den, or wherever you want to place it.

The taller Intel NUC7i3BNH is Intel® Optane™ Memory ready which makes you ready for the future. By easily installing and pairing Intel Optane Memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches, and more responsive browsing. Intel NUC7i3BNH also has room for a 2 TB HDD, so you have the room to store and back up all your important files.

New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i3BNH has some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-colour LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music and movies. Or listen with headphones via the front microphone/audio jack. The choice is yours. With four USB 3.0 ports, including a charging port, you’ve got room to connect a USB keyboard, mouse, and printer, and still have a port to charge your phone or connect external storage. There’s also a USB Type-C* port that provides USB 3.1 for faster data transfer or DisplayPort* 1.2.

Intel® HD Graphics via an HDMI* Port
Intel® HD Graphics lets you see images in brilliant 4K and adds better definition and clarity, letting you watch theatre-quality 4K videos in your living room or see photos the way they were meant to be seen. And the 60 Hz refresh rate keeps mouse and cursor movement crisp, and your eyes from tiring when you’re using your system for late night homework.

Cut The Cords, Not The Performance
Each kit comes with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.

INTEL® NUC: Go Small, Get Big. Features • 7th generation Intel® Core™ i3-7100U processor.
• Intel® HD Graphics 620.
• Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz).
• 1x SATA3 port for connection to 2.5" HDD or SSD.
• M.2 slot with flexible support for a 42 or 80 mm M.2 SSD.
• Intel® Optane™ Memory ready.
• Intel® Dual Band Wireless-AC 8265 and Bluetooth* 4.2.
• Back panel DC power connector (12–19V).
• One full-size HDMI* 2.0 display port supporting 8 channel audio (7.1 surround sound).
• Intel® Gigabit LAN.
• Two USB 3.0 ports on the back panel.
• USB Type-C port providing DisplayPort* 1.2 or USB 3.1 gen 2.
• Kensington lock support.
• Support for user-replaceable third-party lids.
• Micro SD card slot.
• Consumer infrared sensor.
• Two USB 3.0 ports (including one charging port) on the front panel.
• Front panel headphone/microphone jack.
• Front panel power button.
• Dual-array front microphones.
• Multi-colour front panel LED ring.
Specifications
Edition NUC7I3BNH
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i3
Core Dual Core
No. of Threads 4
CPU Model i3-7100U
Clock Speed 2.4 GHz
Burst Frequency N/A
CPU Cooler Air Cooled
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor Intel NUC
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 620
Discrete GPU No
GPU Chipset
GPU Cores
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots 1 x M.2, 2242/2280, PCIe/SATA
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
RAID Support Not Supported
Internal I/O
  • 1 x AUX_PWR header
  • 1 x Consumer Electronics Control header
  • 1 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel 867 Mbps ac WiFi 2.4/5GHz + BT 4.2
Front Panel
  • 1 x Dual-array Microphones
  • 1 x Headphone/Mic Combo
  • 1 x Infrared Sensor
  • 1 x Multi-colour Front Panel LED Ring
  • 1 x Power Button with LED
  • 1 x USB 3.0
  • 1 x USB 3.0 Charge Port
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI 2.0
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C with DisplayPort 1.2 Support
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Grey
Dimensions 115 x 51 x 111 (mm WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Intel
Customers also bought
Reviews
Intel 7th Gen Barebone NUC Kit, i3-7100U, DDR4, M.2+2.5" SATA, GbE, WiFi/BT, Intel HD Graphics 620, USB 3.1 C with DP1.2 is rated 4.5 out of 5 by 2.
Rated 5 out of 5 by from Superb little box - ideal as a media-server. I bought this to act as a media server & client, connected directly to the TV. It hardly gets warm and is pretty much silent (I've not heard it at all). And in the BIOS you can disable the fan entirely if you so choose. Windows 10 picked up every device, with the exception of the audio. That was quickly rectified by installing the Intel drivers directly. I tried installing a couple of times - once all with drivers downloaded from Intel and again with whatever Windows 10 picked up. I went with the latter in the end as I experienced some issues with the Intel WiFi driver insisting it was a public (not private) network.
Date published: 2017-07-06
Rated 4 out of 5 by from Purchased as a DAW (Digital Audio Workstation) This is a great little system if you respect its limitations. This particular SKU is a dual core i3, so its never going to be a number crunching beast but obviously has a little more horsepower than the older gen nucs with celerons and such, that being said i bought it for simple cubase/reaper related midi sequencing and some basic audio work and watching youtube music production tutorials and for that it seems to be fantastic. The concensus is its great as a HTPC (Home Theatre) solution, for kodi builds etc but i have yet to try this. My understanding is with the basic but functional intel HD graphics on the kabylake processors, this litle system might function pretty well as a brains to an arcade emulation system, IE for old MAME and PS1/N64 era emulation. It might push modern PC titles at very low resolutions 800x600, low graphics and low framerates 25fps*, but this is not a gaming system unless you are playing old stuff like deus ex, system shock 2, quake 3 and some old rpgs. It might run some older MMOS on lower settings like old republic and wow. System will probably be fine for basic office work and may be a good solution for students wanting a cheap out of the way setup they can just mount to the back of a VESA monitor in their dorm/student digs. --------------- Some stuff to be aware of just incase it isnt clear for some people - These dont ( DO NOT ) ship with - Memory (RAM) - Storage ( Hard Drives/SSD) - Operating system YOU will have to have your own ready. A factor to be aware of is the motherboard and chipset DO NOT natively support basic WINDOWS 7 installs from the typical DISC/USB THUMB DRIVE as the MB and chipset is not USB2, all ports are USB 3. So if you try to install WIN7 you will have no USB mouse/keyboard control, one solution is to create a windows image with the USB 3 drivers embedded on another PC. I installed windows 10 with no issue from thumb drive. ----------- Hope this helps people.
Date published: 2017-07-04
