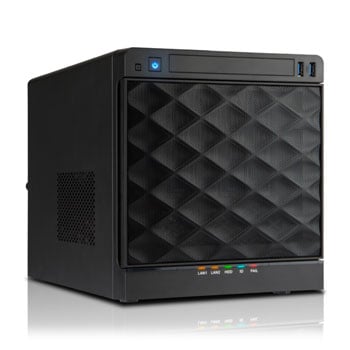

In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU
In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU
Scan code: LN83909 Manufacturer code: IW-MS04-01
£149.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU
  • Thumbnail 2 : In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU
  • Thumbnail 3 : In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU
  • Thumbnail 4 : In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU

In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case with PSU

In-Win IW-MS04-01 Black Mini-ITX NAS Storage Server Chassis, with 4x 2.5"/3.5" SATA3 Hot Swap Drive Bays, 265W Flex PSU
MORE INFO
MORE INFO

Scan code: LN83909 Manufacturer code: IW-MS04-01
£149.99
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £50.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £9.98 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.59 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

In-Win IW-MS04-01 4-Bay ITX NAS Storage Sever Case

Unique server design ideal for small office with built-in 6Gb SATA backplane, & includes 265W Flex ATX Power Supply.

Features

• SATA Backplane (6Gb/s supported).
• Front access to 2x USB 3.0 Ports.
• M/B tray for easy maintenance.
• Slim ODD supported.
• Features Intrusion Switch, Padlock Loop, Kensington Slot.
• Flex ATX power supplies supported.
• 265W Flex ATX 80+ Bronze PSU Included.

Please Note: Images for Illustration Purposes Only. Motherboard, RAM, Cables, Drives, Fan, etc, are not included, available separately.
Specifications
Core Chassis Specifications
Case Edition IW-MS04-01
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 4 x 2.5"/ 3.5" External SATA Hot-Swap
  • 1 x Slim Optical
Standard Expansion Slots 1 (Half-Height)
Vertical Expansion Slots
Fans & Filters
Fan Bays 1 x 120mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 65 mm
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included Yes
PSU Wattage (If Included) 265 W
PSU 80+ Rating (If Included)
PSU Support FlexATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SGCC
Front Panel Type N/A
Dimensions 210 x 230 x 275 (WxHxD mm)
Weight 5.31 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN83909
Model Number IW-MS04-01
GTIN 4710474937233
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204-474747

Additional Notes:
In-Win IW-MS04-01 - Mini-ITX NAS Case w/ 4x Hot-Swap Bays (SATA Discrete Connection) - 265W ATX PSU Included
