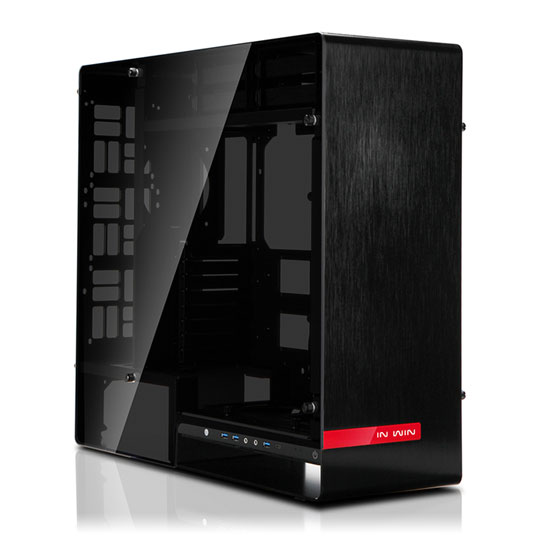

In Win 909 Full Tower Ultimate Case - Black (USB 3.1 Type C)
In Win 909 Black Aluminum & Tempered Glass E-ATX Case, USB 3.1 Type C, White LED Strip, E-ATX/ATX/Micro ATX/Mini ITX
Building on the success of its 904 ATX and 901 mini-ITX PC chassis, the 9-series new full tower chassis, 909, continues the legacy of precision craftsmanship, commitment to simplicity and elegance design with a unique interior layout. 909 features a refined exterior with cutting edge style in tune with the true spirit of a premium chassis.
Impressively Detailed Craftsmanship
Quality is not just about how well something is made! It is also embodied by attention to detail. 909 is constructed with solid materials, and its chamfered edge design and sleek anodized aluminium are beautifully crafted to masterfully create a streamlined and smooth enclosure inside/out.
Simplicity in Design

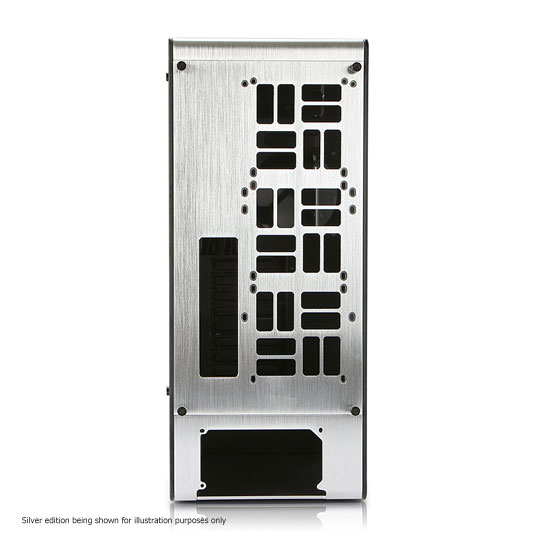

909 features a single piece 4mm brushed aluminium shell and an elegant back panel that hides unnecessary rear I/O cables. Not only is it clutter-free, but this design also demonstrates the elegant aesthetics of simplicity.
Tempered Glass Side Panels
The side panels are finished entirely out of 5mm tinted tempered glass which reveals the internal LED light, and overall enhances the 909 into a truly modern and dynamic appearance.
1 x USB 3.1 TYPE-C
909 is equipped with one all-new reversible USB 3.I TYPE-C port for ultimate speed transfers up to 10 Gb/s which is twice as fast USB 3.O.
Magnetic Aluminium Dust Filter
The front intake fan dust filter has an embedded magnet design for easy removal creating a convenient installation and more importantly excellent dust reduction.
Elegant Lighting Effects
A high-quality chassis should look beautiful when powered on and with the 909 it has a white LED strip creating various lighting effects to illuminate the PC interior beautifully highlighting the interior components.
Supports up to 8 Fans
To balance the minimalist exterior design with optimized cooling performance, the airflow is meticulously designed to achieve maximum heat dissipation.
Versatile Liquid Cooling Options
909 has four liquid cooling radiator mounting areas which will allow you to cool specific system components to an even greater degree and provides the best thermal performance.
Supports up to E-ATX Motherboard
909 full tower spacious interior supports E-ATX, Micro-ATX and Mini-ITX motherboards allowing users to have versatile options to build advanced high-end system.

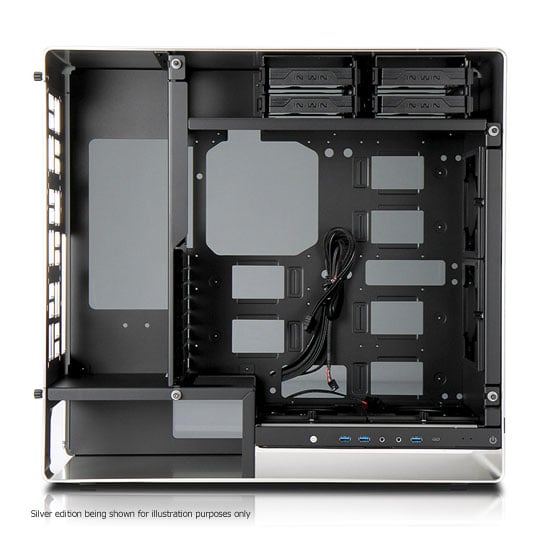

Unique HDD & PSU Chamber Design
The separate HDD and PSU chambers provide an ideal thermal environment by allowing heat airflow to dissipate directly to the back venting holes without interfering with the motherboard and graphic card area, and significantly improving the ventilation. Features • Super Speed Reversible USB 3.1 Type C
• Black Chassis with White LED Strip
• Aluminium Chassis with 5mm Tempered Glass
• Liquid Cooling
- Rear 360mm Radiator Support (Height up to 60mm)
- Top 120mm Radiator Support (Height up to 35mm)
- Front 280mm Radiator Support (Height up to 35mm)
- Bottom 240mm Radiator Support (Height up to 35mm)
|Case Form Factor||Full Tower|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length|
|Max CPU Cooler Height||175 mm|
|Max VGA Card Length||320 mm|
|Dimensions||231 x 540 x 575 (WxHxD mm)|
|Weight||17 kg (Approx)|
