FLEX-FIT Duo 3.5-inch to 5.25-inch mounting kit

Icydock FLEX-FIT Duo MB343SPO 5.25” Ext. Bay to 3.5” HDD / Device Bay + Ultra Slim ODD Bay Mounting Kit Bracket

Thumbnail 1 : FLEX-FIT Duo 3.5-inch to 5.25-inch mounting kit Thumbnail 2 : FLEX-FIT Duo 3.5-inch to 5.25-inch mounting kit Thumbnail 3 : FLEX-FIT Duo 3.5-inch to 5.25-inch mounting kit
Scan code: LN86998 Manufacturer code: MB343SPO
£9.49
Delivery Options
  • By DPD On 23rd May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview As technology advances, computer systems are becoming more compact, allowing the system to be easily transported and/or requiring less physical space. As a result, people are maximizing their system’s physical space utility to retain the same functions in a compact space with the use of improved hardware components.

Made for Space Saving

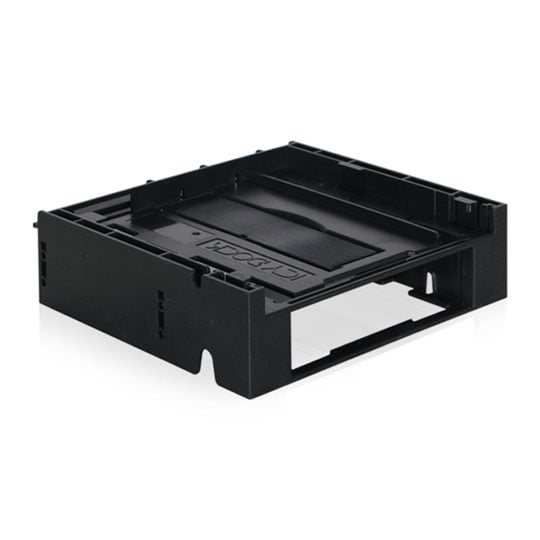

The FLEX-FIT Duo MB343SPO is a lightweight yet durable 3.5-inch to 5.25-inch mounting kit bracket that utilizes a single standard external 5.25” computer bay to accommodate a 9.5mm Ultra-Slim ODD (optical disk drive) and a 3.5” HDD / device. This would ultimately maximize your system space, allowing the user to fit more devices into a smaller space.

Advanced Drive Guiding System
Thanks for our advanced drive guiding system; the device installation process is very easy with the FLEX-FIT Duo MB343SPO.

Simple Tool-less 3.5" Device Installation
To install your 3.5” device such as card reader or audio control panel, just slide in the device until you heard a click, which indicate the Smart-Tip locks has locked the 3.5” device into place. For extra security, optional screws (included) can be added to each side.

Ultra Slim ODD & 3.5" HDD Installation
To install the Ultra-Slim ODD or 3.5” HDD, simply insert your Ultra-Slim ODD or 3.5” HDD into the FLEX-FIT Duo and secure the device with included screws.

Included 6pin Slimline to 15pin SATA Power Cable
If a 6-pin Slimline ODD power connector is not available in your system, we have included 6 pin Slimline to 15 pin SATA power cable for your convenience.

Detachable Dust Covers
Additionally, a dust cover for Ultra-Slim ODD bay and 3.5” device bay are included and can be snapped-off from the bracket for you to insert it into the front panel slot. This allows the exposed slots to be covered when not in use.

Beautifully Crafted Design
The FLEX-FIT Duo MB343SPO is engineered with the utmost dedication to building the most efficient and reliable product possible. Using a unibody, sturdy plastic open frame design, it provides excellent durability and at the same time, allows for maximum airflow and efficient passive cooling by convection. As a result, this reduces the chances of mechanical failures due to overheating. Because the bracket is a single piece design, it uses absolutely zero moving parts while retaining all core functionalities of the bracket.

Build Flexible
Since the 3.5” bay on FLEX-FIT Duo MB343SPO takes both 3.5” hard drives and 3.5” devices, there are many build options to choose from. For example, adding a 3.5" device; the ToughArmor MB993SK-B would give you a maximum of three hot-swappable 2.5” HDD/SSD bays, while adding the EZ-Fit Trio MB610SP SSD bracket will give you up to three internal 2.5” HDD / SSD bays. The FLEX-FIT Duo MB343SPO's 3.5" bay is also compatible with USB 3.0 hubs, multimedia card readers, fan speed controllers, and audio output ports that are in 3.5” device form factor.

Suggested Applications
Any system with standard 5.25” computer bay available

Compatible 3.5” / Ultra-Slim ODD products
3.5” hard drives, 3.5” USB hubs, 3.5” multimedia card readers, 3.5” HDD/SSD mobile racks, 3.5” HDD/SSD brackets, Ultra-Slim ODD to 2.5” HDD adapter, and Ultra-Slim optical disk drive. Features • Durable one piece, lightweight construction.
• Compatible with any standard 5.25” external drive bay.
• Fits 1 x 3.5” device / hard drive and 1 x Ultra-Slim ODD.
• Snap-off front panel dust covers for 3.5” bay and Ultra-Slim ODD bay.
• Advanced device guiding system for smooth device / drive installation.
• Smart-Tip locking mechanism for screw-less 3.5” device installation.
• Mounting screw holes for 3.5” HDD and Ultra-Slim ODD installation.
• 6 pin Slimline to 15 pin SATA power cable included.
• Compatible with any standard 3.5” HDD, 3.5” device, and Ultra-Slim ODD.

Specification
Model Number: MB343SPO
Colour: Black
Drive Fit:
- 1 x 3.5” device or hard drive
- 1 x Ultra-Slim ODD(9.5mm)
Device Fit: 1 x External 5.25" half height device bay
Material: Plastic
Dimension (L x W x H): 148.8 x 145.8 x 41.3mm
Weight: 97.6g
Package Contents: Device, User Manual, Screws
