FatCage MB153SP-B from Icy dock 3-in-2 SATA internal RAID backplane

Icy Dock MB153SP-B FatCage 3 in 2 SATA Internal Backplane Module

Icy Dock
Scan code: LN50139 Manufacturer code: MB153SP-B Request call
£67.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 23rd Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Introducing the MB153SP-B, a 3-in-2 SATA internal RAID backplane for 3.5” SATA hard drives. This is a lite version of the MB45X series by removing the monitoring features and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.

Slimmed Down Design
The MB153SP-B has been redesigned to be a lighter module, while maintaining the same level of quality, build, and service you’d expect from an Icy Dock product. While the design has gone through some changes, the space saving design is still established. The backplane module allows up to 3 x 3.5” SATA III hard drives, while only consuming two 5.25” bays. The module has also been redesigned for the type of power connector accepted. 15 pin SATA power is used to provide better accessibility for various host systems.

Efficient Cooling
Along with being a lighter package, the cooling has been improved to provide better air flow to your hard drives. The MB153SP-B uses a full metal body that allows for the best heat dissipation possible in various types of applications. In addition, our enhanced direct air flow design allows the included cooling fan to raise its efficiency to cool down your hard drives, by closing and rerouting any side vents to route incoming air directly to the cooling fan, as well as sealing any vents around the fan for better cooling efficiency. In addition, the backplane logic PCB has larger vents in key areas to allow more air to flow into and exit the MB153SP-B, making it an ideal system to store and cool your hard drives.

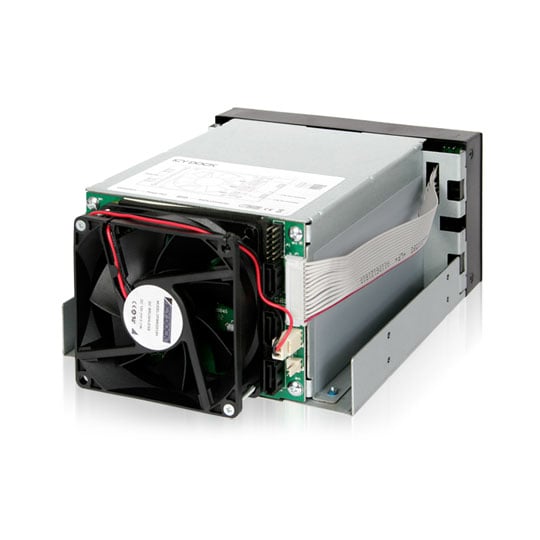

The included 80mm cooling fan also can be easily replaced and maintained, as the unit it can be fully removed and replaced with aftermarket cooling fans of the same size. To expand the range of compatible fans, both 2 and 3 pin fan power ports are available and can be easily accessed.

No Hassle Maintenance
The MB153SP-B has kept the same interchangeable EZ-Tray used in MB45X, MB559 and MB561 series. This allows you to continue to use the same trays from these series, or our compatible external 3.5” models without any issues regarding switching to new designs. The EZ-Tray accepts most 3.5” SATA hard drives and is very easy to install / remove to the device in two steps – press the release button and pull / push the lever. This allows for easy replacement in case of RAID failure or transporting of data.
Features • 3 in 2 RAID backplane module.
• Fits three 3.5” SATA I / II / III (SATA 6Gbps) hard drives in two 5.25” device bay & fully supports SATA Hot-Swap function.
• 80mm cooling fan with full metal body for excellent heat dissipation for the most intense applications.
• Compact and space saving to fit multiple drives.
• Interchangeable tray design with MB45X, MB559 & MB561 series.
• Enhanced Direct Air Flow Design – Shuts off vents while adding larger ventilation on the backplane PCB.

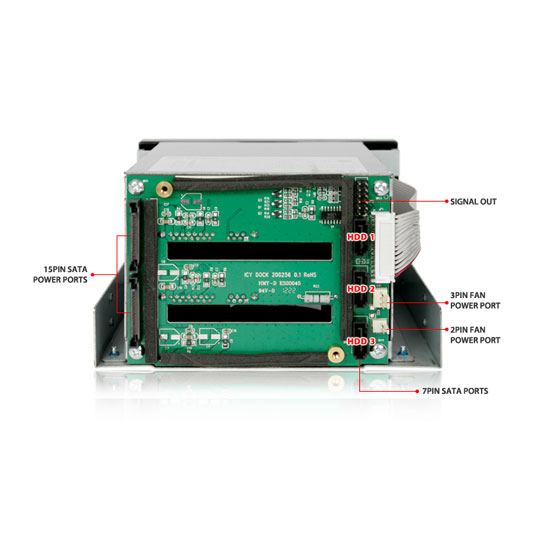

• Uses SATA 15 power ports for best compatibility with the newest power supplies.
• LED hard drive status notification.
• Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.
• Removable EZ-Tray design for internal drive security, exchangeability, expandability and maintenance capabilities.
• Replaceable rear cooling fan for easy maintenance or aftermarket replacement with 2 and 3 pin power ports available.
• ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability and long life.
Specifications
External Interface
HDD
Power Connectors
Space Requirement
Fan(s) No
Colour
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Customers also bought
Reviews
Icy Dock MB153SP-B FatCage 3 in 2 SATA Internal Backplane Module is rated 2.8 out of 5 by 4.
Rated 1 out of 5 by from Ruins perfectly good hard disk 1 year ago I put a drive in this caddy. Today I removed the drive so that I could plug it into another PC. The sata connector on the back of the hard disk was left behind, broken off and stuck in the caddy. One ruined hard disk. One unusable bay in the caddy. I don't think it's the hard drive at fault, it's a high end Seagate drive. Avoid this product.
Date published: 2015-11-18
Rated 5 out of 5 by from quick way to use a hot-swap raid array Over time this is the 5th of these drive bays I have fitted to various servers to enable hot-swapping, the fact 3 drives fit into a 2 drive space has advantages. Never had one of these bays fail, the more recent ones use sata power sockets, the older ones used to use Pata/Molex. You do need to mount the individual drives in a caddy, but I have spares of these already.
Date published: 2015-06-20
Rated 3 out of 5 by from Overpriced, but no other choice I would not recommend this product, as I wouldn't have bought it myself if I had any other choice. I was looking for a simple 3-in-2 enclosure, to fit 3x3.5'' HDDs in the 2x5.25'' optical bay of a Fractal Design Define R5. I did not require cooling or hot-swappable function or anything like that. However, there is no product out there that fits the above description, so I settled paying £70 for this thing. To be fair, it does the job. However, there are 2 things you have to be careful about. a) It fits very tightly, so things may go wrong with some cases. However, it fits in the Fractal Design Define R5, that is for sure. b) The fan is very small and thus very noisy at full speed. So if you want to avoid ear damage (!) connect it to an adjustable fan controller, so that you can turn it down a bit.
Date published: 2015-05-31
Rated 2 out of 5 by from Icy Dock MB153SP-B "FatCage" 3 in 2 SATA Internal Backplane Module The drive cage that you insert with the locking leaver has a weak spring to press and open it has a problem and then it solved itself. But the press down button to release the locking leaver is a bit small and could be an asset. The hard 4tb Drive/s do not slide in and out smooth an scratch the top of the 4tb Drive/s
Date published: 2014-12-09
  • y_2017, m_11, d_20, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_50139, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does this fin into Fractal Define R5?

I need something just like that for my PC, but I was wondering if it going to fit in my case, in the place of the 2x5.25'' optical bay. My case is as mentioned the Fractal Define R5.
Asked by: korkinof
I don't know your specific case but I have never had a problem fitting the 3 bay unit into a 2 x 5.25". I did have problems fitting a 4 bay into 3 x 5.25" where I had to bend some locating lugs out of the way.
Answered by: MochinDdu
Date published: 2015-08-22
