ICY DOCK ExpressSlot Elite MB840M5P-B M.2 NVMe SSD to PCIe 5.0 x4 Adapter
ICY DOCK ExpressSlot Elite MB840M5P-B Removable M.2 NVMe SSD to PCIe 5.0 x4 Adapter for PCIe Expansion Slot
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
ExpressSlot Elite MB840M5P-B

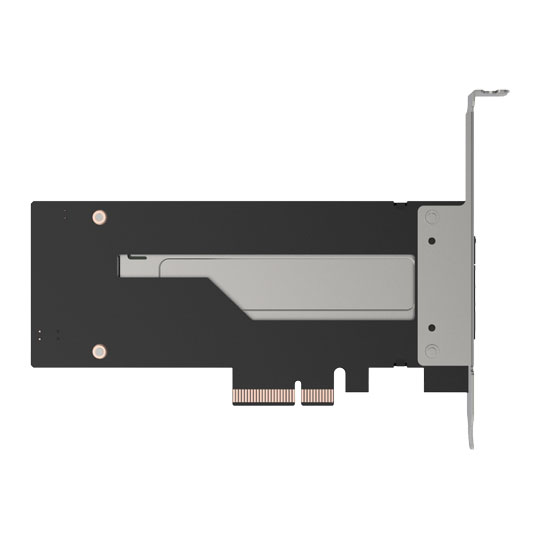

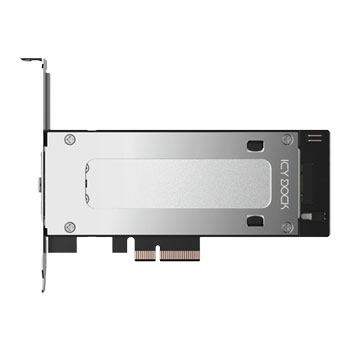

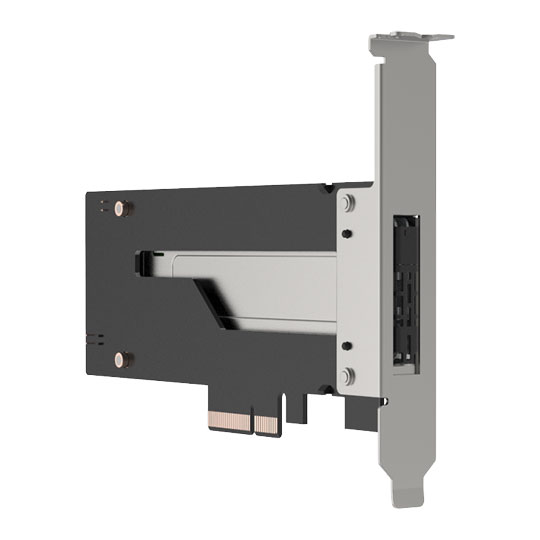

The ICY DOCK ExpressSlot Elite MB840M5P-B is a high-performance, removable M.2 NVMe SSD to PCIe 5.0 x4 mobile rack enclosure, designed to transform any PCIe x4, x8, or x16 expansion slot into a hot-swappable SSD bay. This innovative solution supports all M.2 NVMe SSD lengths—from 2230 up to 22110—and delivers ultra-fast data transfer rates of up to 128Gbps, ensuring compatibility with the latest PCIe 5.0, 4.0, and 3.0 SSDs. Featuring a tool-less drive installation design, secure Eagle-hook locking system, EMI grounding, anti-vibration technology, and a robust metal structure with passive cooling, the MB840M5P-B is ideal for professionals seeking reliable, easy-to-maintain storage upgrades in servers, workstations, and high-performance PCs.
Cutting-Edge PCIe 5.0 Compatibility
The MB840M5P-B is designed to leverage the power of PCIe 5.0, offering blazing-fast 128Gbps transfer speeds—double the bandwidth of PCIe 4.0 (64Gbps) and over 20x faster than SATA (6Gbps). Engineered for PCIe 5.0, 4.0, and 3.0 x8/x16 slots, this high-speed NVMe solution ensures maximum flexibility across enterprise workstations, high-performance computing, AI training, and data-intensive applications. By utilizing direct PCIe connectivity, it eliminates bottlenecks, reduces cable clutter, and delivers ultra-low latency storage performance for next-generation workloads.
Effortless M.2 NVMe SSD Management
Traditional M.2 SSD installation requires mounting the drive onto the motherboard or a riser card, secured with a small screw—often a cumbersome and time-consuming process. The MB840M5P-B simplifies this by utilizing the PCIe expansion slot, making M.2 SSD installation and removal quick and hassle-free with its removable drive tray design.
Quick & Tool-less SSD Installation
With ICY DOCK’s innovative tool-less design, installing or replacing an M.2 NVMe SSD takes less than five seconds, eliminating the frustration of handling small screws. This cutting-edge mechanism ensures a seamless and efficient workflow for drive maintenance.
Maximum Compatibility
The removable M.2 NVMe SSD tray (MB840TP-B) supports standard M.2 sizes, including 2230, 2242, 2260, 2280, and 22110, ensuring maximum SSD compatibility.
Superior Cooling for Maximum Performance
Designed with heat dissipation in mind, the MB840M5P-B’s aluminum tray acts as a built-in heatsink, efficiently transferring heat away from the SSD.
The included thermal pad fills any gaps between the SSD and the metal enclosure, ensuring optimal contact and efficient heat transfer. This design allows airflow to dissipate heat more effectively, maintaining peak SSD performance.
Flexible Installation with Full & Half-Height Brackets
The MB840M5P-B features a swappable PCIe slot bracket, supporting both full-height and half-height system configurations.
Reliable EMI Grounding for SSD Protection
Frequent SSD swapping introduces the risk of electrostatic discharge (ESD) damage. The MB840M5P-B prevents this with built-in EMI grounding technology. With our tool-less adjustable M.2 locker, the moment the SSD is secured in place, it is automatically grounded, ensuring continuous protection against electrical damage.
Features
• Fits 1x M.2 PCIe NVMe SSD with all drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm).
• PCIe 5.0 x4 interface (backward compatible with PCIe 4.0/3.0).
• Fits into full-height & half-height PCIe expansion slots.
• Removable drive tray with tool-less drive installation design for easy drive maintenance.
• Compact design, allowing multiple bays to be installed side by side.
• Eagle-hook locking system secures the drive in place.
• EMI grounding technology protects SSDs from static damage.
• Anti-Vibration Technology (AVT) minimizes noise and impact.
• Active Power Technology (APT) reduces power consumption when no SSD is present.
• PCIe-powered design eliminates unnecessary cables.
• Included thermal pad for improved heat dissipation.
• Optional SSD activity LED output for external monitoring.
• Industry leading 5-year warranty against all defects.
Specifications
Color: Black & silver
Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Compatible Drive Type: M.2 PCIe 5.0/4.0/3.0 NVMe SSD
Number of Drives: 1
Support Drive Length: 30mm – 110mm
Drive Bay: 1 x PCIe 5.0 x4 / x8 / x16 expansion slot
Host Interface: PCIe 5.0 x4
Power Input: Via PCIe
Transfer Rate: Up to 128Gbps (depending on hard drive speed)
Support SDD Capacity: No limitation
Drive Cooling: Metal heat dispersion with passive cooling
Structure / Material: Metal with partial ABS plastic
Dimension (W x H x D): 160 x 122 x 22mm
Product Net Weight: 181.5g
Package Net Weight: 260g
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
Package Contents: Device, user manual, screw, I/O faceplate
Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Opertating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
