Scan code: LN43825 Manufacturer code: R640L

4 Port SATA 3 (SATA 6Gb/s) Raid Card (0/1) Highpoint Rocket 640L Lite

Highpoint Rocket R640L Lite 4x internal Port SATA 6Gb/s HDD’s and SSD’s Controller via PCIe 2.0 x4 port

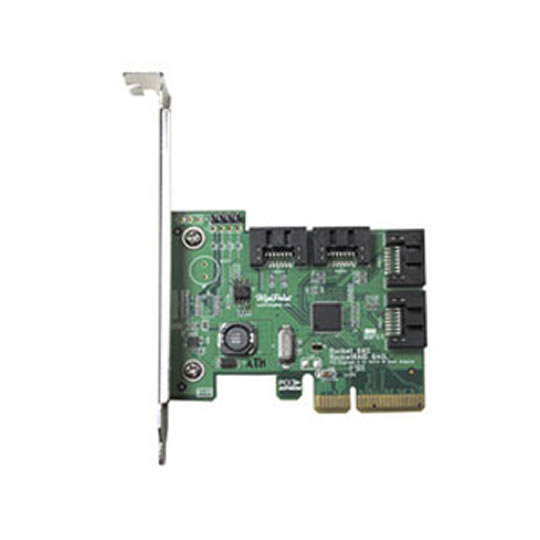

Thumbnail 1 : 4 Port SATA 3 (SATA 6Gb/s) Raid Card (0/1) Highpoint Rocket 640L Lite
4 Port SATA 3 (SATA 6Gb/s) Raid Card (0/1) Highpoint Rocket 640L Lite : image 1
Scan code: LN43825 Manufacturer code: R640L
£55.49Item due on 25 October 2019
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview HighPoint’s Rocket 600 Lite Series HBA’s are the Industry’s most affordable, high-performance, SATA 6Gb/s storage HBA’s, and are ideal for desktop PC’s and workstations. These Second Generation SATA 6Gb/s host controllers utilize the PCI-Express 2.0 host bus interface, and support non-RAID and RAID configurations of today’s fastest SATA 6Gb/s HDD’s and SSD’s. Features • PCI Express 2.0 x4.
• 4x SATA 6Gb/s Ports.
• Supports up to 4 SATA 6 GB/s and 3Gb/s HDD/SSD.
• Hot-Swap and Hot-Plug.
• AHCI compliant.
Specifications
Ports Total 4 Port
Ports Internal 4 Int Ports
Ports External
Connectors 4 x SATA III - 6Gb/s
Interface PCIe 2.0 x4
JBOD No
RAID Support
  • RAID 0
  • RAID 1
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
Additional Information
Scan Code LN43825
Model Number R640L
GTIN 643653640027
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Highpoint Rocket R640L Lite 4x internal Port SATA 6Gb/s HDD’s and SSD’s Controller via PCIe 2.0 x4 port is rated 4.0 out of 5 by 4.
Rated 1 out of 5 by from Doesnt work on Asus P8z-77 I have had 2 of these now and they both do the same thing, they disappear during file transfer, I have had troubleshooting help from Highpoint and they ended up saying its either faulty or my system does not support the chipset. So fantastic card when it works, overall useless for me.
Date published: 2019-01-16
Rated 5 out of 5 by from Does Exactly as you would expect No Problems!! My first complete PC rebuild for quite a while meant I had done all my research, costing, compatibility checks etc etc. So this time I was going to go for it no expense spared. if I need bigger and better I did. So after spending more than £4K on components, MOBO, Case etc I thought I had everything covered. Nope I had 2 x 2 M2. SSD, 2 x 2 SSD and 2 Mechanicla drive I ran out of SATA 6 ports. Seems I didn't do such a good job on the research. However purchased this card for Asus Z170 WS Motherboard with Windows 10. Slotted it in connected the additional cables (comes with four nice blue SATA leads) rebooted and hey presto windows updated he drivers and all working without any problems. A simple and quick solution.
Date published: 2016-10-12
Rated 5 out of 5 by from ( only have sata 2 ,pci-e 2.0 slots ) highpont rocket 640L small .included cables worked on ga-ex58-ud5 which has pci-e 2.0 slots only. works on Samsung ssd 850 pro 256 gb @ 525 read mb\s. corsair force lx 128 gb @ 526 mb\s read excellent service from scan
Date published: 2014-09-25
Rated 5 out of 5 by from Finally, a sata card that works. I have tried various cheaper makes in order to expand the number of sata ports in my computer. After finally taking the wise decision to invest more money, I now have a card that has worked from day 1 and has not given me any reasons to regret the money spent. It is absolutely brilliant for hot swapping HDDs. I have not the slow boot as my Asus motherboard has always been slow at booting and it is not something that worries me too much. Add to that the excellent service I get from Scan and I know that I can't ask for more.
Date published: 2013-09-14
  • y_2019, m_9, d_29, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_43825, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is this compatible with a Gigabyte GA-EX58-UD3R, SLi, Intel X58 Express Motherboard

I want to be able to add 2 x SATA 3 ports for an SSD (Samsung) Disk. Will this card be compatible with this motherboard and will the PCIe throughput support 6Gbs for the SATA 3 standard? I see some of these cards only support PCIe 1 or PCIe 2 x1, so I am assuming this spec (x4) will give the required throughput from the PCIe V2 x16 slot in the motherboard? I am currently using one of the PCIe slots for the graphics card, but the other slot is free Appreciate your advice before I order Thanks
Asked by: PhilCorley
The box says x16 too, I had 3Gbs and 6Gbs drives installed and the transfer speed was excellent until the card disappears and you have to reboot so is it compatible with your board? Good question, Highpoint could not tell me but It doesnt look like its compatible with mine. Asus P8-Z77
Answered by: ABall
Date published: 2019-03-24

Does this card support non-raid volumes?

I note the specification says JBOD - no. Can I connect 4 drives and have them presented to the OS as 4 separate volumes? ie not a RAID array Just a Bunch Of Disks? TIA Mike
Asked by: Twanky
Yes this is exactly how i used it.
Answered by: ABall
Date published: 2019-03-24

Can I install two of these cards into my pc?

Asked by: Capatain
Hello, Providing you have the PCIe slots available and suitable power you should be able to install multiple of these. Regards,
Answered by: JackB
Date published: 2018-03-22
