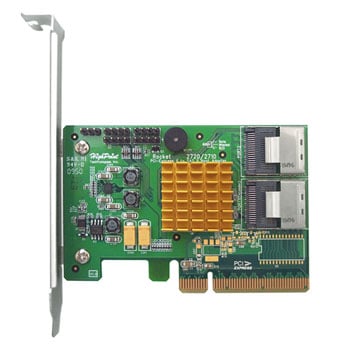

HighPoint Rocket 2720SGL Internal 8x SATA/SAS 6Gb/s HBA’s Controller (None-Raid) PCI-e

HighPoint Rocket 2720SGL Internal 8x SATA/SAS 6Gb/s HBA’s Controller (None-Raid) PCI-e

Highpoint
Scan code: LN43593 Manufacturer code: R2720SGL Request call
£159.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The Rocket 2700 Series HBA’s were designed with budget conscious SMB’s and solutions providers in mind, delivering robust, easily integrated SAS 6Gb/s port-connectivity at an unbeatable price.

Each Rocket2700 HBA supports up to 8 SAS/SATA hard drives and SSD’s, and are powered by a PCI-Express 2.0 x8 host interface. Rocket2700 HBA’s are fully backwards compatible with SAS/SATA 3 GB/s devices, PCI-Express 1.0 slots, and can be easily integrated into existing PC-based server and workstation environments. Features • High-Performance 6 GB/s SAS, PCI-Express 2.0 x8.
• 8 Internal Ports.
• Industry standard mini-SAS connectors.
• Large capacity disk support.
• Supports SAS and SATA HDD/SDD.
Specifications
Specifications
Ports Total 8 Port
Ports Internal 8 Int Ports
Ports External
Connectors 2 x SFF-8087
Interface PCIe 2.0 x8
JBOD No
RAID Support N/A
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by Works out-of-the-box on Linux For the avoidance of doubt, as there is much doubt about installing drivers for this card on Linux - it works on Linux (Ubuntu 14.04 in any case) without the need to install special drivers. The card is working fully via the standard Linux Kernel SAS driver, which was detected automatically on boot. I have not needed to attempt to install Highpoint's drivers at all. It's recognised all 8 drives (WD REDs) plugged into it, and is happy performing SMART tests on them. And that's all I want. There may be other features that Highpoint's drivers would offer. A web-based management interface for instance. One thing that would apply to other Highpoint cards, but not to this one, is if you wanted to enable hardware RAID support. I don't; I'm quite happy with Linux MDADM RAID. I haven't given it any hard work yet; that'll come with a raid-grow over the next few days; but so far, it's all looking good. NB: Installed on slightly-older BIOS-based system: No idea what would happen under UEFI. 23 October 2014
