Live Production Never Looked So Good!
Teradek - 'Orbit PTZ 4K' Wireless TX/RX Set
4K WIRELESS VIDEO & CONTROL FOR PTZ CAMERAS

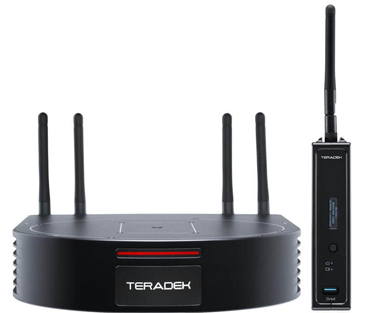

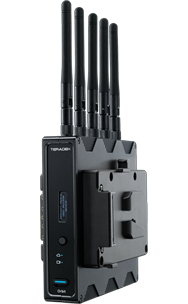

Introducing the magnificent ‘Orbit PTZ 4K’ Wireless TX/RX Set from Teradek.
Orbit PTZ 4K enables you to transmit zero-delay, uncompressed, 4Kp60 video and camera control commands from a range of up to 1000ft (305m). Orbit PTZ mounts securely underneath any PTZ camera and includes a looping power supply, giving you a flawless, long-range wireless solution for rapid deployment and wireless workflows.
Orbit PTZ utilises Teradek’s patented Joint Source Channel Coding (JSCC), and MIMO and OFDM technologies, to broadcast video across the unlicensed 5GHz band and 4.9GHz public safety band. This allows for much greater channel utilisation and handling of interference than competing H.264/HEVC transmission methods.
• Wireless 4K/HD HDR video with less than 1 ms latency
• Uncompressed, 10-bit, 4:2:2 image quality
• Up to 1,000 ft. of wireless range
• License-free 5GHz operation
• Transmit PTZ camera control commands via RS-232 and RS-422
• AES-256 and RSA 1024 encryption
• Supports all standard resolutions and frame rates, including HD and up to 4K60
• Integrated tally light
1000 ft. Wireless Range
VISCA & Panasonic AW Protocols
10-Bit 4:2:2 Image Quality
RS-232/RS-422 Camera Control
Real-Time Camera Control
zero-latencyOrbit PTZ boasts RS-232 and RS-422 connectivity for PTZ camera control. Camera commands travel over a zero-latency wireless link between transmitter and receiver, with support for VISCA and Panasonic AW protocols.
Pair transmitters and receivers with the simple press of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed, complete wireless freedom!
the best protection in the industryOrbit PTZ delivers the industry’s best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing.
Combined, these two technologies make sure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization.
Easy Mobile Configuration
embrace wireless freedomCommand your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android.
Pair transmitters and receivers with the touch of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed! Enjoy sheer wireless freedom!
The Tech Spec
|Features||Specification||Wireless Range||1000' / 304.8 m (Line-of-Sight)|
|# of Channels||13 (40 MHz)|
|Frequency Range||Non-DFS Frequencies 5.19 to 5.23 GHz 5.76 to 5.79 GHz Non-DFS Frequencies 5.27 to 5.67 GHz|
|Latency||< 1 ms|
|RF Power||19 dBm|
|Antenna Ports||4 x RP-SMA Female|
|Video Connectors||1 x HDMI Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output|
|Other I/O||1 x DE-9/DB-9 RS-232 Input/Output 1 x RJ45 RS-422 Input/Output 1 x USB Micro-B USB 2.0 Input|
|Embedded Audio||HDMI: 2-Channel SDI: 2-Channel|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Mounting||1 x 3/8"-16 Female|
|Dimensions||9.06 x 7.2 x 1.67" / 230 x 183 x 42.5 mm|
|Weight||35.2 oz / 998 g|
