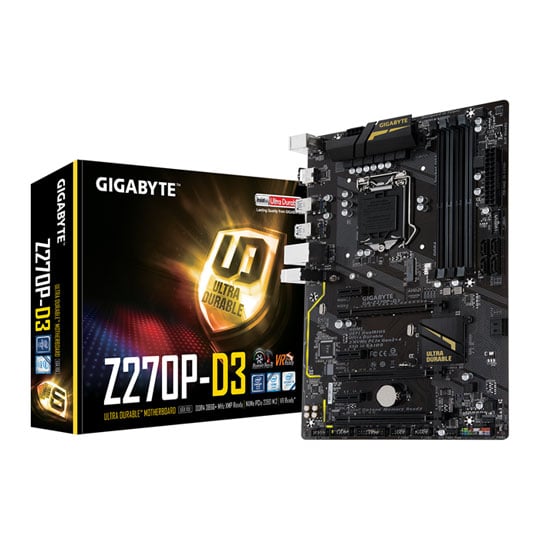

Gigabyte Intel Z270P D3 ATX Motherboard

Gigabyte Z270P-D3, Intel Z270, S 1151, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1 A, ATX

Gigabyte
Scan code: LN78953 Manufacturer code: GA-Z270P-D3 Request call
£90.49
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

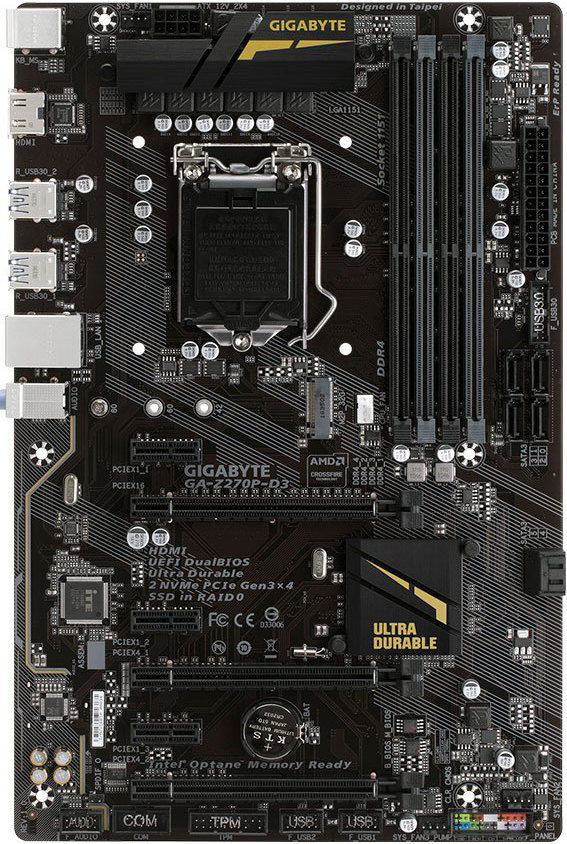

ATX GIGABYTE Motherboard with M.2 Slot. Z270 Intel Chipset

Z270 motherboard from GIGABYTE with ultra-durable protection

Gigabytes Z270P-D3 hosts an array of helpful tools. Cooling can easily be controlled through Smart Fan 5, sensing temperatures to ensure no overheating. It boasts M.2 ultra-fast speeds and dual NVMe PCIe SSDs in RAID 0 Support. 2-Way CrossFire allows for the Z270 board to host multi-graphic support and its audio output is backed up by high-quality capacitors and a noise guard (indicated via an LED trace path).

Intel Z270
Chipset

1151
CPU Socket

ATX
Form Factor

Smart Fan 5 Motherboard Tech

a motherboard built to handle gaming PC cooling

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Plus, it supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

GIGABYTE Smart Fan Software

a motherboard built to handle gaming PC cooling

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans - Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve - Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced Z270 BIOS Interface

Easy Motherboard Control and Manipulation with AORUS BIOS

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

M.2 Connector

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

Gaming Network

Killer E2500 Gaming Network + Intel Gigabit LAN

Killer E2500 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Give yourself the competitive edge: Optimize your network performance with the all-new killer Control Center

Anti-Sulfur Resistor Motherboard Design

A motherboard with true resistance and durability

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new meaning.

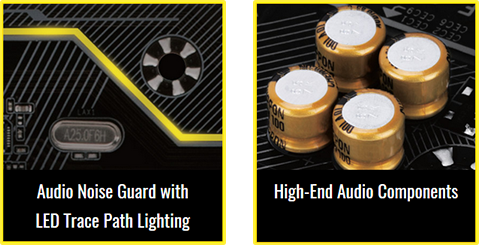

High Quality Onboard Audio

LED Noise Guard and Top End Components Embedded

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

*The below photos are for reference only

GIGABYTE APP Center

Easy Motherboard Manipulation and modifying

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Features:
EasyTune | System Information Viewer | @BIOS | 3D OSD

GIGABYTE Patented DualBIOS

Exclusive GIGABYTE Motherboard DualBIOS (UEFI) Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Z270X G-Connector

Easy to Install Motherboard "G-Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.

TriDef SmartCam Technology

Custom Gaming Stream Mod Software

To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

*Free 1 month TriDef SmartCam License.

To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality.

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners.
VR Gaming photo for reference only.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 2 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
GIGABYTE
Telephone:
08442449999
Customers also bought
Reviews
Questions & Answers

Does this board have additional Molex power?

If i wanted to run 4+ GPUs off this board, does it have any additional molex power sockets to plug the GPUs into.. i understand if you're using more than 2 GPUs it's better to use additional power from molex to take some of the load off the mobo traces.. if this doesn't can you recommend a board with 4+ PCIe that does have addtional molex power for GPUs?
Asked by: Pantana
Hello, There are no additional molex connections on this board. Regards,
Answered by: JackB
Date published: 2017-06-16
