Scan code: LN99510 Manufacturer code: X570 Aorus Ultra

Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard

Gigabyte X570 AORUS ULTRA, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, Intel GbE, WiFi, USB 3.2,ATX

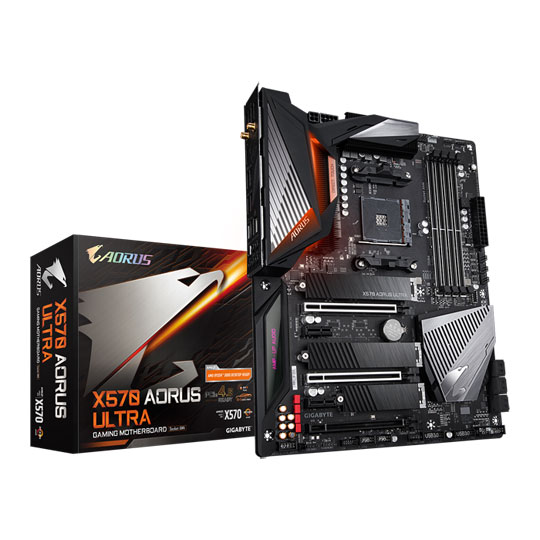

Thumbnail 1 : Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 Gigabyte AMD Ryzen X570 AORUS ULTRA AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99510 Manufacturer code: X570 Aorus Ultra
£297.49
From £14.28 / month (APR 14.9%)
Monthly Payment: £51.63
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £297.49
Total inc. interest: £309.72
Monthly Payment: £26.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £297.49
Total inc. interest: £320.47
Monthly Payment: £18.42
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £297.49
Total inc. interest: £331.43
Monthly Payment: £14.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £297.49
Total inc. interest: £342.70
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.43 / month (APR 15.9%)
Delivery Options
  • By DPD On 15th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

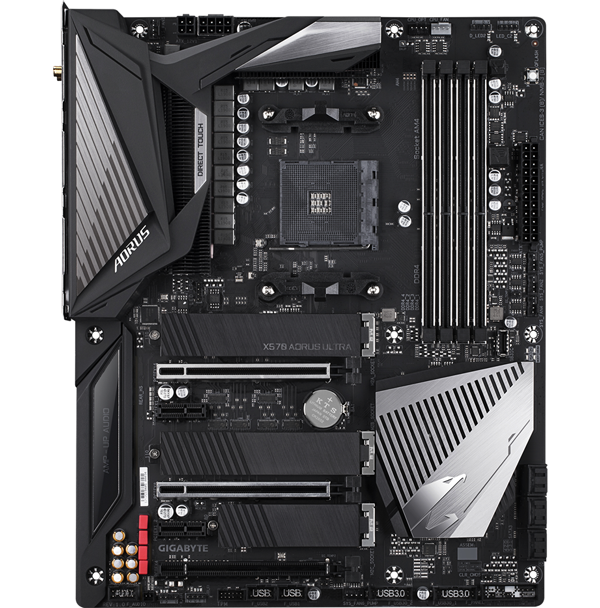

GIGABYTE X570 AORUS Ultra Motherboard for Ryzen CPUs

Aorus Ultra motherboard

Take your Ryzen CPU To the next levelTo unleash the full potential of the new 3rd Gen Ryzen CPUs, the X570 AORUS Ultra motherboard is a whole new chipset that utilises the best CPU power design with the best quality components alongside GIGABYTE R&D design capability, this is truly a motherboard to be pairing with the new ultra-fast Ryzen processors. High Durability and high quality manufactured components allow the X570 AORUS Ultra to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest WiFi design, to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

The X570 AORUS Ultra's Capability

Aorus Ultra motherboard

Quality Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS Ultra is a true beast among motherboards specifically designed for the new Ryzen series CPUs.

Aorus Ultra motherboard

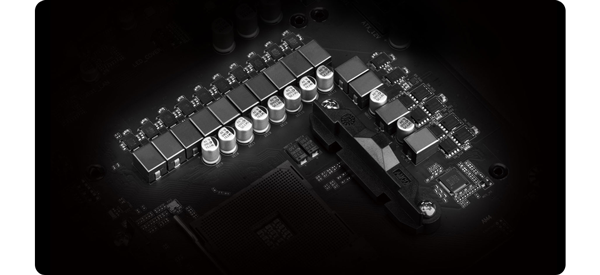

12 + 2 Direct Digital Power Design X570 AORUS ULTRA motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A.

Aorus Ultra motherboard

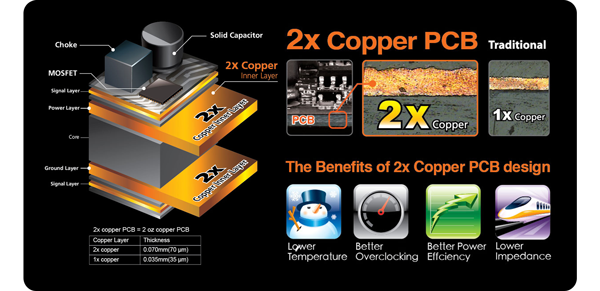

2X Copper PCB GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking./p>

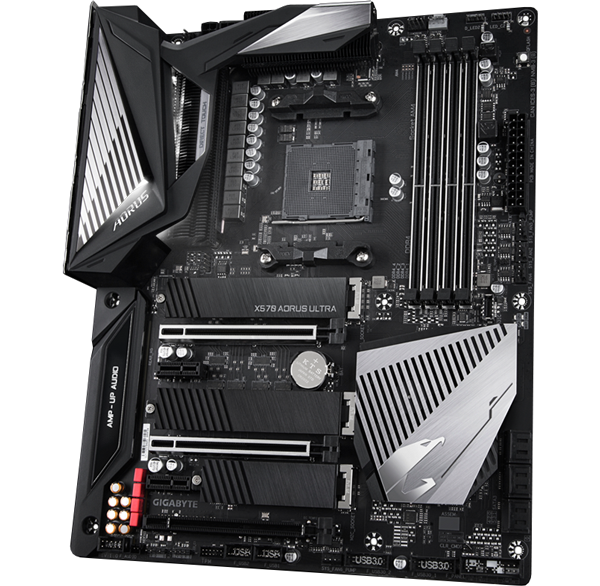

Style your Rig with AORUS RGB Fusion 2.0

Aorus Ultra motherboard

Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application that provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles.

Thermal Design to Ensure Maximum Performance

Aorus Ultra motherboard

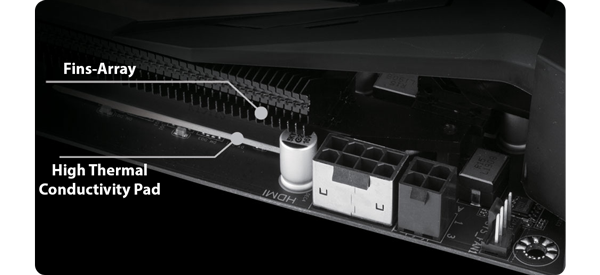

Protect your components from overheating X570 AORUS Ultra uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Aorus Ultra motherboard

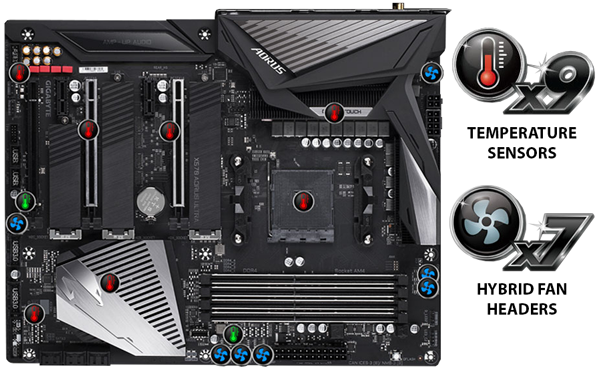

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

AORUS Triple PCIe 4.0 x4 M.2 Motherboard

m.2 pcie 4.0

Faster Speeds over previous PCIe 3.0 AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.

Next Generation Connectivity with Intel WiFi

Aorus Ultra motherboard

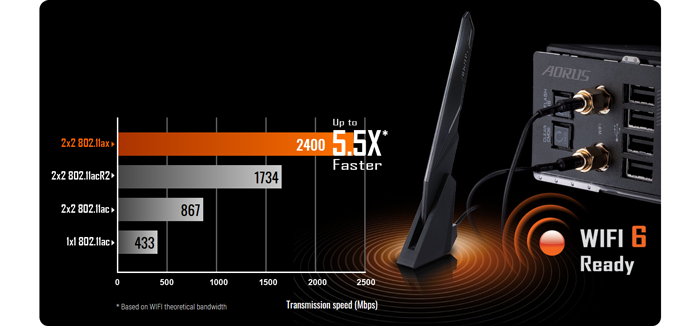

Faster Connection and wireless performance with Fewer Drops Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections and speeds of up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audiophile Grade Quality to Deliver Crystal Clear Sound

Aorus Ultra motherboard

HI-FI AUDIO WITH TOP QUALITY COMPONENTS For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB Signal-To-Noise Ratio and 112dB Total Harmonic Distortion + Noise. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. The TXC Oscillator provides precise time triggers to Digital-Analog Converters and WIMA Capacitors to deliver crystal clear and balanced sound.

AORUS Ultra-Durable Components

Aorus Ultra motherboard

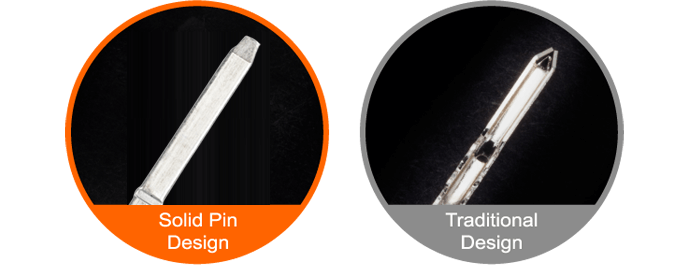

More metal quantity to sustain higher power and generated heat AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being ultra durable for a longer lifespan.

memory armour

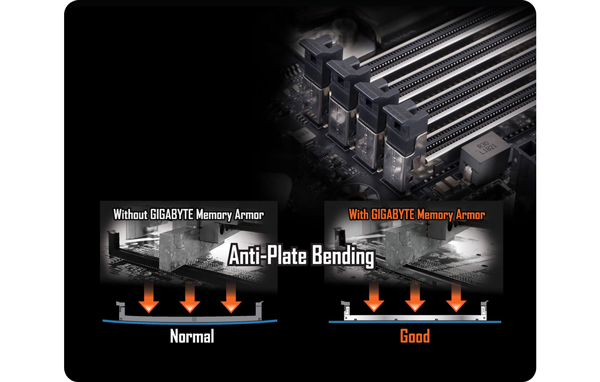

Ultra Durable Memory Armour AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

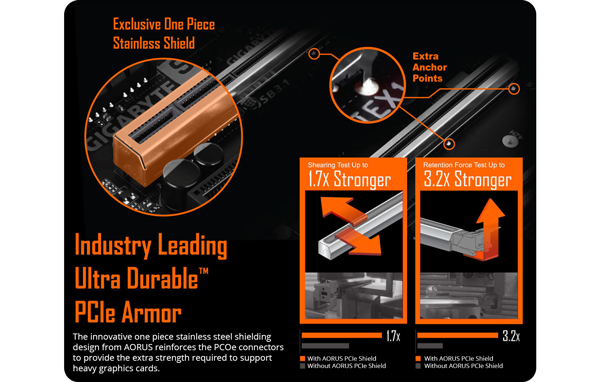

pcie armour

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

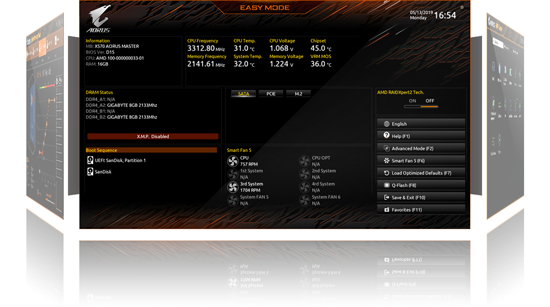

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570 AORUS ULTRA
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99510
Model Number X570 Aorus Ultra
GTIN 4719331806415
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
