Scan code: LN99511 Manufacturer code: X570 Aorus Master

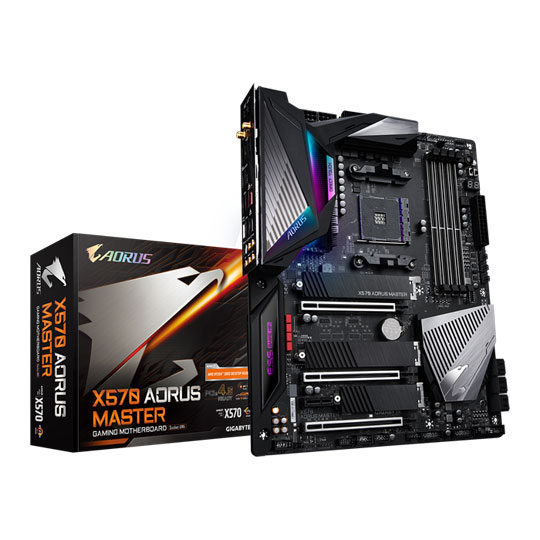

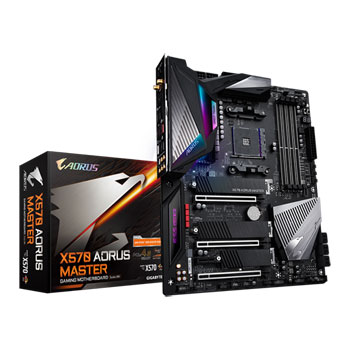

Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard

Gigabyte X570 AORUS MASTER, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, 2.5G/GbE/WiFi, USB 3.2, ATX

Thumbnail 1 : Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2 Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard : video thumbnail 3 Gigabyte AMD Ryzen X570 AORUS MASTER AM4 PCIe 4.0 ATX Motherboard : video thumbnail 4
Scan code: LN99511 Manufacturer code: X570 Aorus Master
£359.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £17.28 / month (APR 14.9%)
Monthly Payment: £62.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £374.80
Monthly Payment: £32.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £387.80
Monthly Payment: £22.29
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £401.07
Monthly Payment: £17.28
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £359.99
Total inc. interest: £414.68
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 13th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

GIGABYTE X570 AORUS Master Motherboard for Ryzen CPUs

Aorus Master motherboard

Take your Ryzen CPU To the next levelTo unleash the full potential of the new 3rd Gen Ryzen CPUs, the X570 AORUS Master motherboard is a whole new chipset that utilises the best CPU power design with the best quality components alongside GIGABYTE R&D design capability, this is truly a motherboard to be pairing with the new ultra-fast Ryzen processors. High Durability and high quality manufactured components allow the X570 AORUS Master to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest WiFi design, to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

The X570 AORUS Master's Capability

Aorus Master motherboard

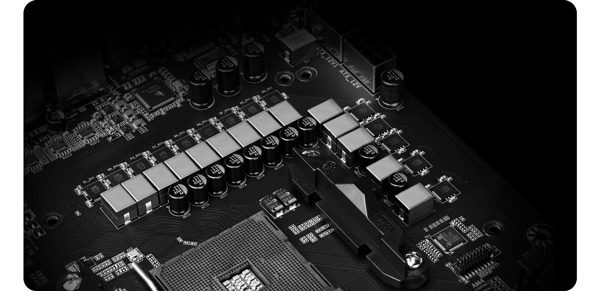

Quality Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS Master is a true beast among motherboards specifically designed for the new Ryzen series CPUs.

Aorus Master motherboard

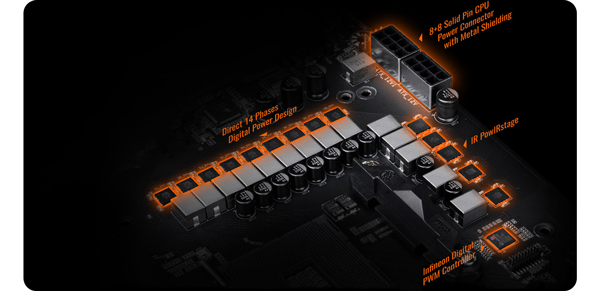

14 Direct Digital Power Design X570 AORUS Master motherboard uses latest new generation Infineon multiphase PWM controller, and a total 14 phase for vCore and SOC, all with IR 3556 PowIRstage MOSFETs which are capable of providing at least 50A of power from each phase, for a total of 700A.

Aorus Master motherboard

2X Copper PCB GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking./p>

Style your Rig with AORUS RGB Fusion 2.0

Aorus Master motherboard

Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application that provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles.

Thermal Design to Ensure Maximum Performance

Aorus master motherboard

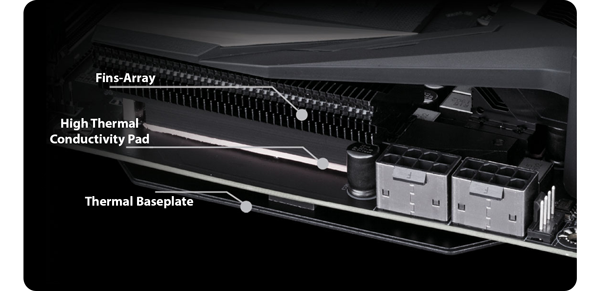

Protect your components from overheating X570 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Aorus Master motherboard

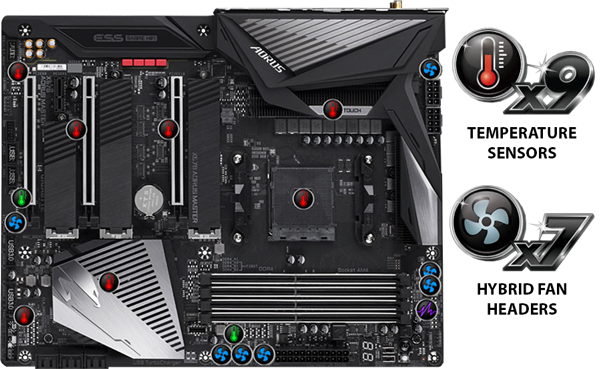

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

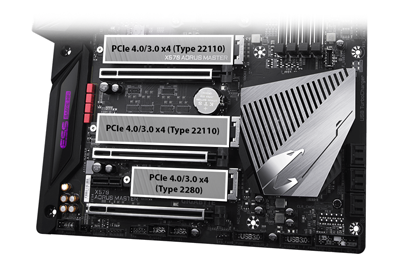

AORUS PCIe 4.0 x4 M.2 Motherboard

m.2 pcie 4.0

Faster Speeds over previous PCIe 3.0 AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.

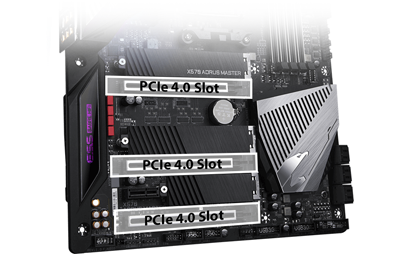

Motherboard Specifically Built for New PCIe 4.0

back

Get a boost in performance with new components X570 AORUS Master equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Slots, re-drivers, switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance.

Next Generation Connectivity with Intel WiFi

Aorus Master motherboard

Faster Connection and wireless performance with Fewer Drops Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections and speeds of up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audiophile Grade Quality to Deliver Crystal Clear Sound

Aorus Master motherboard

HI-FI AUDIO WITH TOP QUALITY COMPONENTS For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB Signal-To-Noise Ratio and 112dB Total Harmonic Distortion + Noise. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. The TXC Oscillator provides precise time triggers to Digital-Analog Converters and WIMA Capacitors to deliver crystal clear and balanced sound.

AORUS Ultra-Durable Components

Aorus Master motherboard

More metal quantity to sustain higher power and generated heat AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being ultra durable for a longer lifespan.

memory armour

Ultra Durable Memory Armour AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

pcie armour

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570 AORUS MASTER
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x BIOS switches
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x Voltage Measurement Points
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Intel (Gigabit LAN)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99511
Model Number X570 Aorus Master
GTIN 4719331805654
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Gigabyte X570 AORUS MASTER, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, 2.5G/GbE/WiFi, USB 3.2, ATX is rated 4.2 out of 5 by 11.
Rated 1 out of 5 by from Unreliable and Unstable This motherboard is an absolute mess. If you want to pair this up with a 3950x you need to be aware of some potential issues. These issues are not happening on each board but they're common enough. First it has a cold boot bug, BIOS regularly reset itself. Sometimes your computer won't wake up from sleep, sometimes you'll try to turn the computer on and it will take quite a few tries for motherboard to actually post. Next, it doesn't always gives the CPU cores enough power. If you are running AVX or AVX2 based instructions you'll see some of the threads are crashing. You can enable PBO or tinker with the voltage settings but you might need to go through a tidious process of finding the right settings. When you contact Gigabyte support all you get is "reset your BIOS and load optimized defaults", that's it. I also recently start having some USB power issues too, all usb devices cutting power as soon as I run a heavy load. You might think maybe RAM is faulty or CPU or PSU etc. I tested all of them individually. I even got the CPU RMA'd with AMD. Everything else works fine. I added an image and a video to this review. Image shows crashed threads on Core 13 and video is a great example of what happens if you run an AVX2 test on stock settings. (no overclock, no xmp, no pbo). I will RMA this motherboard as soon as I decide what to buy instead of this. If you're reading here probably you didn't buy it yet so you still have a chance. Maybe look for a different brand/model.
Date published: 2020-05-26
Rated 1 out of 5 by from Long-running issues waking from sleep This looks like the perfect board - excellent VRMs, 3 M.2 slots, great audio. But the issues start before you even get to installing OS: * Out of the box, input devices were freezing on me, both mouse and keyboard, irrespective of the USB port they were plugged into. There are various suggestions on how to solve this (60/64 emulation on, disable CSM, the list goes on but whether or not it works for you is an open question). * There are sleep issues which you can read about in the Gigabyte forums. This is not limited to this board in particular, the entire x570 Aorus range suffers from weird sleep behaviour and in my case, the computer enters a restart freeze with fans blaring when waking with error code 21 - this is a reserved code not described in the manual. The only solution to that is to completely cut power supply for at least 10 seconds, after which the system can be started but will revert to default settings. There seems to be some relation to RAM settings, but even running those without XMP at 2133 triggers this behaviour occasionally. In short, good looking hardware with unreliable firmware that hasn't been fixed since last year, I recommend you grab an Asus board instead (or ASRock if you don't need front USB-C or don't have a long GPU) and call it a day. This board isn't worth it.
Date published: 2020-04-20
Rated 5 out of 5 by from Perfect! Would highly recommend this. Runs 3900x as it should fast boot times and the bios is simple and easy to navigate. would recommend!
Date published: 2020-04-20
Rated 4 out of 5 by from Very Good Motherboard Very good motherboard, works well with the 3900X, as you would expect!!! Runs the trident z neo memory (F4-3600C16Q-64GTZNC), XMP works out of the box, but you need the latest bios. Very satified with this purchase.
Date published: 2019-08-27
Rated 5 out of 5 by from Very good high end x570 Motherbaord Overall, I've been very satisfied with this board. It had all the features I wanted, and stood out from the rest by having excellent VRM and heatsinks, 3 M.2 Slots, and a large number of USB ports and headers suitable for my case. Gigabyte has also been quite good with BIOS updates which has improved the board since launch. The sound quality from the ESS Sabre DAC is also excellent. I would recommend the board for anyone looking for a high end x570.
Date published: 2019-08-17
Rated 5 out of 5 by from The price goes towards the quality Gigabyte have outdone themselves on the 570 series motherboards this generation and while the master may be a steep price for some, the money went towards features such as: 14 dedicated phases and no doublers. Backplate for strength. Fin heatsinks, the VRMs are really beefy but it's nice to see that despite this, they still added great cooling to them. Awesome PWM pin layout (Some boards put the headers in ridiculous places). Quiet chipset profiles (A concern for many buying x570). Fixed I/O shield. M.2 drives have heatshields. I highly rate the board, the BIOs is clean and simple to navigate, a few updates on the BIOs and it will be a perfect 10.
Date published: 2019-08-08
Rated 5 out of 5 by from Awesome Motherboard with great support! After having issues with another manufacturer being really bad with customer support and bios support(they shall not be named), i decided to go back to Gigabyte for this round of upgrades, and boy am i glad i did! The Aorus x570 Master is a premium motherboard, which means it comes with premium features, infact it even has a thunderbolt header, which was a very nice surprise! I love how each M.2 slot comes with heatsinks that have thermal pads installed, and it has a whopping 7 PWM/DC 4 pin fan headers, 2 standard RGB headers, and 2 Addressable RGB headers! I looked at 5 different boards before deciding on this one, it was the VRM design that sold me on it, it doesn't use doublers! One last thing before i end this review, the bios support for this board is stellar, with updates so far being released every few days, and the Gigabyte rep being very active on both the Gigabyte forums, and on the AMD reddit sub, what more could you ask for?? <3 TL;DR, buy this board, it has excellent features, with excellent power delivery, and is backed up by active support from Gigabyte!
Date published: 2019-08-03
Rated 5 out of 5 by from Best motherboard! Very high quality board. Expensive but worth every penny. Highly recommended.
Date published: 2019-08-03
