Hot Seller
Scan code: LN99508 Manufacturer code: X570 Aorus Elite

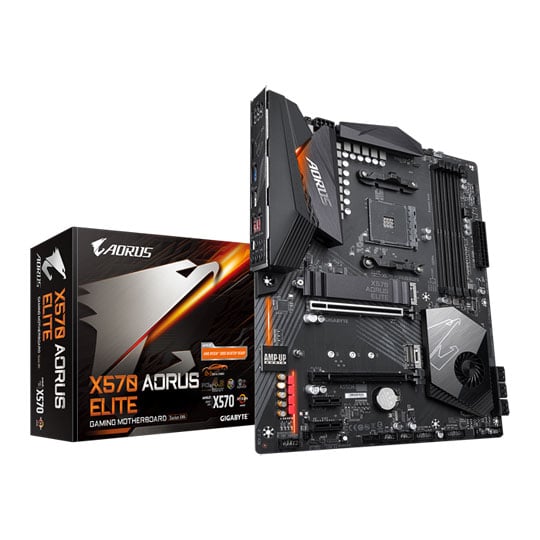

Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard

Gigabyte X570 AORUS ELITE, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.2 Gen2 A, ATX

Thumbnail 1 : Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 Gigabyte AMD Ryzen X570 AORUS ELITE AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99508 Manufacturer code: X570 Aorus Elite
£198.98
Order now and get it tomorrow, Thu 22nd Oct
From £17.87 / month (APR 14.9%)
Monthly Payment: £17.87
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £198.98
Total inc. interest: £214.36
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 22nd Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

GIGABYTE X570 AORUS Elite Motherboard Built for Ryzen CPUs

Aorus Elite motherboard

Get Next Gen Performance with your Ryzen 2nd & 3rd Gen CPUsThe X570 AORUS Elite motherboard is a whole new chipset that utilises the best of the new 3rd Gen Ryzen CPUs with the best quality components alongside GIGABYTE R&D design capability, this is truly a motherboard to take your new ultra-fast Ryzen processors to the highest possible level. High Durability and high quality manufactured components allow the X570 AORUS Elite to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Greater Power Load with the X570 AORUS Elite

Aorus Elite motherboard

Quality Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS Elite is a true beast among motherboards specifically designed for the new Ryzen series CPUs.

Aorus Elite motherboard

12 + 2 Direct Digital Power Design X570 AORUS Elite motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A.

Aorus Elite motherboard

2X Copper PCB GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Style your Rig with AORUS RGB Fusion 2.0

Aorus Elite motherboard

Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application that provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles.

Thermal Design to Ensure Maximum Performance

Aorus Elite motherboard

Protect your components from overheating Enlarge heatsink surface area improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic. The thick thermal pad has an improved thickness of 1.5mm and gives superior heat dissipation of MOSFETs.

Aorus Elite motherboard

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

AORUS PCIe 4.0 x4 M.2 Motherboard

m.2 pcie 4.0

Faster Speeds over previous PCIe 3.0 AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.

Next Generation Connectivity with Intel GbE LAN

Aorus Elite motherboard

Faster Connection and traffic management with Fewer Drops Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

AORUS Quality Audio Output

down

High-End WIMA & Audio CapacitorsThe AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors which are suited for high-grade audio equipment.

up

Audio Noise GuardAORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

AORUS Elite Durable Components

Aorus Elite motherboard

More metal quantity to sustain higher power and generated heat AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being Pro durable for a longer lifespan.

memory armour

Ultra Durable Memory Armour AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

pcie armour

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570 AORUS ELITE
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99508
Model Number X570 Aorus Elite
GTIN 4719331806439
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Loading Please Wait

Please wait . . .

Gigabyte X570 AORUS ELITE, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.2 Gen2 A, ATX is rated 4.5 out of 5 by 33.
Rated 5 out of 5 by from great board bad retention bracket i am a gigabyte fan boy to be honest and all my baords have been gigabyte from sniper to x99 , but this was my first amd board the board seems basic to me compared to others i have had but dont get me wrong it does everything i need and its great ,one thing for me is the really really bad retention bracket that holds the cpu in place its is totally (with out swearing )useless i did few bench,marks when built this and i changed the paste but when it come to remove my clc280 cooler head off to repaste it ripped cpu out of baord (with very very little force ),yes the arm was down and locked ,i thought was this just unlucky so did few more bench and then repasted again and even with heat cycleand slowly twissting my cooler header pump has seen on you tube it still came of the board luckily i did pull straight out and not on any sort of angle so each time i checked pins and luckily ok ,amd need to really sort this out has it is terrible i dont no how other makes of baord are but yes mine was really bad ,it nearly made me go back to intel but for great cpu (3900xt)
Date published: 2020-08-04
Rated 5 out of 5 by from Fantastic value X570 board with great VRMs There is really not that much I can say about this board apart from it is fantastic in the build process and it looks stunning in a finished build. It has loads of USB ports on the back including one dedicated port for Bios flash. The VRMs stay cool and they are of decent quality for this price point it does blow the cheaper MSI boards out of the water when it comes down to VRM cooling and performance. It comes with 2 M.2 Ports so if you really want a non 2.5"/3.5" build its possible. The top NVME M.2 comes with a nice shroud which goes on top which keeps the NVME cool when its under load when copying files across or loading up assets in modern games. BIOS is really well done, has all the overclocking features you could ask for on a X570 and paired with a great CPU like the AMD Ryzen 3700X or 3900X you cannot go wrong with how much performance this offers. If you want a nice looking board to go in a stylish case like the Sahara P35 I would highly recommend getting this. To note, the lights are not stuck on orange they are RGB and can be controlled through Gigabytes AORUS software which can be downloaded from the manufacturers website. Worth the £180-190 price tag.
Date published: 2020-08-03
Rated 1 out of 5 by from This product is trash I bought this motherboard as I though it is good one. Big mistake its trash!!!! Send one to scan witj problems get another one same problems. Avoid!!!! Pc freez on start. Cant start bios with crosair ram memory!! Wtf is this spend 2 days try find out why its not working. I have to send it back again. I will never buy it again. Im realy angry as I will wait another week for new one or for a refund what waist of time and money.
Date published: 2020-06-30
Rated 1 out of 5 by from problem with 3200mhz XMP bios is a mess and keep reset to 2133mhz and cold boot. try talk scan chat live and slow response hopeless! anyone know what problem? please help us!
Date published: 2020-05-22
Rated 3 out of 5 by from Good board but a real headache The bios is a mess i had to set the ram to 1.35v cause it had it at 1.2v what is not enough juice. And you can only do this in the overclocking then i had to set all the timings manually just to get it to 3200. The xmp is useless you change the speeds it restarts and stays the same i would not advice this board to anyone that are beginners. At first it wasn't reading 16g of my ram i have 32g. Kept getting a ram training error 3 hours of messing about then i got it all to read. Other then that it is a good board just be aware it's gonna take up a lot of your time. Thank you scan for getting my parts to me as quickly as you could.
Date published: 2020-05-16
Rated 5 out of 5 by from new build purchased these products with the help of scan staff, installed and setup system, very surprised at how fast and well the system run, now got a computer that will serve me well into the future
Date published: 2020-04-26
Rated 5 out of 5 by from fully featured modern motherboard I selected this motherboard as my upgrade after 10 years. It is a 570 board which runs pci-e 4.0 ,as I have read this isnt going to be that significant yet because even the fastest pci-e 4.0 m.2 ssds available don't show a massive improvement in real world performance as apposed to the older pci-e 3.0. However I have found this board to work perfectly fine. I bought a riser card by Gigabyte for wi-fi but apparently there is a variant with this onboard.
Date published: 2020-04-04
Rated 5 out of 5 by from Great Mobo Looks pretty, all those lovely addressable leds, shame the Aura software is grim. I would imagine it is very overclockable, although I have not done this yet; I haven't reset up my VR rig.
Date published: 2020-03-16
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_32
  • loc_en_GB, sid_99508, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does this motherboard have NVIDIA SLI support?

I want to use two rtx 2080 ti with it... so I need SLI support
Asked by: Shamit
Unfortunately this board does not support SLI. I would not recommend SLI these days anyway for gaming as Nvidia has killed it a while ago. Many modern games do not support it and many entry level RTX cards do not have an SLI connection. You can use NVLink though which is the same as SLI and different connection which delivers massive bandwidth gains over SLI. The only board I can recommend that is one product tier higher than this is the ASRock Taichi X570 which does support NVLink for those twin 2080Ti's. Best to research and google what options you have. Hope this helps and good luck.
Answered by: GamerJames
Date published: 2020-08-04

Does this MoBo have usb 2.0 headers?

Asked by: lolmage
Yes it does, it has 2 USB 2.0 headers on the left of the 3.0 header. Those headers are located at the bottom of the motherboard like where your power switch and restart switch headers will be.
Answered by: GamerJames
Date published: 2020-08-03
