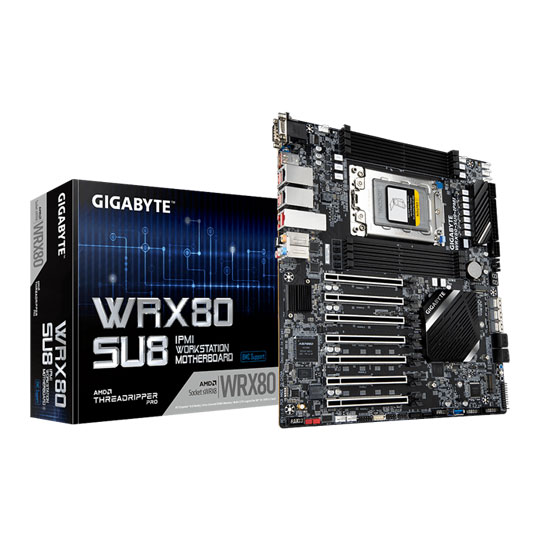

Gigabyte AMD Ryzen WRX80 PCIe 4.0 CEB IPMI Workstation Motherboard

Gigabyte WRX80-SU8-IPMI Workstation, AMD WRX80, sWRX8 4094 Socket, DDR4, PCIe 4.0, Dual M.2, 2xGbE/2x10GbE, CEB

Thumbnail 1 : Gigabyte AMD Ryzen WRX80 PCIe 4.0 CEB IPMI Workstation Motherboard Thumbnail 2 : Gigabyte AMD Ryzen WRX80 PCIe 4.0 CEB IPMI Workstation Motherboard Thumbnail 3 : Gigabyte AMD Ryzen WRX80 PCIe 4.0 CEB IPMI Workstation Motherboard Thumbnail 4 : Gigabyte AMD Ryzen WRX80 PCIe 4.0 CEB IPMI Workstation Motherboard
Scan code: LN115301 Manufacturer code: WRX80-SU8-IPMI
£749.99
Order now and get it tomorrow, Wed 27th Oct
From £25.63 / month (APR 14.9%)
Monthly Payment: £67.33
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £749.99
Total inc. interest: £807.95
Monthly Payment: £36.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £749.99
Total inc. interest: £863.95
Monthly Payment: £25.63
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £749.99
Total inc. interest: £922.33
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £18.73 / month (APR 15.9%)
Delivery Options
  • By DPD On 27th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

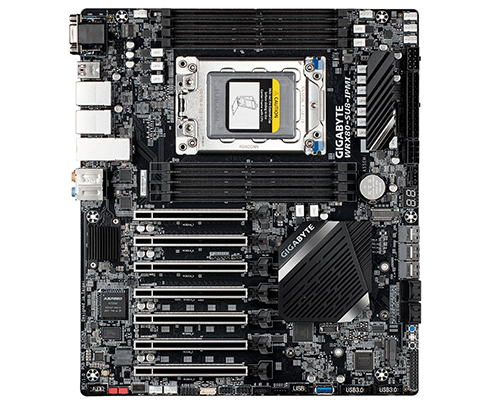

WRX80 AMD Ryzen CEB Workstation Motherboard from Gigabyte

MI True Wireless Earbuds Basic 2

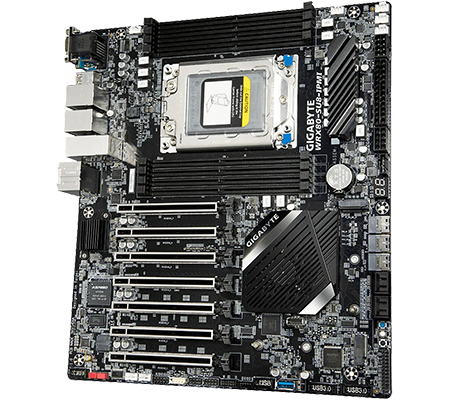

BRING TRUE POWER TO YOUR WORK Fuel your workload with extreme power with the WRX80 Workstation Motherboard from Gigabyte. This impressive CEB board offers a wealth of connectivity, with 8 x DIMMs and impressive Dual Intel® Server 10G LAN and GbE LAN. It also provides 7 PCIe 4.0 x16 Slots for Multi-GPU along with support for DirectX® 12. With this, your workflow will be unmatched.

WRX80AMD Chipset

CEBForm Factor

Performance like no Other

4K Recording

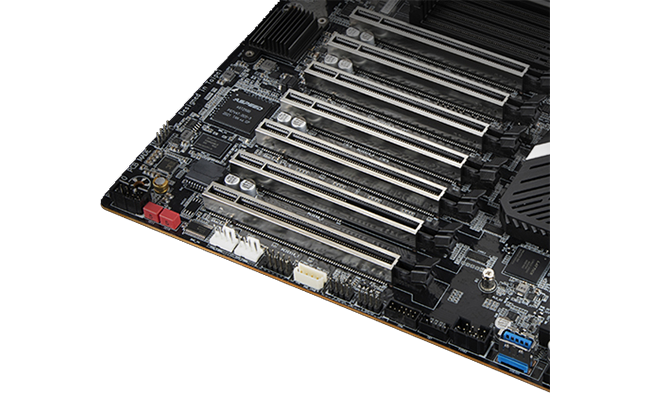

PCIe 4.0 DesignWRX80-SU8-IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.

Multiple Storage Interface

4K Recording

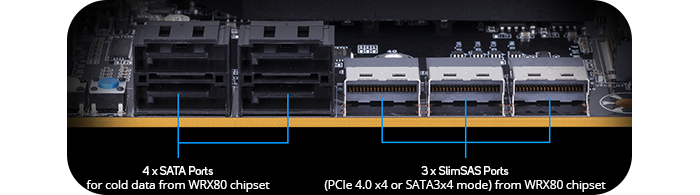

4 SATA3 Ports + 3 SlimSAS PortsPlentiful NVMe and SATA interface can fulfill your hot and cold data processing requirement at once.

Dual-Mode M.2 Slot Design

4K Recording

PCIE 4.0 X4 OR SATA MODEUtilise support for both PCIe NVMe + SATA SSDs. This impressive motherboard is built with dual M.2 Slots with a PCIe NVMe + SATA dual-mode design. It offers flexible storage configurations and can easily adapt to most of your needs.

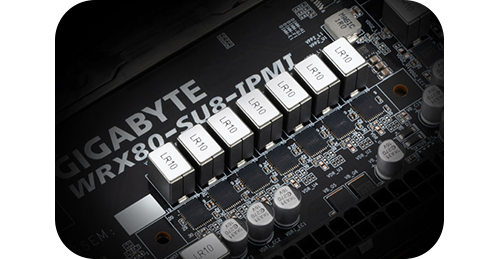

Carefully Selected Components

4K Recording

EFFICIENCY AT ITS BESTGIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

Versatile Connectivity Options

4K Recording

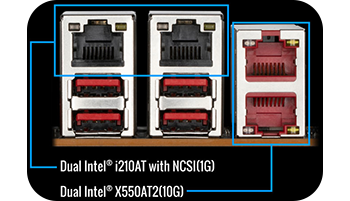

Dual Intel® Server 10GbE and GbE LANThe Intel® X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature. It is perfectly designed for media centers, workstations and virtual machine requirement.

The i210AT supports Windows server OS with fault tolerance, link aggregation, load balancing feature. The network interface is shared with IPMI management with NCSI. User can choose data transferring or remote management on GbE LAN by their requirement.


back

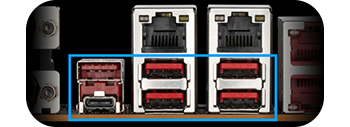

Connecting the Future - USB Type-C™AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1.


back

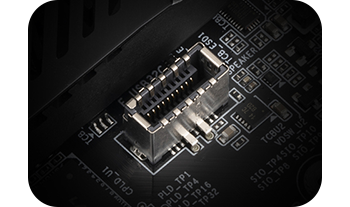

USB 3.2 Gen2 Type-C™ Front Panel ConnectorThe onboard USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

GIGABYTE Remote Management

4K Recording

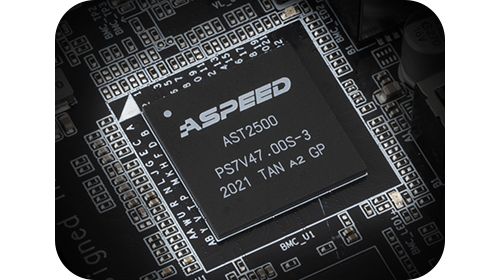

ASPEED AST 2500 BMCWith ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface. The i210AT supports Windows server OS with fault tolerance, link aggregation, load balancing feature. The network interface is shared with IPMI management with NCSI. User can choose data transferring or remote management on GbE LAN by their requirement.

Key Features Include:
Redfish Enable | IPMI 2.0 Implementation | Full Config via Web Interface | Hardware Status Monitor
Remote Power Control | Remote BIOS/Firmware Update | Remote KVM | Event Log & Reporting | Easy User Management

Be Immersed in Stunning Sound

4K Recording

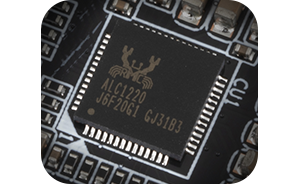

ALC 1220 120dB SNR HD AudioThe ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.


back

True High-Fidelity MusicPaired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever. To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.

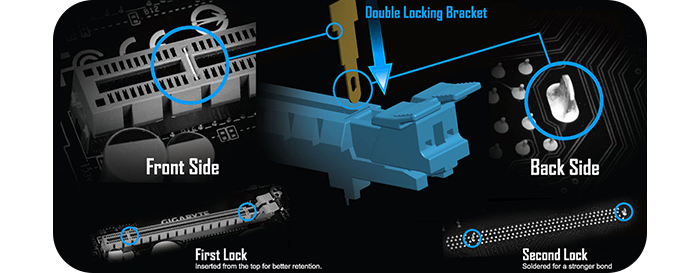

GIGABYTE Patented Double Locking Bracket

4K Recording

Specifications
Core Specifications
Edition WRX80-SU8-IPMI
Form Factor CEB
CPU Socket
Chipset WRX80
RAM Memory Support
Memory Type DDR4 ECC Registered
Memory Channel Octa (8)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz)
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen4x4/SATA3
  • 6 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x8
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x PMBUS Header
  • 2 x SATA DOM SGPIO connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x SlimSAS Connector
  • 1 x Speaker
  • 6 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • Dual Wired 10G LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel® I210AT (Gigabit LAN)
  • 2 x Intel® X550 (10GbE LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 2 x 10GbE RJ45
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 1 x Serial (COM)
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 267 mm
Note
Additional Information
Scan Code LN115301
Model Number WRX80-SU8-IPMI
GTIN 4719331811945
