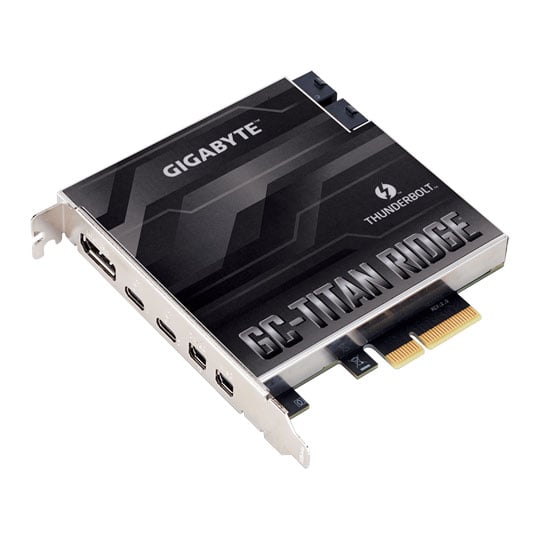

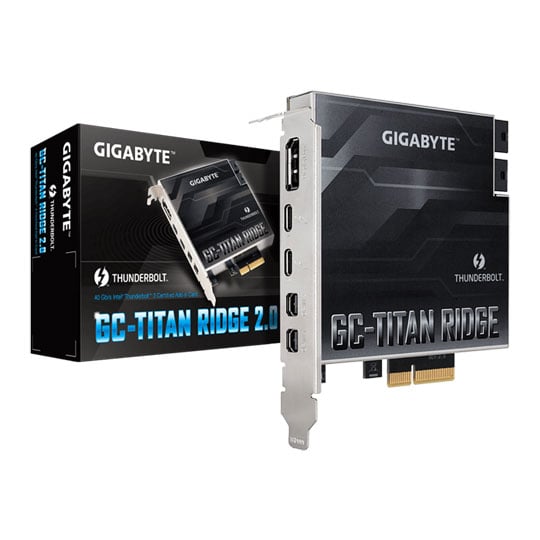

Gigabyte Titan Ridge Rev.2.0 Thunderbolt 3 PCIe Add In Card
Gigabyte Titan Ridge 2.0 AIC, Thunderbolt3 PCIe 3.0 (x4), 2x Type-C, DisplayPort 1.4, 2x Mini-DisplayPort
- By DPD On 25th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
40 Gb/s Intel® Thunderbolt™ 3 Certified Add-in Card
The GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.
Dual Thunderbolt™ 3 – The Fastest 40Gb/s Single-Wire Connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.
Daisy-Chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.
Please Note: Support for Intel Z490 & H470 Chipsets by PCH PCIe x4 slot only.
• Intel® DSL7540 Thunderbolt™ 3 controller.
• Dual Thunderbolt™ 3 Ports (USB Type-C™).
• Max Bandwidth 40 Gb/s.
• DisplayPort 1.4 Capable with 4K Video Throughout.
• Daisy-chain up to 12 Devices (6 devices per port).
• Support PD3.0 standard (up to 100W).
Please Note: Support for Intel Z490 & H470 Chipsets by PCH PCIe x4 slot only.
