Gigabyte NVIDIA GeForce RTX 5060 GAMING OC V2 8GB Blackwell Graphics Card
Gigabyte NVIDIA GeForce RTX 5060 GAMING OC V2 8GB GDDR7 Ray-Tracing Graphics Card, DLSS 4, 3840 Cores, 2602 MHz Clock
Email me when the availability or price changes
Gigabyte GeForce RTX 5060 GAMING OC V2 8G Graphics Card
The Gigabyte GeForce RTX 5060 GAMING OC V2 8G is an ATX graphics card powered by NVIDIA's Blackwell architecture, combining 8GB of GDDR7 memory with a 128-bit memory interface and a factory-overclocked 2602MHz core clock. With PCIe 5.0 connectivity, 3840 CUDA cores and support for resolutions up to 7680 x 4320, it delivers a capable platform for modern gaming and GPU-accelerated creative workloads.
Built around Gigabyte's WINDFORCE cooling system, the RTX 5060 GAMING OC V2 8G uses Hawk fans, alternate spinning, 3D Active Fan technology, a copper plate, composite copper heat pipes and server-grade thermal conductive gel to manage GPU, VRAM and MOSFET temperatures. The card also features a reinforced metal backplate, an 8-pin power connection and three DisplayPort 2.1b outputs alongside HDMI 2.1b for versatile multi-display setups.
Factory-Overclocked Performance for Faster Gaming
The GeForce RTX 5060 GPU features 3840 CUDA cores and a 2602MHz core clock, compared with the 2497MHz reference clock, providing increased clock speed straight out of the box. The 8GB of GDDR7 memory operates at 28Gbps across a 128-bit interface, while PCIe 5.0 provides a high-speed interface between the graphics card and compatible motherboard.
AI-Enhanced Graphics with NVIDIA Blackwell
NVIDIA Blackwell architecture combines fourth-generation Ray Tracing Cores and fifth-generation Tensor Cores with neural rendering technologies for advanced gaming and creative workloads. Support for NVIDIA DLSS 4.5 with Dynamic Multi Frame Generation enables AI-assisted frame generation and image quality enhancements, while NVIDIA Reflex technologies are designed to reduce latency for responsive gameplay.
Advanced WINDFORCE Cooling for Sustained Performance

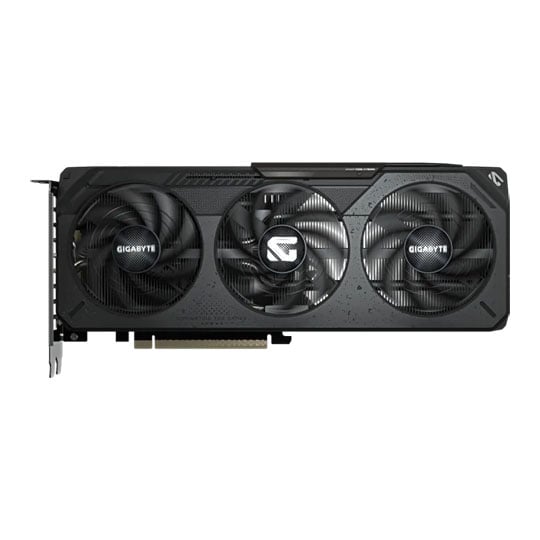

The WINDFORCE cooling system combines Hawk fans, alternate spinning, 3D Active Fan technology, a copper plate and composite copper heat pipes to efficiently transfer and dissipate heat. The Hawk fan design is engineered to increase air pressure and airflow while reducing air resistance and noise, while 3D Active Fan enables semi-passive operation by stopping the fans under low-load conditions. Server-grade thermal conductive gel provides contact across critical components including the VRAM and MOSFETs.
Reinforced Construction for Long-Term Durability

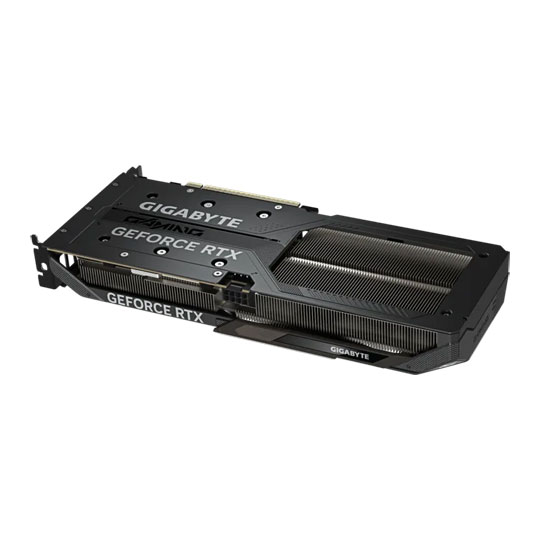

A reinforced metal backplate is securely fastened to the I/O bracket to provide additional structural integrity, while the GAMING series exterior combines a multi-layered design with an armour-inspired mechanical aesthetic. Ultra Durable components include lower RDS(on) MOSFETs, metal chokes and lower ESR solid capacitors, while the PCB is manufactured using a fully automated process designed to eliminate sharp solder protrusions.
Flexible Display Connectivity for Multi-Screen Setups

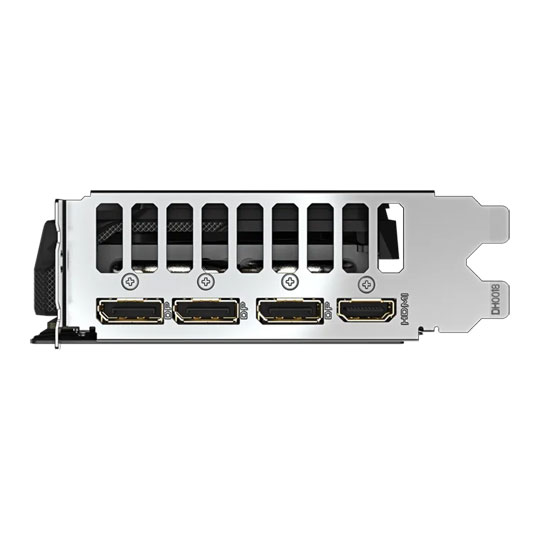

The RTX 5060 GAMING OC V2 8G provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four simultaneous displays. A maximum digital resolution of 7680 x 4320 makes the card suitable for high-resolution displays, while NVIDIA technologies including RTX Video, NVIDIA Broadcast and NVIDIA Studio provide additional GPU-accelerated capabilities for video and creative applications.
• Powered by NVIDIA Blackwell Architecture.
• 2602MHz factory-overclocked core clock.
• 8GB GDDR7 memory at 28Gbps.
• 128-bit memory interface.
• 3840 CUDA cores.
• PCIe 5.0 interface.
• WINDFORCE cooling with Hawk fans.
• 3x DisplayPort 2.1b and 1x HDMI 2.1b.
• 550W recommended power supply.
