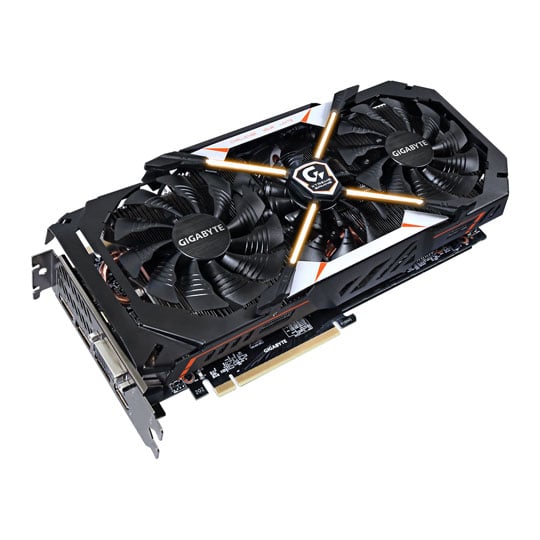

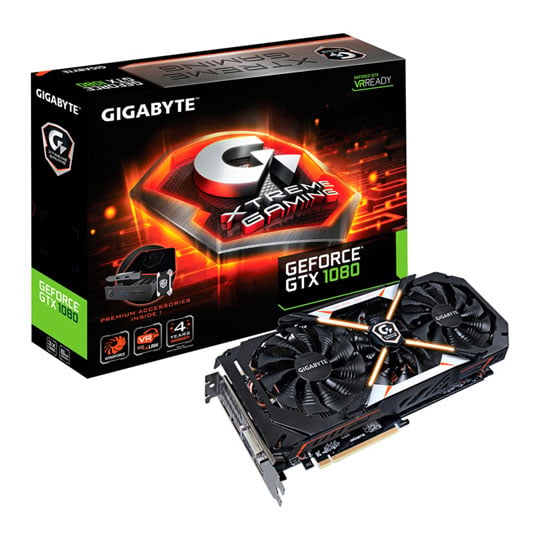

Gigabyte NVIDIA GeForce GTX 1080 8GB XTREME GAMING with PREMIUM PACK
Gigabyte GeForce GTX 1080 XTREME GAMING PREMIUM 8GB GDDR5X VR Ready Graphics Card, 2560 Core, 1759 MHz, 1898 MHz Boost
Gigabyte GeForce GTX 1080 XTREME GAMING
GIGABYTE XTREME GAMING GTX 1080
This GIGABYTE gaming graphics card is their XTREME GAMING 1080. This specific card varies from other GIGABYTE XTREME GAMING 1080s due to the Premium Pack that's included - the pack contains a variety of useful GPU tools. Crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Base on the revolutionary NVIDIA Pascal GPU architecture and cleverly designed for VR. It boasts high-specs and a variety of technologies to push your gaming limits to the max
NVIDIA’s new flagship GeForce GTX 1080 graphics card is the most advanced gaming graphics card ever created. Discover unprecedented performance, power efficiency, and gaming experiences—driven by the new NVIDIA Pascal™ architecture. This is the ultimate gaming platform. #GameReady.
Base Clock (OC Mode)
Boost Clock (OC Mode)
PREMIUM PACK INCLUDED
1. GV-N1080 XTREME-8GD Graphics card
2. Xtreme VR Link extended 5.25" front panel
(2 HDMI ports and 2 USB 3.0 ports)
3. Xtreme VR Link extended bracket
4. Xtreme SLI bridge
5. XMP300 mouse pad
6. Xtreme Gaming club registration guide
7. Graphics card quick manual
8. Paper folder
9. Wrist protector
10. PCI-E Power cable x1 (Two 6pin to 8 pin)
11. Xtreme Gaming Sticker

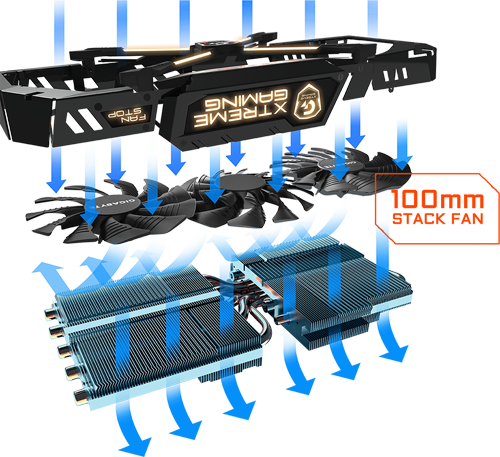

XTREME WINDFORCE COOLING SYSTEM
3X Cooling Stack For 1080 GPU
There are various aspects to the cooling system embedded into the 1080 Xtreme Gaming GPU, that come together to create an impressive and effective heat dissipation system. This 1080 cooling features GIGABYTE patent-pending 3x 100mm stacked fans, unique blade fan design, double ball bearing structure, angular fin design and 6 composite heat-pipes with direct touch on the GPU. Experience higher performance at lower temperatures with the XTREME GTX 1080.
ADVANCED GIGABYTE FANS
Much more heatsink coverage by strong and smooth airflow

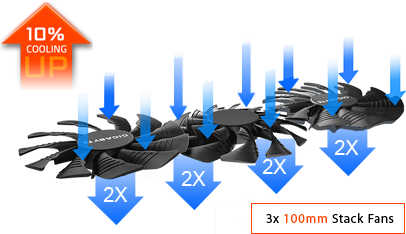

Increased Fan Count, Size & Performance
Clever layering of this 1080's fans has allowed for larger fans (100mm) to be installed, providing a larger and more smooth airflow. Compared to the standard 3x 80mm fans , the WINDFORCE stack fans create 10% enhanced cooling performance.
INNER FAN BLADE
The inside half of each fan blade has been given a steep curve to increase the air intake.
OUTER FAN BLADE
The outer half has a more gentle angle to stack with other fans and generate 2x airflow.
The Xtreme Gaming 1080 has its center fan spinning in the opposite direction to the others. This is to dissipate heat more effectively to accomplish higher performance at a lower temperature.
ANGLED FIN FAN DESIGN
Angular Fin Design Increases 1080 Cooling
The angular and unequal fins height does not only channel the airflow through the fins and enlarge the contact surface, but also results in a lower noise level and better cooling capacity for your 1080.
XTREME GAMING VR LINK
1080 Xtreme Virtual Reality Link
Whether you’re looking for the best solution for VR devices or for using up to 3x 4k monitors, the Xtreme Gaming 1080 GPU from GIGABYTE has you covered. This GTX 1080 brings access to a multitude of ports thanks to GIGABYTES VR Link their added HDMI ports on the inside of the 1080 card. Outputs are automatically detected when restarting PC.

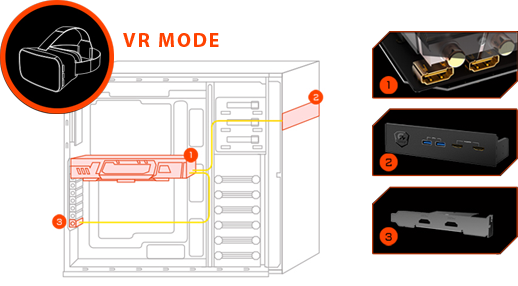

VR PORTS ON YOUR GTX 1080
Equipping Your GTX 1080 GPU For VR
Offers 2 x HDMI ports on the inside of your 1080 gaming card for convenient access to your VR device. Allowing you to connect your Xtreme 1080 to either the 5.25” front panel or the backside bracket.
XTREME 1080 GPU MAXIMIZES VISUALS
Multiple 4k For True Immersion
Revel in three 4k monitors and the immersion they bring. The Xtreme Gaming 1080 GPU comes with 3 DP ports as standard, allowing easy access to triple screens running at 4k resolution.
SMART POWER LED
Gigabyte Power LED
Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers via a flashing light, a stable light symbolizes a dissconnected cable and no light means your power supply is stable.
PRETECTION FOR YOUR GTX 1080

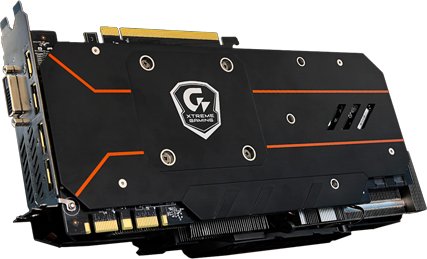

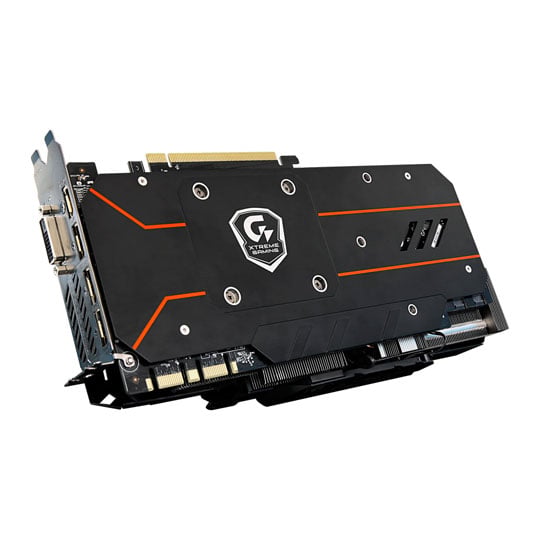

Stylish Metal Back Plate
A Glorious black metal back plate on the Xtreme Gaming 1080 provides solid protection, strengthens the structure and inspires the passion for gaming.
OVERCLOCKING YOUR GTX 1080 XTREME GAMING
One-Click 1080 GPU Overclocking
Overclocking: The XTREME GAMING GTX 1080 from GIGABYTE guarantees higher voerclocking capabilities in terms of excellent power switching, this ensures the highest performance without compromising the systems reliability. Through the use of XTREME Engine you can change your overclocking settings with a single click. This system allows buyers to overclock with zero overclocking knowledge & saves the hassle of manual adjustment.
GIGABYTE XTREME Engine
XTREME Engine: Utilizing GIGABYTE's engine will give you complete control over your GTX 1080. Adjust clock speeds, voltage, fan performance, RGB lighting effect, power target, OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.

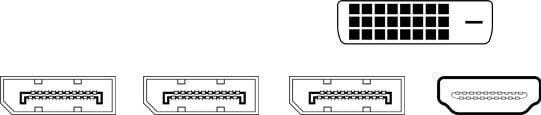

GTX 1080 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1080|
|Edition||XTREME GAMING PREMIUM PACK|
|Manufacturing process||16 nm|
|Core Clock||1759 (1784 in OC Mode) MHz|
|Boost Clock||1898 (1936 in OC Mode) MHz|
|Memory Clock||10206 (10400 in OC Mode) MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE Stack 3X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature||94 °C|
|Dimensions||138 x 56 x 289 mm|
