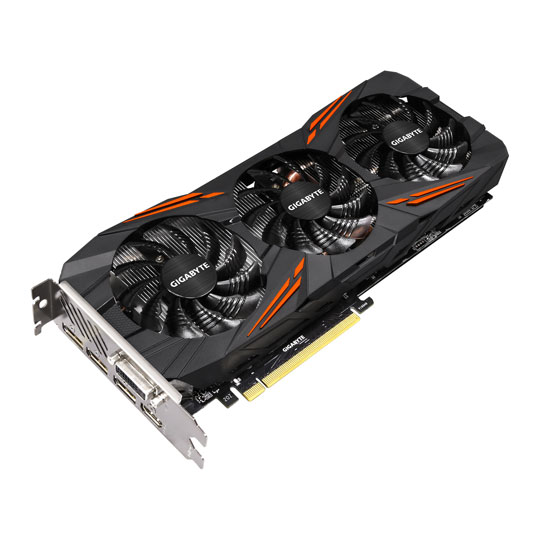

Gigabyte NVIDIA GeForce GTX 1080 8GB G1 GAMING Graphics Card
Gigabyte GeForce GTX 1080 G1 GAMING 8GB GDDR5X VR Ready Graphics Card, 2560 Core, 1695 MHz GPU, 1721 MHz Boost
Gigabyte GeForce GTX 1080 G1 Gaming
GIGABYTE G1 GAMING GTX 1080
The GIGABYTE G1 GAMING 1080 is a truly impressive GPU. Targeted towards gamers and Virtual Reality this card is capable of running the most testing of games with ease. It utilizes three fans to make sure the cooling system can keep up with the power output, DirectX12 and Pascal architecture. Experience next-generation technology and picture quality with this GTX 1080.
NVIDIA’s new flagship GeForce GTX 1080 graphics card is the most advanced gaming graphics card ever created. Discover unprecedented performance, power efficiency, and gaming experiences—driven by the new NVIDIA Pascal™ architecture. This is the ultimate gaming platform. #GameReady.
Base Clock (OC Mode)
Boost Clock (OC Mode)

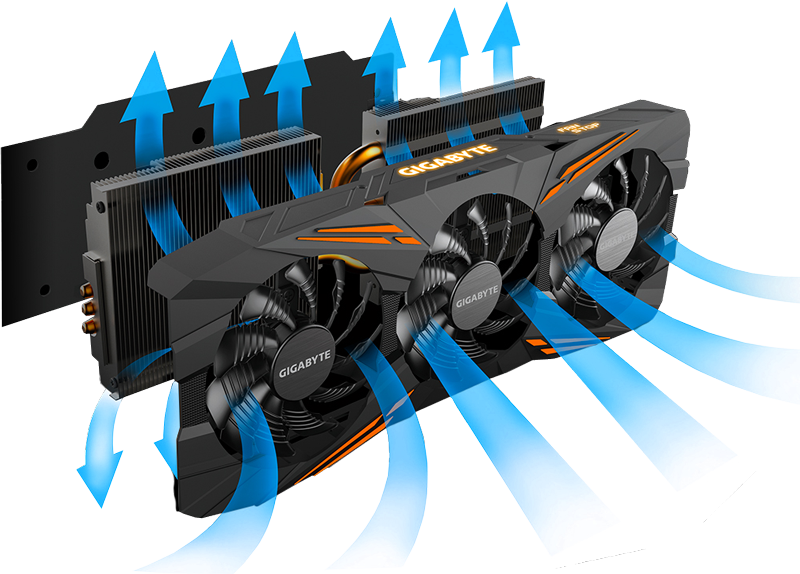

G1 GAMING WindForce Cooling System
GIGABYTE have embedded a very impressive cooling system around the GTX 1080. It features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, which together deliver an effective heat dissipation capacity for higher performance at lower temperatures.
ADVANCED GIGABYTE FANS

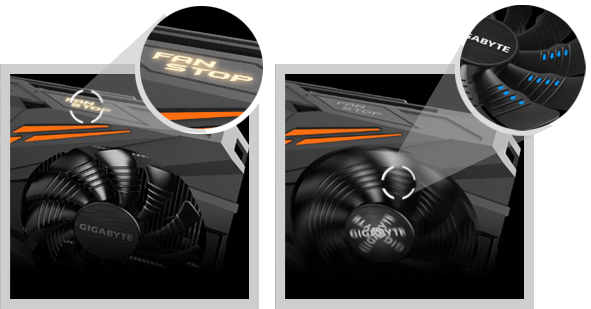

1080 LED Fan Indicator From GIGABYTE
When your GIGABYTE graphics gaming card isn’t under any serious load and its temperature is cool the G1 GAMING 1080 will shut off the fans to save on power. On top of the 1080 GPU there is an LED that will light up when the fan stops - the LED reads ‘FAN STOP’. The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming . The LED fan indicator on the top of the hrapjoc card provides an instant display of the fan staus.
GIGABYTE 1080 Unique Fan Blade Deisgn
GIGABYTE have designed the fans embedded within their G1 GAMING 1080 to further increase the airflow they create - increases by 23% over traditional fans! The airflow is split and guided smoothly through the 3D stripes that curve around the fans surface.
GIGABYTE COPPER PIPES
Composite Heat-Pipes Within your 1080
Through a combination of thermal conductivity and phase transition the G1 1080 GPU efficiently manages the transfer of heat between two solid interfaces - which increases 29% of cooling capacity.

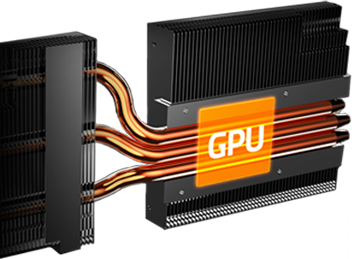

G1 GAMING HEAT PIPE DIRECT TOUCH
GIGABYTE G1 GPU Direct Touch
The pure copper heat-pipes are specifically shaped to ensure maximum direct contact to the 1080 GPU.

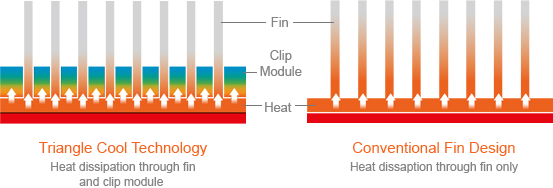

GIGABYTE GTX 1080 FIN DESIGN
The GIGABYTE GTX 1080 Triangle Cool Tech
Through a combination of the fins and aluminum clip module built into your gaming GPU, GIGABYTE patented “Triangle Cool” technologyenhances the efficiency of heat dissipation dramatically.

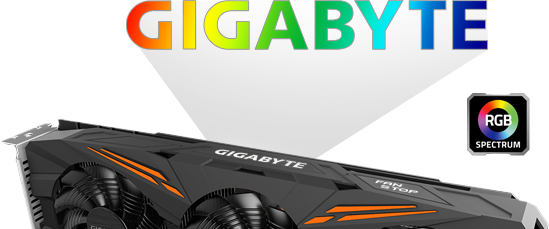

GIGABYTE SPECTRUM RGB LED
16.8M Customizable Color Lighting
Both the GIGABYTE logo and the ‘Fan Stop’ are LEDs. These LEDs can be customized with 16.8M colours and a variety of lighting options. Choose your GTX 1080s colour and lighting scheme through the use of XTREME Engine utility. The lighting options are; cycling, breathing, flash, dual flash and consistent.

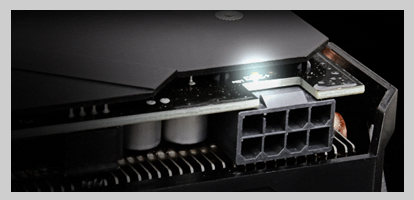

SMART 1080 POWER LED
GIGABYTE Power Smart 1080 LED
The GIGABYTE G1 GAMING 1080 is equipped with an LED just aboe your 8-pin slot to indicate voltage stability issues. When the PCI-E voltage is unstable you’ll have no trouble discovering it as the LED will light up.
OVERCLOCKING YOUR GTX 1080 G1 GAMING
One-Click 1080 GPU Overclocking
Overclocking: The G1 GAMING from GIGABYTE 1080 guarantees higher voerclocking capabilities in terms of excellent power switching, this ensures the highest performance without compromising the systems reliability. Through the use of XTREME Engine you can change your overclocking settings with a single click. This system allows buyers to overclock with zero overclocking knowledge & saves the hassle of manual adjustment.
GIGABYTE XTREME Engine
XTREME Engine: Utilizing GIGABYTEs engine will give you complete control over your GTX 1080. Adjust clock speeds, voltage, fan performance, RGB lighting effect, power target, OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
GTX 1080 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1080|
|Manufacturing process||16 nm|
|Core Clock||1695 (1835 in OC Mode) MHz|
|Boost Clock||1721 (1860 in OC Mode) MHz|
|Memory Clock||10010 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature||94 °C|
