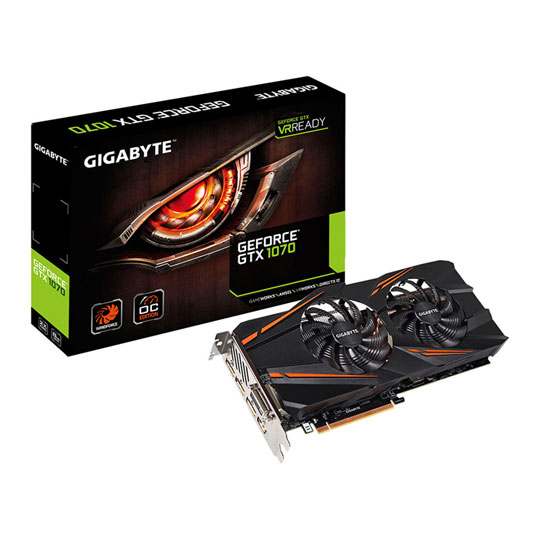

Gigabyte NVIDIA GeForce GTX 1070 WINDFORCE OC
GIGABYTE - GeForce GTX 1070 - GPU - WINDFORCE OC
GIGABYTE WINDFORCE OC GeForce GTX 1070 GPU
This 1070 from GIGABYTE is from their Windforce OC series and as such has been crafted in pursuit of the ultimate gaming experience. Based on Pascal architecture and loaded with game enhancing technologies it’ll bring an incredible experience to your home desktop. It features intelligent designs all round and can produce striking performance output with great power efficiency.
Take on today’s most challenging graphics intensive PC games without missing a beat. The GeForce GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ the most advanced GPU architecture ever created. This is the ultimate gaming platform. #GameReady.
WINDFORCE GPU COOLING SYSTEM
Advanced GTX 1070 Cooling

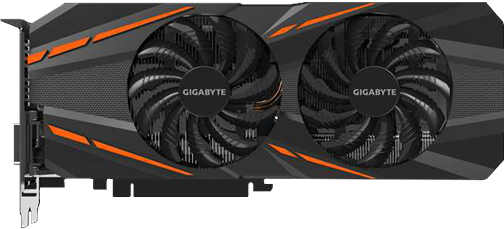

The WINDFORCE 2X cooling system is the outcome of both clever and efficient design. It features two 90mm fans that spin in alternate directions, have a unique blade design and are 3D active fans with an RGB LED status indicator. Alternating fans reduces air turbulence increasing dissipated heat.
INTELLIGENT GRAPHICS CARD FANS
GIGABYTE 1070 Unique Fan Blades
The GTX 1070 airflow is spilt by it’s triangle fan edge, which is then guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the GIGABYTE Gaming 1070 airflow by 23% over traditional fans.
DIRECT TOUCH GPU COOLING
Heat Pipes Help With Cooling the GPU

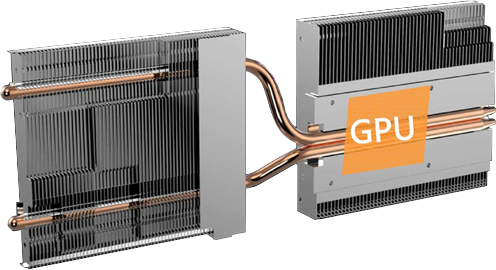

The Gaming 1070 features Direct Touch technology. This tech as seen above utilizes heat pipes made of pure copper and are shaped to maximize the direct contact area to the 1070’s GPU so they can carry generated heat away from your GPU. This keeps your gaming and media going for longer and displaying as smooth as can be.
GTX 1070 COPPER PIPES
Composite Heat-Pipes Embedded 1070
Through a combination of thermal conductivity and phase transition the Gaming GTX 1070 efficiently manages the transfer of heat between two solid interfaces - which increases 29% of cooling capacity.
GIGABYTE XTREME ENGINE
Complete Control of 1070 and Features
Features on the GTX 1070 GIGABYTE’s Xtreme Engine allows you to adjust clock speeds, voltage, fan performance, RGB lighting effect and power target. The OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
GTX 1070 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1070|
|Manufacturing process||16 nm|
|Core Clock||1556 (1582 in OC Mode) MHz|
|Boost Clock||1746 (1771 in OC Mode) MHz|
|Memory Clock||8000 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2 Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||131 x 37 x 298 mm|
