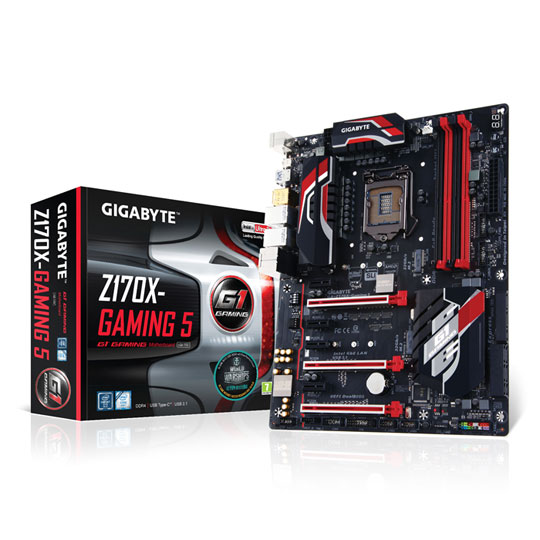

Gigabyte Z170X Gaming 5 Skylake SLi/Xfire ATX Motherboard

Gigabyte GA-Z170X-Gaming 5, Intel Z170, S 1151, DDR4, SATAe/SATA3 6Gb/s, PCIe 3.0, SLi/CrossFire, ATX Motherboard

Gigabyte
Scan code: LN66197 Manufacturer code: GA-Z170X-Gaming5-EU Request call
End Of Life
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Product Overview This Motherboard now comes with 4 Year Manufacturer Warranty!!! (Please note: Registration is required)

For details on the 4 Year Warranty & how to register your product, please click HERE.

GIGABYTE G1 Gaming Motherboards: Born To Game

Extreme Intel® USB 3.1 Controller
The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering 16 Gb/s of total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

Connecting the Future - USB Type-C™: The World's Next Universal Connector - Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.
*Display feature may vary by model.

Realtek ALC1150 115dB SNR HD Audio
The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Additional Sound Blaster X-Fi MB3
GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.

GIGABYTE Exclusive: Upgradable OP-AMP

Customizable
• Users can choose audio quality based on individual listening preferences.
• Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality
• Improve audio dynamics and overall sound-quality with little cost.
• No need for expensive speakers or high-end audio equipment.

Exclusive onboard 'Gain Boost' selector switches
• Select either standard 2.5x or high-amplification 6x mode.
• 6x mode is ideal for high impedance speakers and headphones

High End Audio Capacitors
GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

USB DAC-UP: Clean, low-noise power for your Digital-to-Analog Audio converter
GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

Killer™ E2200 Gaming Network / Intel® Gigabit LAN
Killer™ E2200 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

2-Way SLI™/3-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Industry Leading Ultra Durable™ PCIe Metal Shielding
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Dual PCIe Gen3 x4 M.2
With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

Turbo B-Clock: Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station™
GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

Long Lifespan Durable Black™ Solid Caps
GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

15 Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. Features • Supports 6th Generation Intel® Core™ Processor
• Dual Channel DDR4, 4 DIMMs
• Intel® USB 3.1 with USB Type-C™- the world's next Universal connector
• 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
• Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
• 3 SATA Express Connectors for up to 16Gb/s Data Transfer
• 115dB SNR HD Audio with Built-in Rear Audio Amplifier
• Killer™ E2200 and Intel® Gaming Networks
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• GIGABYTE UEFI DualBIOS™ Technology
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 4 out of 5 by 1 reviewer.
Rated 4 out of 5 by Best option for me I took quite a long time choosing this motherboard over countless others. Eventually settled on this motherboard, because it had up-to-date technology at a reasonable price and didn't have too many features (DVI graphics output for example) that I didn't need and did not want to pay for. However, having got it, I would criticise the user manual for not explaining some of the features with more details - particularly with regard to helping choose one particular setting over another. Also, annoyingly, the cpu cooler from my old motherboard was just the wrong size -73 mm hole pitch, whereas the motherboard has holes at 75 mm pitch. 07 October 2015
