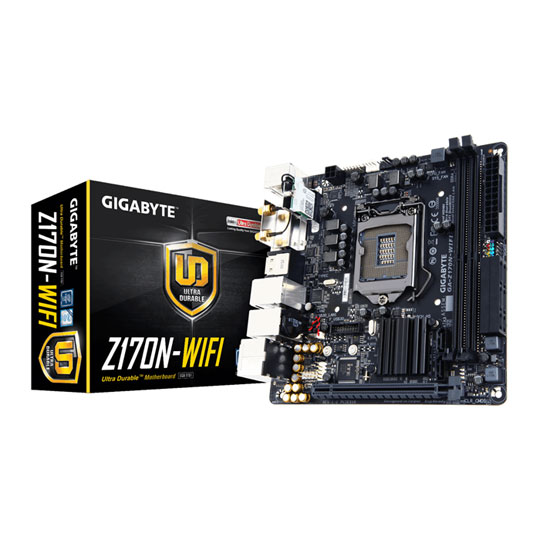

Gigabyte Intel Z170N WIFI AC Skylake Mini ITX Motherboard

Gigabyte GA-Z170N-WIFI, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), Dual GbE, WiFi 802.11ac, USB 3.0 C, Mini ITX

Gigabyte
Scan code: LN68763 Manufacturer code: GA-Z170N-WIFI Request call
£129.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

Connecting the Future - USB Type-C™: The World's Next Universal Connector
The USB Type-C™ port with USB 3.0 support is a robust and slim connector for all of your devices with reversible plug orientation.

Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Dual Intel® GbE LAN with cFosSpeed
The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.

Faster and Better Coverage with Intel® Dual Band 802.11ac WiFi + BT4.2 Module
The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.

High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Ambient LED
GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

Long Lifespan Durable Black™ Solid Caps
GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

15µ Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. Features • Supports 6th Generation Intel® Core™ Processor.
• Dual Channel DDR4, 2 DIMMs.
• Intel® USB 3.0 with USB Type-C™ - the world's next Universal connector.
• 11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2.
• PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support).
• 2 SATA Express Connectors for up to 16Gb/s Data Transfer.
• 115dB SNR HD Audio with Built-in Rear Audio Amplifier.
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.
• Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
• GIGABYTE UEFI DualBIOS™ Technology.
Specifications
Specifications
Form Factor Mini ITX
CPU Socket 1151
QPI Speed N/A
Chipset Intel Z170
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
Maximum Memory Capacity 32GB (2x16GB)
Graphics Connectors
  • DVI-D
  • HDMI
Graphics Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support Not Supported
Audio Realtek ALC1150 7.1 HD Audio
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules
  • 2 x Intel (Gigabit LAN)
  • 1 x Intel 867 Mbps ac WiFi 2.4/5GHz + BT 4.2
SATA SATA Express/ SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Water Cooled No
Expansion Slots
  • 1 x M.2 Socket 1 (for M2 WiFi Module)
  • 1 x M.2, S3 (M), 2260/2280, PCIe/SATA
  • 1 x PCIe 3.0 x16
Internal I/O
  • 1 x 24pin (V)
  • 1 x 4pin (V)
  • 1 x Chassis intrusion header
  • 1 x Clear CMOS jumper
  • 1 x CPU fan header
  • 1 x FP Audio Header
  • 1 x Front panel header
  • 2 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 2 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x speaker header
  • 1 x System Fan header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DVI-D
  • 2 x HDMI v1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x SMA antenna connectors (2T2R)
  • 1 x SPDIF Out (Optical)
  • 4 x USB 3.0
  • 1 x USB 3.0 Type-C
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
