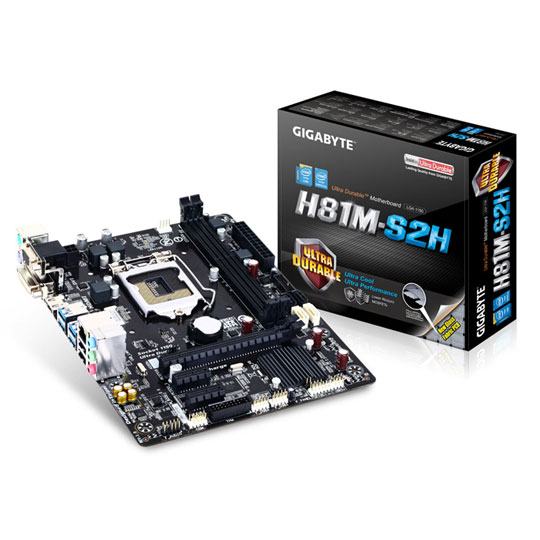

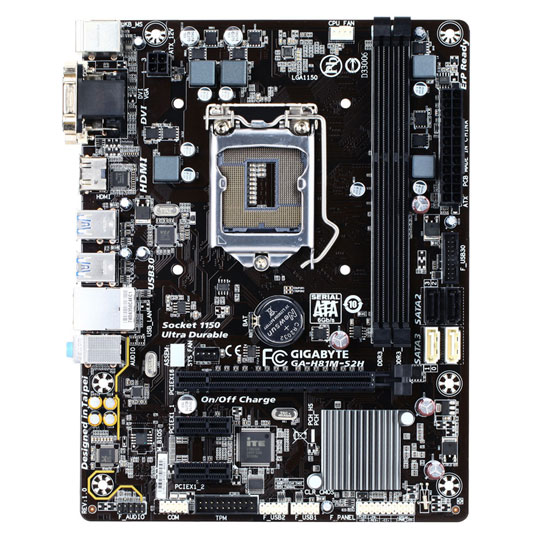

Gigabyte H81M-S2H Micro ATX Motherboard with HDMI/USB 3.0
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.
GIGABYTE Ultra Durable
GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
High Quality Audio Capacitors
GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE 8 series motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth. Features • Supports 4th Generation Intel® Core™ processors
• GIGABYTE Ultra Durable™ Technology
• Audio Noise Guard with High Quality Audio Capacitors
• GIGABYTE UEFI BIOS
• GIGABYTE On/Off Charge™ for USB devices
• LAN with high ESD Protection

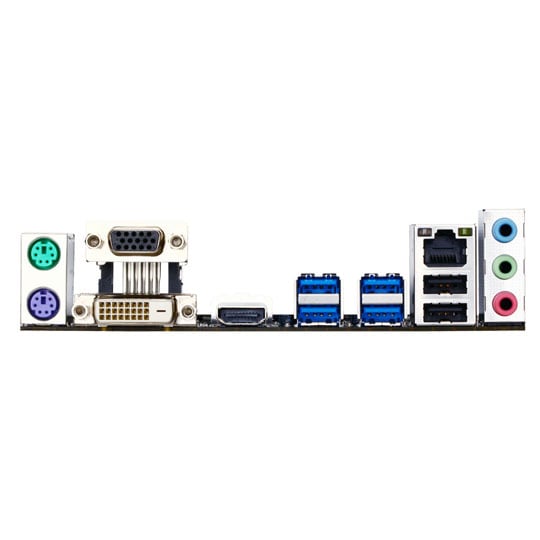

• HDMI, DVI, D-SUB port on rear panel
• Solid capacitors for CPU VRM design
|Form Factor||Micro ATX|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||Unbuffered|
|Memory Speed (Mhz)||
|Maximum Memory Capacity||16GB|
|Graphics Interface||PCIe 2.0 (x16)|
|Network Interface Type|
|Network Interface Chip/Modules|
|SATA||SATA III 6Gb/s|
|RAID Support via|
|Storage Mode Support|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 7 days
Date Issued: 11th May 2014
In June, 2013, Intel launched an assemblage of new 'Haswell' Core series processors presented in the LGA 1150 form factor. Inherently different to the LGA 1155 form factor it succeeded, LGA 1150 spurred the release of a new chipset family known as the 8-series.
Date Issued: 9th May 2014
Intel launched a bevy of Haswell Core processors last June. Presented in a LGA1150 form factor and therefore physically different to the LGA1155 Ivy Bridge processors of the year before, new chipsets were also launched to support these new chips.
Ask your questions. Share your answers.
Yes you can use these together.
Yes, the card is compatible with this motherboard, or any with a PCIe 8/16x slot on it. But depending on your CPU, you may get bottle necks with it as the H81 chipset is not the best out of the 1150 chipset range.
