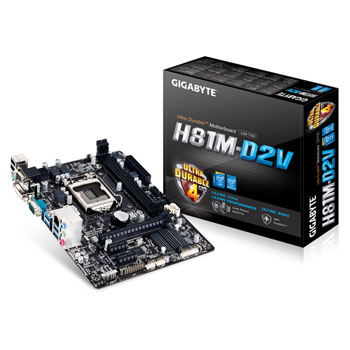

Gigabyte H81M-D2V Micro-ATX Motherboard

Gigabyte GA-H81M-D2V, Intel H81, S 1150, DDR3, SATA III 6Gb/s PCIe 2.0 (x16) D-Sub DVI-D Micro ATX 7.1Ch Audio

Gigabyte
Scan code: LN53026 Manufacturer code: GA-H81M-D2V Request call
£52.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved Mid Range
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.

From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.

• Supports 4th Generation Intel® Core™ processors
• GIGABYTE Ultra Durable™ 4 Plus Technology
• GIGABYTE UEFI DualBIOS™
• 6 USB 3.0 ports with GIGABYTE 3x USB power
• GIGABYTE On/Off Charge™ for USB devices
• LAN with high ESD Protection
• COM, DVI, D-SUB port on rear panel
• All solid capacitors design Features GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe
GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

High ESD Protection for USB and LAN (USB 3.0 only)
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

One Fuse per USB Port (USB 3.0 only)
On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer

GIGABYTE One Fuse per
USB Port Design Traditional One Fuse Design
for Multi-USB Ports

DVI Support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).

On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more

Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
On/Off Charge Driver download
LAN Optimizer - Intelligent optimization network management tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE App Center
GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

GIGABYTE EasyTune
GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings.

GIGABYTE Smart Fan 2
As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans.

GIGABYTE @BIOS
The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup
GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.
Specifications
Specifications
Form Factor Micro ATX
CPU Socket 1150
QPI Speed N/A
Chipset Intel H81
Memory Type DDR3
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1333(OC)
  • DDR3 - 1600
  • DDR3 - 1600(OC)
  • DDR3 - 1600+
Maximum Memory Capacity 16GB
Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
Graphics Interface PCIe 2.0 (x16)
SLI Support N/A
Crossfire Support N/A
Audio
Network Interface Type
Network Interface Chip/Modules
SATA SATA III 6Gb/s
RAID Support via
Storage Mode Support
Water Cooled No
Expansion Slots
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
Internal I/O
  • 1 x 24pin (V)
  • 1 x 4pin Fan (V)
  • 1 x 8pin (V)
  • 1 x Clear CMOS Button
  • 1 x FP Audio Header
  • 1 x Parallel Port (LPT) Header
  • 2 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Audio I/O
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 4 x USB 3.0
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
TekSpek Guides
Intel Z97 Chipset
Intel Z97 Chipset
Date Issued: 11th May 2014

In June, 2013, Intel launched an assemblage of new 'Haswell' Core series processors presented in the LGA 1150 form factor. Inherently different to the LGA 1155 form factor it succeeded, LGA 1150 spurred the release of a new chipset family known as the 8-series.

Read More

New 4th Generation CPUs
New 4th Generation CPUs
Date Issued: 9th May 2014

Intel launched a bevy of Haswell Core processors last June. Presented in a LGA1150 form factor and therefore physically different to the LGA1155 Ivy Bridge processors of the year before, new chipsets were also launched to support these new chips.

Read More

Reviews
Rated 3.8 out of 5 by 5 reviewers.
Rated 3 out of 5 by Good for the price Adequate mobo for the price but why Gigabyte bother to put an out of date Com/Serial port on I don't know, the space could have had an extra USB port or something more appropriate to modern computing. Also needs a bios update to work with Refresh versions of Intel CPU's 01 October 2014
Rated 5 out of 5 by Affordable quality Bought this to replace an MSI board that kept giving errors on boot up. This looks and feels quality in your hand, great colour scheme. UEFI bios is easy to navigate. System set up with 2 x 4GB DDR3, Radeon R9 270X and an i5 4670K. Stable as a rock. Will use again 20 April 2014
Rated 5 out of 5 by Good entry level mainboard We have bought and installed a countless number of these from Scan and built them into systems giving a 3 year warranty at our risk as the mobo is warranted for only two years by Gigabyte. Only two have ever given problems. One was returned under an RMA and refunded immediately by Scan, and the other was sold to a client of ours still in daily use by them with the PC left to sleep overnight (UPS in use) The mainboard has a fault where you have to swap the memory over to the other slot or it will not boot after powering off. OK if you hibernate or sleep though. Scan have given an RMA and are keen to replace it but the customer will not let use dismantle the machine as they are happy with it as is . . .Stupid of our customer we think but an awesome cheap MOBO, even when faulty. Only gripe - This mainbord - and I mean every one we have purchased - will go into a boot loop 3 or 4 times if the disks are changed around or reconfigured even using the hot plug and play disk feature (a minor issue) Only one GPU slot and no full sized PCI slots 20 February 2014
Rated 5 out of 5 by Use these boards all the time... Typical quality from Gigabyte, a great board at a great price. 17 February 2014
Rated 1 out of 5 by Gigabyte GA-H81M-D2V, Intel H81, S 1150, DDR3, SATA III 6Gb/s PCIe 2.0 (x16) D-Sub DVI-D Micro ATX 7.1Ch Audio Bought 2,1st one shorten,now 2nd one faulty keeps restarting on shutdown,chesk everything so beware 26 January 2014
  • 2016-05-20 T12:52:42.143-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_5, tr_5
  • loc_en_US, sid_53026, prod, sort_default
1-5 of 5
Questions & Answers
(1 Question : 3 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

3 answers

Can Gigabyte GA-H81M-D2V motherboard boot from PCI-e?

I'm looking at using a PCIe SSD, Scan Code:
LN53028 as a bootable drive
Age: 35 to 44
Gender: Male

Products related to my question
120GB OCZ RevoDrive, SandForce, MLC-Flash, Read 540MB/s, Write 490MB/s 65000 IOPS Max - Refurbished
5 out of 5
(1)






2 years, 8 months ago
Customer avatar
by
Preston, Lancashire, UK
Read all my Q&A

Please wait while more information about Mike is loaded.
Additional information about Mike could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Provided the PCIe card presents itself as a mass storage controller, which it will, no two ways about it.
2 years, 3 months ago
Customer avatar
by
Edinburgh
Read all my Q&A

Please wait while more information about turbodonkey is loaded.
Additional information about turbodonkey could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
That is a no - we tried - use an SSD instead
2 years, 2 months ago
Customer avatar
by
Essex, UK
Read all my Q&A

Please wait while more information about owenros is loaded.
Additional information about owenros could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
This board is able to boot from a PCI-E SSD.
Age: 18 to 24
Gender: Female
2 years, 7 months ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about Johny is loaded.
Additional information about Johny could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
