Scan code: LN86474 Manufacturer code: GA-H110-D3A

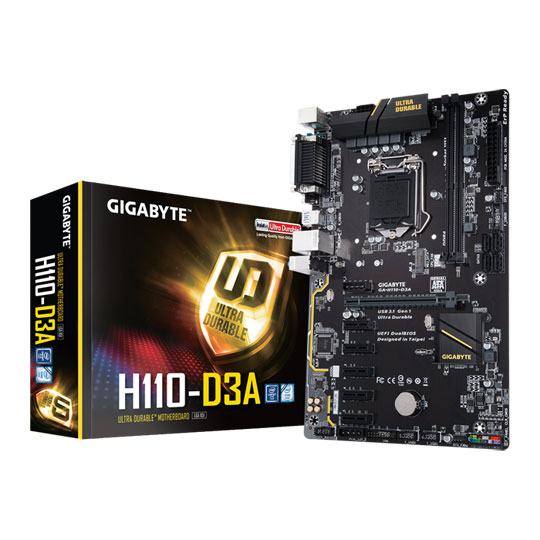

Gigabyte Intel Socket 1151 Crypto Mining Motherboard

Gigabyte GA-H110-D3A Crypto Mining, Intel H110, S 1151, DDR4, SATA3, M.2, GbE, USB 3.1, ATX

Thumbnail 1 : Gigabyte Intel Socket 1151 Crypto Mining Motherboard Thumbnail 2 : Gigabyte Intel Socket 1151 Crypto Mining Motherboard Thumbnail 3 : Gigabyte Intel Socket 1151 Crypto Mining Motherboard Thumbnail 4 : Gigabyte Intel Socket 1151 Crypto Mining Motherboard
Scan code: LN86474 Manufacturer code: GA-H110-D3A
£67.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

On-board M.2 Storage
GIGABYTE M.2 solution offers considerably faster storage performance and support for SATA interface for M.2 SSD devices.

Fast USB 3.1 Gen1 Solution
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.

High Quality On-board Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
Realtek® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environment. Realtek GbE consumes significant less power when it's in idle state in comparison with others.

Humidity Protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fibre weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High ESD Ethernet & USB Port Protection
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

High Temperature Protection Lower RDS(on) MOSFETs Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Important - Please Note: This Motherboard is Intended for Cryptocurrency Mining. Features • 6 PCIe Slots Perfect for Mining.
• Supports 7th / 6th Generation Intel® Core™ Processors.
• Dual Channel DDR4, 2 DIMMs.
• On board M.2 Connector for Fast Data Transfer.
• 8-channel HD Audio with High Quality Audio Capacitors.
• Audio Noise Guard with LED Trace Path Lighting.
• Realtek GbE LAN with cFosSpeed Internet Accelerator Software.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
• GIGABYTE UEFI DualBIOS™ Technology.

Important - Please Note: This Motherboard is Intended for Cryptocurrency Mining.
Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket 1151
Chipset Intel H110
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 32GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 5 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Not Supported
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x PCIe Power Connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x Parallel (LPT)
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial (COM)
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 190 mm
