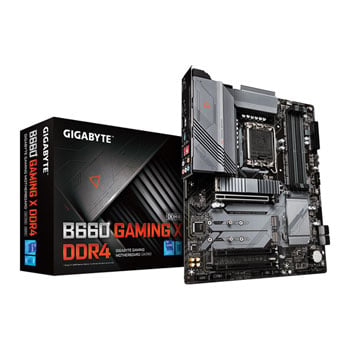

Gigabyte Intel B660 GAMING X DDR4 PCIe 4.0 ATX Motherboard

Gigabyte B660 GAMING X DDR4, Intel B660, S 1700, DDR4, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, HDMI/DP, ATX

Thumbnail 1 : Gigabyte Intel B660 GAMING X DDR4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte Intel B660 GAMING X DDR4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte Intel B660 GAMING X DDR4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte Intel B660 GAMING X DDR4 PCIe 4.0 ATX Motherboard
Scan code: LN123775 Manufacturer code: B660 GAMING X DDR4
Order in the next 1 hr 33 mins and get it tomorrow
£141.49
Get it Tomorrow, 25 MayIn stock
From £12.17 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.17
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £141.49
Total inc. interest: £145.94
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

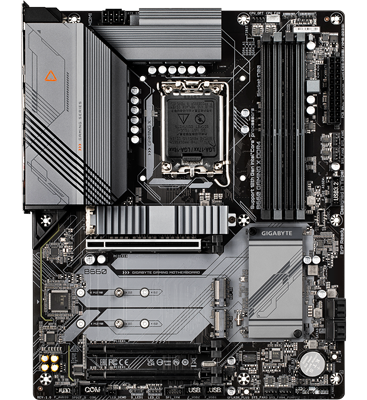

Gigabyte B660 Gaming X DRR4 12th Gen Intel ATX Motherboard

Gigabyte B660 Gaming X

Stand Your Ground Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte B660 Gaming X DDR4 Motherboard. This ATX motherboard boasts an upgraded 8+1+1 hybrid power solution, dual Gen4 m.2, PCIe 4.0 support, 2.5GbE gaming LAN, front-panel Type-C connectivity and a fully comprehensive I/O panel. Product longevity is of upmost important to gigabyte; thats why they have included only the best components they can find and reinforce every slot to make each of them solid and durable. Make this motherboard your own with full RGB Fusion 2.0 support; now offering more LED customisations than ever, users can truly adapt their PC to represent their lifestyle with full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Intel B660Chipset

LGA 1200CPU Socket

12th Generation IntelIntel Processors

ATXForm Factor

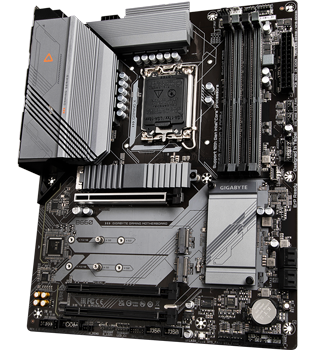

Cleaner and more Efficient Power Delivery to the CPU

VRM Design

Hybrid Power Design8+1+1 Phases / Low RDS(on) MOSFETs

Solid Pin Connectors8-pin CPU Power Connector

12th Gen Intel CoreProcessor Support

Premium choke and capacitor design GIGABYTE's B660M Gaming X DDR4 motherboard uses 8+1+1 phases, Low RDS(on) MOSFETs. Solid capacitors improve transient response and minimise oscillation and offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the latest Intel® Core™ 12th Generation processors.

Meet The Latest Generation

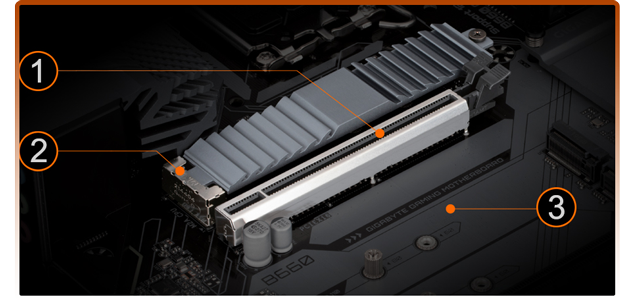

Gen4 Design

1. PCIe 4.0 x 16

2.PCIe 4.0 M2 Connector

3. PCIe 4.0 Ready PCB

Impressive PCIe Gen4 Design GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

A Fully Comprehensive Cooling Solution

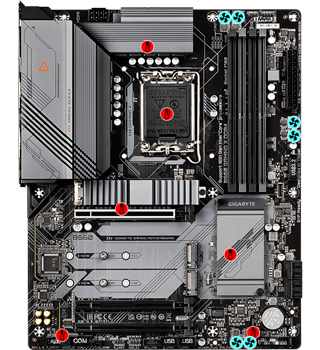

Smart Fan 6

Intelligent Fan Control DesignSmart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customized to your liking.

features

6 PWM/DC Fan Headers

features

6 Internal Temperature Sensors

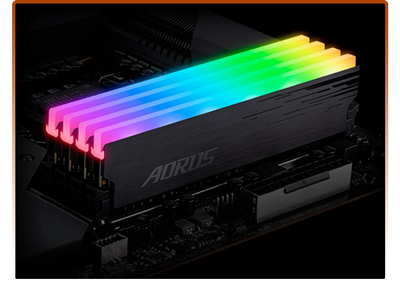

Superior Support for DDR4 XMP

Hybrid Cores Optimization With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy.

DDR4

Up to 4400MHz and Beyond*GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

PCIe

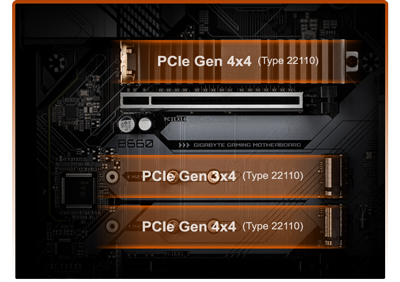

2 x PCIe 4.0 M.2 Slots / PCIe 4.0 DesignExperience super-fast storage with dual Gen4 PCie M.2 storage slots, reaching a theoretical bandwidth of up to 64 Gb/s allowing you to say goodbye to those annoying loading screens.

Illuminate your PC with RGB Fusion 2.0

rgb

RGB Fusion 2.0B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

Durability for Years to Come

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

down

STEP 1Plug the 24-pin & 8-pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

pins

Solid Pin Power ConnectorsB560 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

Take Control of your Motherboard

bios

Refreshed BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

system

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition GAMING X
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866+(OC)
  • DDR4 - 4000+(OC)
  • DDR4 - 4133+(OC)
  • DDR4 - 4266+(OC)
  • DDR4 - 4300+(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 2 x Digital LED strip header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 5 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN123775
Model Number B660 GAMING X DDR4
GTIN 4719331831752
