Scan code: LN143702 Manufacturer code: B650M AORUS ELITE AX ICE

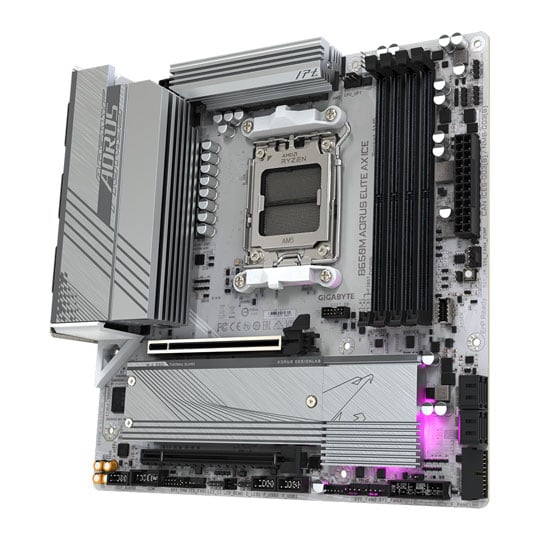

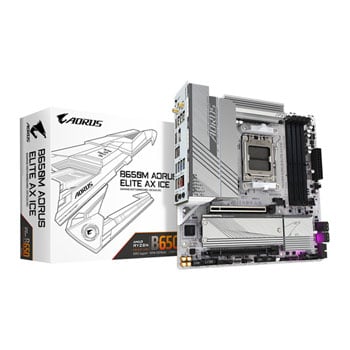

Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 microATX Motherboard

Gigabyte B650M AORUS ELITE AX ICE, AMD B650, AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE/WiFi 6E, AMD EXPO™, MicroATX

Thumbnail 1 : Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 microATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 microATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 microATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 microATX Motherboard
Scan code: LN143702 Manufacturer code: B650M AORUS ELITE AX ICE
£219.98Item currently awaiting an ETA
Pre order
From £10.75 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £19.93
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £239.16
Monthly Payment: £10.75
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £257.74
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Power In Number

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.


Digital Twin VRM Design

To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.


Memory, To The Future

All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.


BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.


Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.


Shielded Memory Routing

Memory routing is shielded within the PCB's inner layer to protect against interference.


Daisy-Chained Routing

Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.


Overall Thermal

Every AORUS motherboard is armoured with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.


VRM Thermal Armor Advanced

These solid heatsinks are forged to keep your system cool.


M.2 Thermal Guard

Prevents throttling and bottlenecks from high speed Gen5 M.2 SSDs


Build Effortless

Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.


EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.


Get Everything UD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.


PCIe UD Slot

GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.


M.2 UD Slot PG5

The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizes signal integrity.


UD Power Connector

The unique design provides better conductivity for power and better dissipation for the heat generated from it.


Connectivity Versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.


Enhancing VR Experiences with Wi-Fi 6E

Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences.


High Quality Sound

Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.


Audiophile Grade Capacitors

Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience.


Elevating Performance Together

AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.


Features


• AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors.
• Unparalleled Performance: Twin 12+2+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support.
• Superfast Storage: 1 PCIe 5.0 x4 and 1 PCIe 4.0 x4 M.2 Connectors.
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance.
• EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design.
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
• Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Specifications
Core Specifications
Edition B650M AORUS ELITE AX ICE
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4400(OC)
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 8000(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x LED strip connector
  • 2 x M.2 Connector
  • 1 x Reset Button
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.3

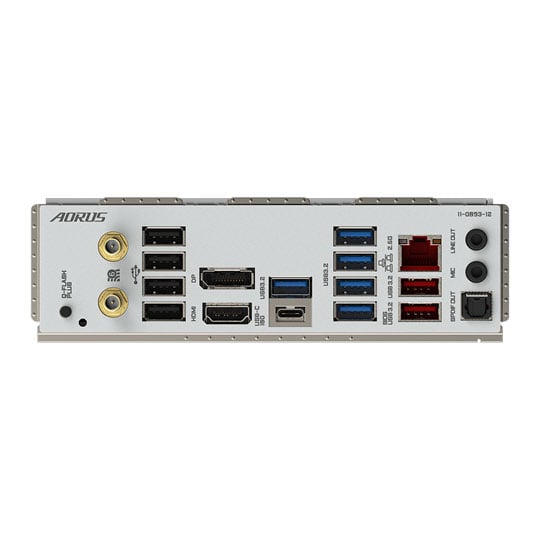

Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 5 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN143702
Model Number B650M AORUS ELITE AX ICE
GTIN 4719331859336
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
