Scan code: LN108437 Manufacturer code: B550 VISION D

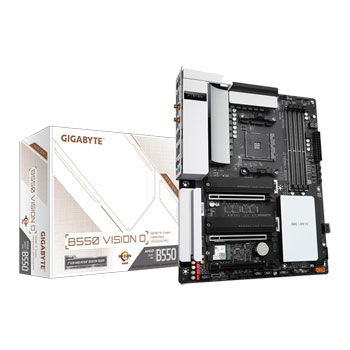

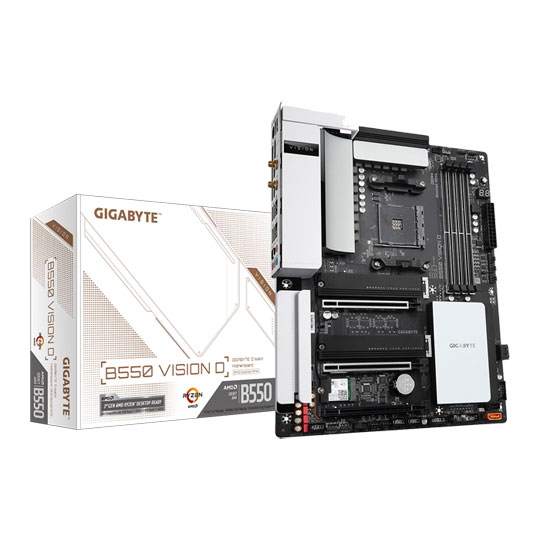

Gigabyte AMD B550 VISION D AMD4 PCIe 4.0 ATX Motherboard

Gigabyte B550 VISION D, AMD B550, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, GbE/WiFi 6 AX200, BT5, ATX

Thumbnail 1 : Gigabyte AMD B550 VISION D AMD4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD B550 VISION D AMD4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD B550 VISION D AMD4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD B550 VISION D AMD4 PCIe 4.0 ATX Motherboard
Scan code: LN108437 Manufacturer code: B550 VISION D
£275.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £13.25 / month (APR 14.9%)
Monthly Payment: £24.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £275.99
Total inc. interest: £297.31
Monthly Payment: £13.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £275.99
Total inc. interest: £317.93
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 26th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

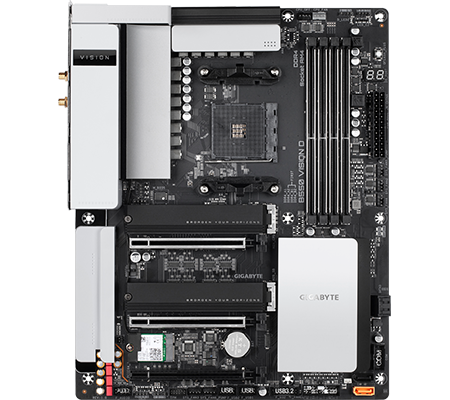

VISION D B550 ATX Motherboard from Gigabyte

VISION D B550 ATX Motherboard Gigabyte

DISCOVER ENDLESS CREATIVITY AND POWER Unleash your creativity with the GIGABYTE B550 VISION D motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with 3rd Generation AMD Ryzen™ processors or New Generation AMD Ryzen™ with Radeon™ Graphics processors. This motherboard is perfect for PC enthusiasts who desire high-end performance but also care about aesthetics. This powerful design delivers impeccable performance with a comprehensive cooling solution to stay cool under heavy workloads. Performance is never compromised, and aesthetics are greater than ever. Enjoy impressive connectivity, expandable graphics, and ultra-fast storage that's ideal for professional creators in any field.

AMD B550Chipset

3rd Generation AMD Ryzen™Compatible CPUs

AMD AM4CPU Socket

ATXForm Factor

Take Advantage of Endless Reliability

ECC Memory

ECC MemoryProtect against data corruption with ECC memory. Error Correction Code (ECC) memory corrects errors in your data as it passes in and out of memory to ensure reliability for critical applications.

Enhance your Graphics Performance

MULTI-CARD SUPPORT

MULTI-CARD SUPPORTWith multi-graphics configurations you can obtain superior graphics performance for applications which demand the highest frame rates without compromising on resolution. Enjoy full support for NVIDIA QUADRO with two PCIe 4.0 x16 slots.
*Actual support may vary by CPU.

Incredible Connectivity for your Devices

powerful i/o

USB Type-C™ with Titan RidgeUSB Type-C™ with Titan Ridge is the single most advanced port available. It uses USB Type-C™ connectors and cables but as a single cable solution, creating one compact port that delivers the fastest connection to any dock display or data device. The only cable you need brings the limitless connectivity with you.

Create a Multi-Platform System

DAISY CHAIN MULTIPLE DEVICESUSB Type-C™ with Titan Ridge allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 10Gbps data pipeline that includes both PCIe and DisplayPort traffic. It redefines desktop PC connectivity to make it much easier to connect multiple high-speed storage devices and HD displays to your PC than ever before.

daisy chain devices

Reap the Benefits of Increased Bandwidth

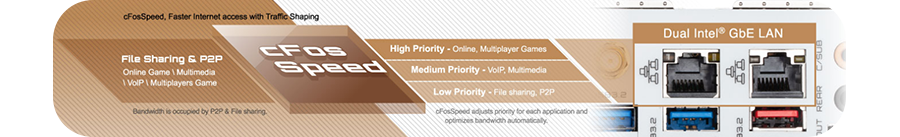

High-Bandwidth and Low-Latency Access-Layer Network Support Dual Intel® LANWith two LAN ports, you can benefit from increased bandwidth for greater speeds, automated load balancing for smoother data flow, and instant failover in case anything goes wrong. Dual Intel® GbE LAN offers the best throughput performance as well as better support for diverse operating systems. Intel® LAN features cFosSpeed, a network traffic management application which works by improving network latency and maintaining low ping times.

 Dual Intel® LAN

Make Latency a Thing of the Past

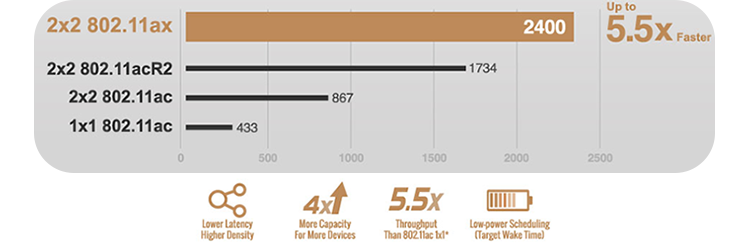

Intel® Wi Fi 6 (Gig+)The Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, a better gaming experience, fewer dropped connections, and speeds of up to 2.4Gbps*. Wi-Fi 6 is designed to improve speed, increase efficiency and reduce congestion in heavy bandwidth usage scenarios.

Intel® Wi Fi 6

Stay Cool Under Demanding Loads

cooling solutions

EXPERT COOLING & SMART FAN 5An effective cooling solution is important for a heavy design workload to help reduce crashes, slow performance and unexpected shutdowns. The unconventional heatsinks are designed for greater thermal dissipation but are also aesthetically appealing to creators. Iconic curved heatsinks cover the hottest VRM area to guarantee efficient power delivery for stable performance. Easily transfer larger files with perfect storage performance with the M.2 heatsinks.

Eight hybrid fan headers and a wealth of temperature sensors are built into the motherboard to monitor in real time and configure fan modes to suit different workloads via Smart Fan 5. You can set the trigger point to activate the fans and their corresponding speeds. The fans completely stop when performing light tasks to reduce noise.

Utilise Future-Proof Content Creation

PCI Express 4.0

PCI Express 4.0 Hardware DesignFor content creators, high bandwidth storage and a high-performance graphics card are critical for projects. This is especially important for 3D rendering and creating high resolution textures. To support the most cutting-edge devices, this motherboard uses groundbreaking PCIe 4.0 hardware. From the PCB, to several new IC to device connectors, everything that the PCIe 4.0 signal goes through is a completely new generation to ensure your PC is completely future-proof.

Transfer Speeds to Boost your Creativity

PCIe Bandwidth

PCIE BANDWIDTH*The PCIe Bandwidth offers up to 31.5GB/s from the new 4.0 x16 slot designs for the next generation add on cards that require powerful bandwidth. This includes the graphics card, deep learning accelerator card and the video capture card.


SSD READ SPEEDS

SSD READ SPEEDSAs a content creator, your workflow requires using huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.

Faster Speed, More Space

PCIE M.2

PCIE M.2M.2 drives help to keep load times short and break the barriers of SATA limitations. M.2 PCIe SSD gives you seven times faster data transferring compared to 2.5" SATA solid state drives.


Dual NVMe PCIe

Dual NVMe PCIe x4 M.2The GIGABYTE M.2 solution offers faster storage performance and provides ideal storage with RAID modes. It features PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors to provide the best compatibility in terms of NVMe storage for creators who demand high capacity and superior performance.


M.2 Ultra Cool

M.2 Ultra CoolWith durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The unique M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue for your PC.

Be Immersed in Pristine Sound

dts x audio

DTS:X® Ultra AUDIODTS:X delivers to you a premium entertainment experience by completely surrounding you and expanding the sound stage to create an immersive gaming or creating environment. It supports channel-based, scene-based and object-based audio. It also takes movies, music, and interactive gaming to exciting new heights.

Specifications
Core Specifications
Edition B550 VISION D
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4866(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5200(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x SATA DOM (Disk on Module) power connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel (Gigabit LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108437
Model Number B550 VISION D
GTIN 4719331809560
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Is there a USB-C header?

I’ve been looking at buying this board for a while now but the lack of front USB-C support on an almost £300 board seems crazy to me, considering nearly all the other boards I’ve been looking at have this and are half the price, I read on a site that not all boards are made exactly the same and to check with your supplier, so if you could clear this up that would be great.
Asked by: Poppin1005
Yes, it includes 2 x USB 3.2 Gen2 Type-C
Answered by: DavidScan
Date published: 2020-08-25

Is this motherboard good for gaming?

Hi, is this motherboard good for gaming? Will this work good for gaming with Ryzen 7 3700X and Nvidia RTX 3080 when it comes out?
Asked by: Kh3n
