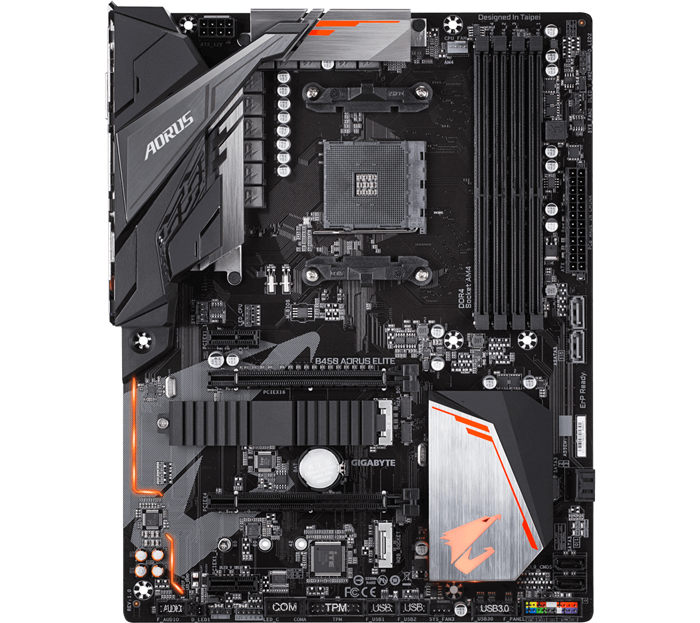

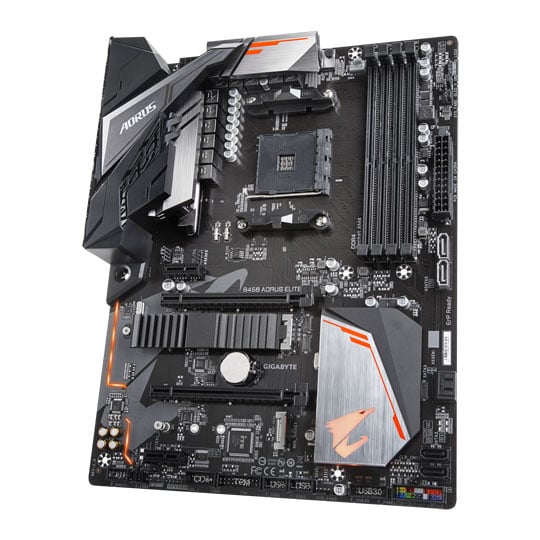

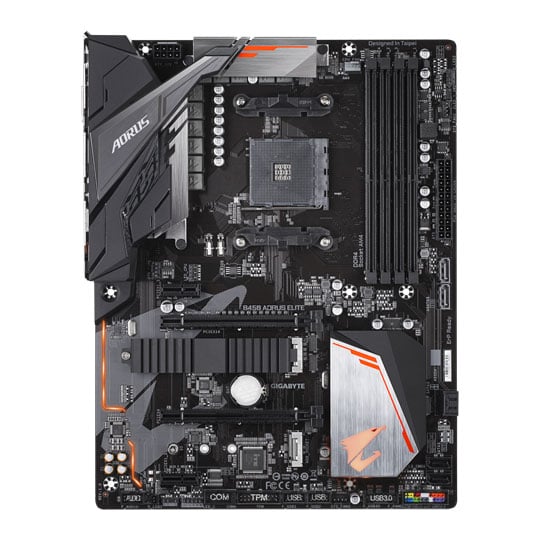

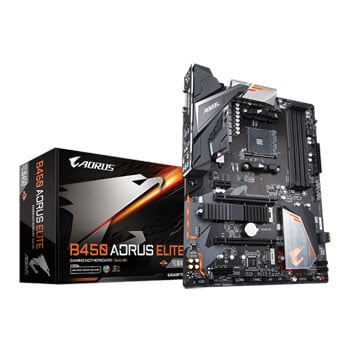

Gigabyte AMD B450 AORUS Elite Ryzen ATX Motherboard

Gigabyte B450 AORUS Elite, AMD B450, AM4, DDR4, 2x M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1 Type-A, ATX

Thumbnail 1 : Gigabyte AMD B450 AORUS Elite Ryzen ATX Motherboard Thumbnail 2 : Gigabyte AMD B450 AORUS Elite Ryzen ATX Motherboard Thumbnail 3 : Gigabyte AMD B450 AORUS Elite Ryzen ATX Motherboard Thumbnail 4 : Gigabyte AMD B450 AORUS Elite Ryzen ATX Motherboard
Scan code: LN92837 Manufacturer code: B450 Aorus Elite
£90.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview AMD Ryzen Desktop 2000 Ready
AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI Technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy.
• Optimizing computer responsiveness from system boot to application launch.
• Offering SSD performance with HDD capacity at an affordable cost.
• Quickly accessing key files by automatically learning users' computing behaviours.

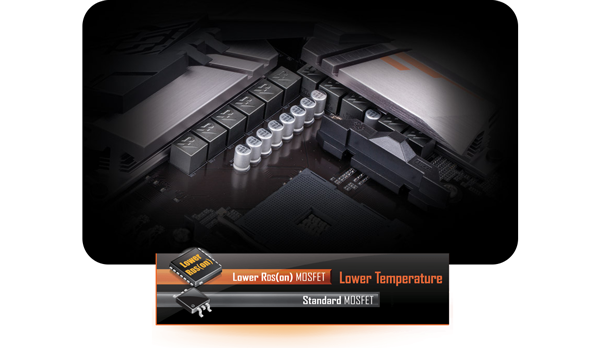

Hybrid Digital PWM + Lower RDS (on) MOSFETs
AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS (on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

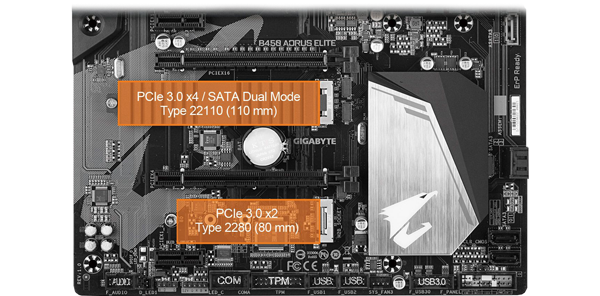

Extreme Performance with NVMe PCIe Gen3 x4, x2 SSDs
With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

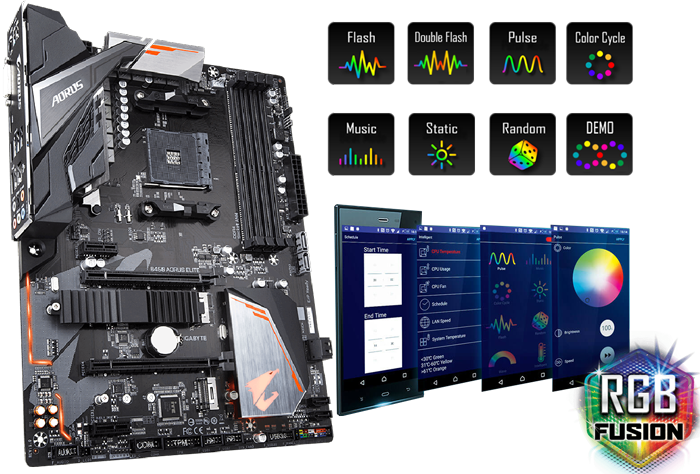

RGB Fusion with Digital LEDs Support
With AORUS Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Independently Programmable Onboard Pin Header for RGBW/UV LED Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colours.

RGB/UV Colour
RGB/UV light strips can illuminate your PC with a fluorescent glow. With UV reactive cables, paint or liquid your PC can radiate with a luminous glow.

True White Colour
RGBW light strips can produce a pure white colour instead of mixing R/G/B to produce an inaccurate white.

Richer Colour
With dedicated white LEDs, light strips can produce a richer and brighter colour on the colour scale.

RGB Calibration
Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.

RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and colour transitions, along with specific duration and transition times.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Set the Colour that Matches Your Style
With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.

High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Durable Design and Easy Installation
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

Make Good Connection and Significantly Lower the Wires Capacity
AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

Start Sulphurisation Protection
Sulphur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulphur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Diagnostic LEDs, Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Centre
The GIGABYTE APP Centre gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Centre allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens. Features • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• HDMI, DVI-D Ports for Multiple Display.
• Integrated I/O Shield of Ultra Durable™ Design.
• Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard.
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.
• RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips.
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.
• Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP.
• APP Centre Including EasyTune™ and Cloud Station™ Utilities.
• CEC 2019 Ready, Save Power with a Single Click.
Specifications
Core Specifications
Edition B450 AORUS Elite
Form Factor ATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x CPU Fan Connector
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)

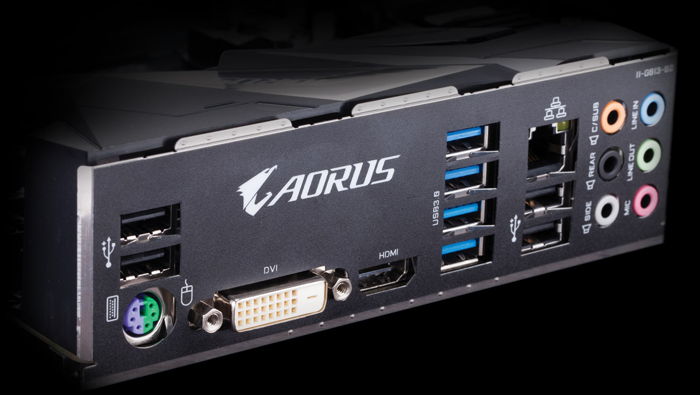

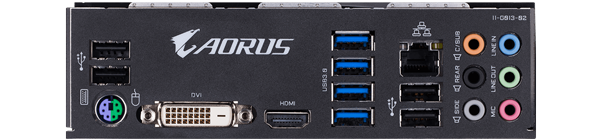

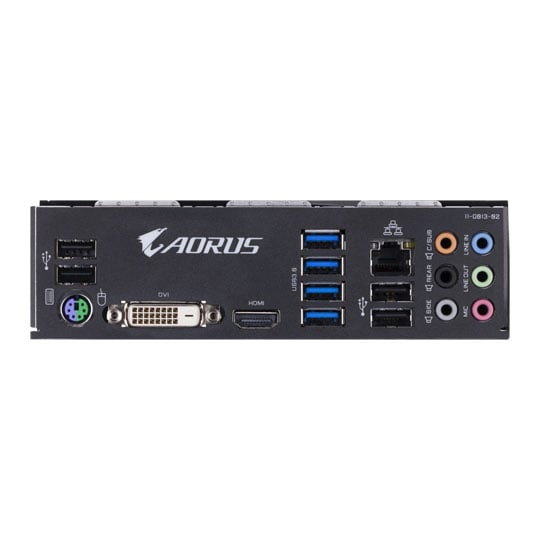

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 4 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 235 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

How many rgb fan headers does this mobo have?

Asked by: WivSniv
Hello, This motherboard has the following RGB headers: 1 x CPU Cooler LED/RGB LED Strip Extension Header 1 x RGB (RGBW) LED Strip Header Regards,
Answered by: JackB
Date published: 2018-10-22
