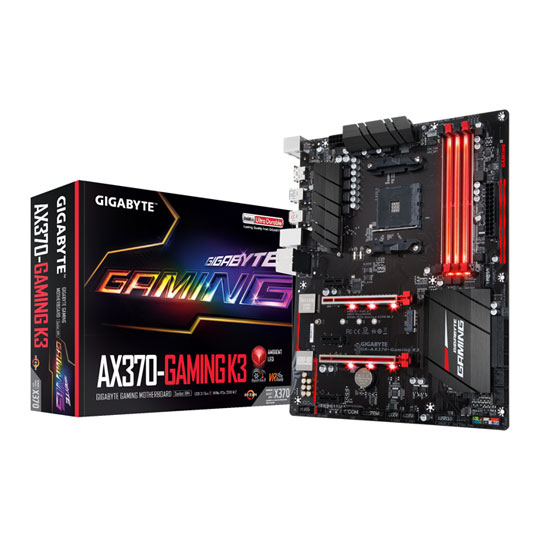

Gigabyte AMD Ryzen AM4 AX370 GAMING K3 ATX Motherboard

Gigabyte AX370-GAMING K3, AMD X370, S AM4, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way CrossFire, Killer GbE, USB3.1 Gen2 A, ATX

Gigabyte
Scan code: LN79158 Manufacturer code: AX370-GAMING K3 Request call
£144.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 25th May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 5 Fan/Water Pump Connectors.
• 6 Temperature Sensors.
• All Fan Pin Headers Upgraded to Hybrid Fan Headers.
• Supports High Current Fans up to 24W (2Ax12V) with Over-Current Protection.
• Intuitive UI for Fan Control.

All Hybrid Fan Pin Headers
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
• Supports Closed Loop Watercooling, CPU Fans, System Fans, & Watercooling Pumps.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

Ambient LED
Ambient lights are now programmable, You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmosphere that enhances the environment of your game, movie or music.

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
Exceptional audio listening experience with 120dB SNR and support for DSD128 hardware decode. Smart Headphone Amp automatically adjusts volumes based on detected headphone impedance.

• 120dB SNR High Definition Audio.
• High-End Audio Components.
• Audio Noise Guard with Ambient LED Trace Path Lighting.

Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

USB DAC-UP 2
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

• Adjustable Voltage USB Port with Dedicated Power Design.
• Voltage Compensation for Better USB Compatibility.
• Accessories that benefit from USB DAC-UP 2:
- VR Headset.
- Mouse.
- Keyboard.
- Gamepads.
- External HDDs/SSDs.

Immersive VR Gaming Experience
• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.

Killer™ E2500 Gaming Network
Killer™ E2500 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Give Yourself The Competitive Edge: Optimize Your Network Performance With The All-New Killer Control Center
• Automatically detects and prioritises apps and popular websites.
• Show which network interface your applications and websites are using.
• Use Killer’s network priority levels or customise your own.
• Control bandwidth allocated to each application.

Fast On-board Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Turbo B-Clock: Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS X370 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 100MHz to 300MHz are now possible.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.

Diagnostic LEDs: Hardware Troubleshooting at a Glance
On-board LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Industry Leading Ultra Durable PCIe Armour
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE Patented Double Locking Bracket
• First Lock: Inserted from the top for better retention.
• Second Lock: Soldered for a stronger bond.

Dual Armour DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.

Ultra Durable™ PCIe Armour
Enhanced Strength PCIe Design, Support for Heavy Graphics Cards for Extreme / VR Gaming Station.

Ultra Durable™ Memory Armour
GIGABYTE’s exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny on-board resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behaviour; these are the possibilities of the System Information Viewer.

@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
*4K display support is dependent on CPU.

HDMI™: The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
*HDMI output support is dependent on CPU.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 14 days XSplit Gamecaster + Broadcaster Premium License.

TriDef® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
*Free 1 month TriDef® SmartCam License. Features • Supports AMD Ryzen™ & 7th Generation A-series / Athlon™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Turbo B-Clock, Built-in Advanced Performance Tuning IC.
• Fast 2 USB 3.1 Gen 2 with USB Type-A.
• 2-Way CrossFire™ Multi-Graphics Support with Dual Armor and Ultra Durable™ Design.
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support.
• ALC 1220 120dB SNR HD Audio with Smart Headphone Amp.
• Killer™ E2500 Gaming Network.
• USB DAC-UP 2 Ports with Adjustable Voltage.
• High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting.
• Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers.
• GIGABYTE™ UEFI DualBIOS™.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • JBOD
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x SATA Express (Compatible with 2x SATA III)
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Killer E2500 (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 6 x USB 3.1 Gen1 Type A
  • 2 x USB 3.1 Gen2 Type A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
