New
Scan code: LN103699 Manufacturer code: TRX40AORUSPROWIFI

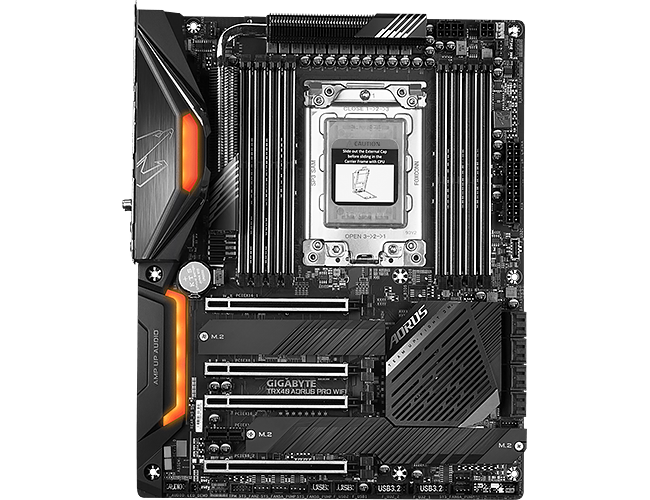

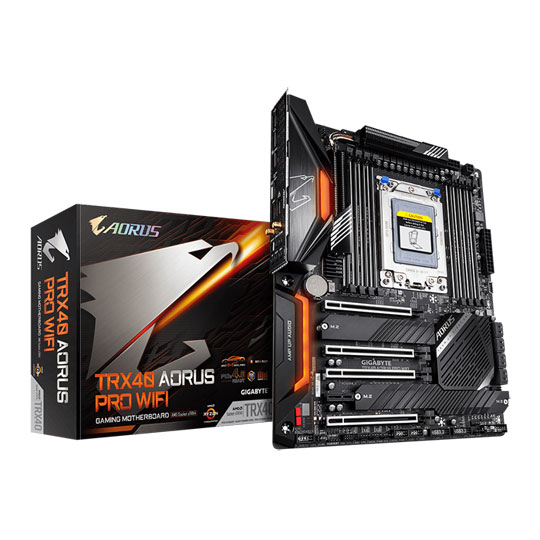

Gigabyte AMD Threadripper TRX40 AORUS PRO WIFI PCIe 4.0 E-ATX Motherboard

Gigabyte AORUS PRO WIFI, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, GbE, ax WiFi, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : Gigabyte AMD Threadripper TRX40 AORUS PRO WIFI PCIe 4.0 E-ATX Motherboard Thumbnail 2 : Gigabyte AMD Threadripper TRX40 AORUS PRO WIFI PCIe 4.0 E-ATX Motherboard Thumbnail 3 : Gigabyte AMD Threadripper TRX40 AORUS PRO WIFI PCIe 4.0 E-ATX Motherboard Thumbnail 4 : Gigabyte AMD Threadripper TRX40 AORUS PRO WIFI PCIe 4.0 E-ATX Motherboard
Scan code: LN103699 Manufacturer code: TRX40AORUSPROWIFI
£412.99Item overdue since 13 December 2019
Pre order
From £17.21 / month (APR 0%)
Monthly Payment: £68.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £412.99
Total inc. interest: £412.99
Monthly Payment: £34.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £412.99
Total inc. interest: £412.99
Monthly Payment: £22.95
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £412.99
Total inc. interest: £412.99
Monthly Payment: £17.21
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £412.99
Total inc. interest: £412.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.31 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Gigabyte AMD Ryzen TRX40 AORUS PRO WIFI Motherboard

gigabyte AMD trx40 aorus master

INSPIRED BY POWER AND EXCELLENCE This unique AORUS E-ATX motherboard has been brought to you by Gigabyte to deliver the finest Threadripper™ performance. The AORUS PRO WIFI focuses on performance, looks and power to bring you a motherboard that's ready for any task. You can customize the on-board lighting with Gigabyte's RGB Fusion software to add a touch of your personality to the motherboard. It features a wealth of high-end features to keep you ahead of the game, with ultra-fast PCIe 4.0, Smart Fan 5 features, Onboard Intel® WiFi 6 and advanced thermal protection. Enjoy this intelligent architecture that has been especially designed for efficiency, power, and flawless operation.

Please note: Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors Processors for sTRX4 socket.

AMD TRX40Chipset

sTRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPUs

E-ATXForm Factor

Enjoy Flawless Power for your Dream PC

power design

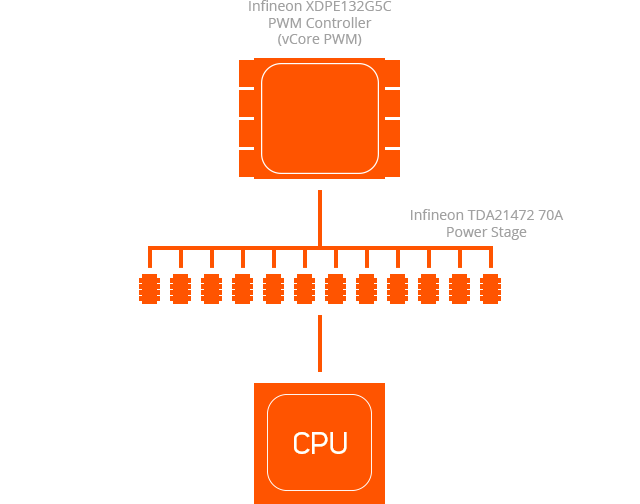

Direct 12 Phase Power Design With the TRX40 AORUS PRO WIFI enjoy perfect loading, efficiency and low voltage ripple with its incredible Direct 12 Phase Power Design which ensures you get flawless motherboard performance.

efficiency

Power Efficiency & Voltage Ripple Graph The TRX40 AORUS PRO WIFI offers up to 4% higher efficiency with it's special Direct Power Design than traditional Parallel Power Designs to give you greater performance that's more efficient.

2x copper pcb GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between your components to easily handle demanding power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure your motherboard is able to handle the increased power loading that is necessary when overclocking.

Maximize your System's Potential

pcie

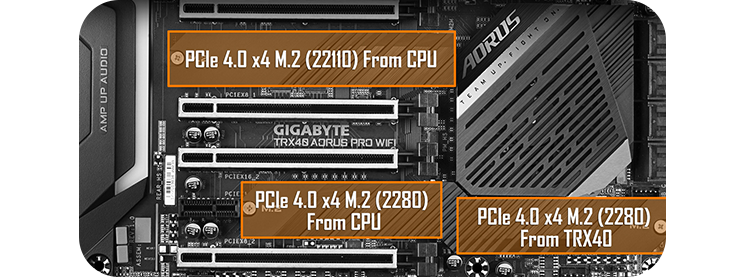

3 X PCIE 4.0 M.2 GIGABYTE motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.

pcie

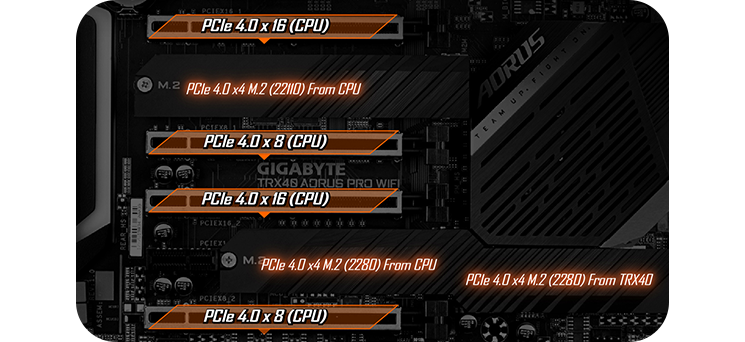

PCIE 4.0 DESIGN This game-changing GIGABYTE motherboard offers several new components to guarantee the finest PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, and switches that are specifically designed for PCIe 4.0. This great performance ensures there will be no compromise.

xmp

SUPPORT FOR DDR4 XMP UP TO 4400MHZ AND BEYOND AORUS is offering a tested and proven platform that ensures fantastic compatibility with profiles up to 4400MHz and beyond. All you need to do to attain this performance boost is make sure your memory module is XMP capable and that the XMP function is activated and enabled on your AORUS motherboard.

Discover Better Responsiveness in LAN Settings

lan

DUAL INTEL® GBE LAN Dual Intel® GbE LAN features cFosSpeed, which is a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Finest Technology for the Greatest Gaming

adaptor

Intel® WiFi 6 802.11ax & BT 5 Module Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, a better gaming experience, fewer dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Support for Dual Bands with Better WiFi Signal

adaptor

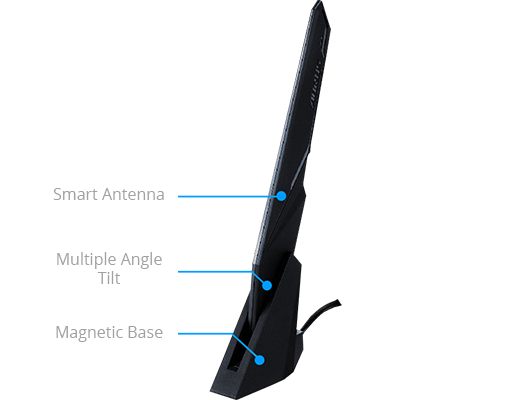

AORUS Antenna The all new AORUS antenna supports dual band 802.11ax/ac 2.5Ghz and 5GHz bandwidths, giving a greater signal strength compared to traditional antenna design. This intuitive antenna has a smart function to give the greatest WiFi signal transmitting. It features a multiple angle tilt and a magnetic base for the best signal strength, direction and location.

Experience the Finest Performance Features

sf5

Smart Fan 5 With Smart Fan 5 you can ensure that your PC maintains excellent performance whilst staying cool. Smart Fan 5 allows you to interchange your fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5, more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the AORUS PRO WIFI motherboard more liquid cooling friendly.

hybrid

8X Hybrid Fan Header Take complete control over your liquid cooling setup. Smart Fan 5 receives up-to-the-second information on flow rate and water temperature through the Hybrid Fan Pin Headers or the external thermistor sensors. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be a fan or pump with the different PWN or Voltage modes.

fanstop

Fan Stop Achieve silent performance with Fan Stop. Map any fan to stop completely when temperatures drop below a specified threshold. The fans stop based on readings from a special sensor, and at certain temperatures that can be customized to your lighting.

siv

NEW SMART FAN 5 SOFTWARE Choose from a wealth of different modes to enhance your performance. Quiet or Full speed to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Ultra Durability for Years to Come

armor

ULTRA DURABLE PCIE ARMOR The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to give your motherboard the extra strength it needs to support heavy graphics cards.

pins

SOLID PIN POWER CONNECTORS The TRX40 AORUS PRO WIFI motherboard features solid plated ATX 24pin & ATX 12V +8pin power connectors to offer a flawlessly stable power supply during CPU overloading. They offer a larger contact area for electricity, a higher metal quantity to sustain higher power and generated heat, and are more durable than traditional pins to offer a longer lifespan.

plate

ULTRA DURABLE MEMORY ARMOR AORUS' exclusive one piece stainless steel shielding prevents against PCB distortion/twisting and plate bending. It also helps to prevent any possible ESD interference.

flash

Q-FLASH PLUS Update your BIOS easily without installing the CPU, memory or graphics card. With GIGABYTE Q-Flash Plus, you don't need to install your other components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on a USB flash drive, then press the dedicated Q-Flash Plus button and you're ready to go.

Add Illumination to your Rig

4K Recording

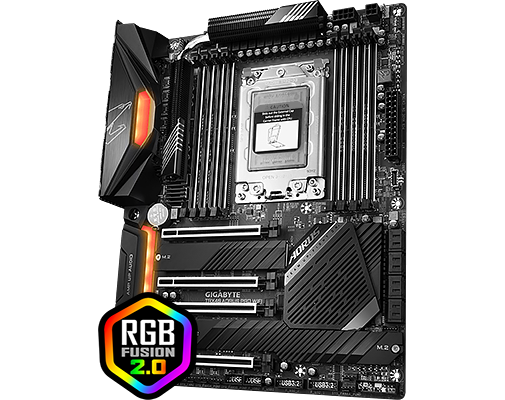

WITH RGB FUSION 2.0 Personalize your rig to your liking by selecting the a colour or effect of your choice, and you can even attach external RGB light strips with RGB LED and Digital Addressable LED headers. With an intuitive interface, the RGB Fusion 2.0 software provides a solution for customizing lighting all across your supported devices. From motherboards, graphics cards, to peripherals, you can personalize your gaming rig with your own style and even create colour profiles that you can share with others. The new gaming mode makes lighting effects interact with selected games to bring you the most immersive gaming experience.

rgb1

ASSIGN COLOUR TO YOUR COMPONENTSSynchronize the lights of your PC's components from one place.

rgb2

DIGITAL LED TABIndividually control lighting as you wish.

Excellent Ways to Fine-Tune your System

bios

BIOS New User Interface: All new EASY MODE shows important hardware information including CPU clock, Memory, Storage, Fan.
My Favorites: Add constantly used items into the favorite menu for quick access.
Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.

apps

APP CENTER GIGABYTE APP CENTER is a useful portal of all GIGABYTE's motherboard utilities and drivers, you can choose any utility you want you want to install from the APP CENTER and keep updated with the latest utilities and drivers.

easytune

EASYTUNE INTERFACE GIGBYTE's EasyTune™ is a simple and easy-to-use interface that allows you to fine-tune your system settings, adjust system and memory clocks, and adjust voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

system info viewer

SYSTEM INFORMATION VIEWER GIGABYTE System Information Viewer is an interface that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior. There's plenty of possibilities of the System Information Viewer.

Immerse yourself with Beautiful Audio

ALC1220-VB Immersive Gaming ViBes ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your headset, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world clearly with both front and rear microphone SNR up to 110/114dB(A).

wima

High-End WIMA & Audio Capacitors TRX40 motherboards feature Hi-Fi grade WIMA FKP2 capacitors which process feedback signals to deliver clear and balanced sound. With this comes exclusive AORUS AMP-UP technology which makes for an ideal onboard sound solution with quality that satisfies even the most demanding audiophiles.

dts

DTS :X® Ultra 3D SOUND DTS :X® Ultra works to recreate an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. It supports channel-based, scene based and object-based audio. Enjoy out-of-the-box calibration for a range of headphones and speakers. DTS :X® Ultra provides post-processing enhancements and device level tuning for DTS codecs.

confusion

No More Confusion During In-Game Voice Chat Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

Specifications
Core Specifications
Edition TRX40 AORUS PRO WIFI
Form Factor ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 22-60/80/110 PCIe Gen4x4/SATA3
  • 2 x M.2 22-80 PCIe Gen4x4/SATA3
  • 1 x PCIe 4.0 x1
  • 2 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x GIGABYTE ADD-IN CARD
  • 2 x LED strip connector
  • 3 x M.2 Connector
  • 2 x RGB (RGBW) LED Strip Header
  • 8 x SATA III - 6Gb/s
  • 2 x System Fan header
  • 4 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM (Trusted Platform Module)
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN103699
Model Number TRX40AORUSPROWIFI
GTIN 4719331807658
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
