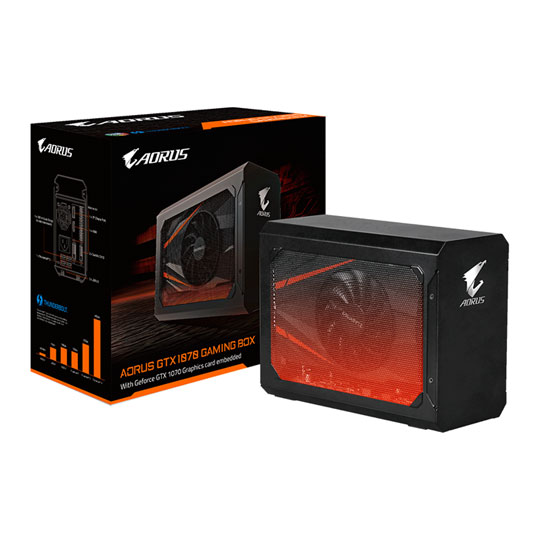

AORUS GTX 1070 Thunderbolt 3 External Graphics Gaming Box

Gigabyte AORUS GeForce GTX 1070 RGB Gaming Box, Thunderbolt 3, Compact+Portable External GPU for Ultrabooks/Laptops

Scan code: LN83351 Manufacturer code: GV-N1070IXEB-8GD Request call
£599.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £14.98 / month (APR 15.9%)
From £28.80 / month (APR 14.9%)
Monthly Payment: £104.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £599.99
Total inc. interest: £624.66
Monthly Payment: £53.87
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £599.99
Total inc. interest: £646.35
Monthly Payment: £37.14
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £599.99
Total inc. interest: £668.52
Monthly Payment: £28.80
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £599.99
Total inc. interest: £691.14
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
review High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Turn Your Ultrabook To Gaming Platform!

Upgrade The Game Experience with GeForce GTX 1070 Graphics Card Embedded
Powered by GIGABYTE GeForce GTX 1070 overclock edition graphics card, AORUS GTX 1070 Gaming Box turns the Ultrabook laptop PC into a gaming platform, delivers the incredible performance for graphics-intensive and VR-ready games. And with GIGABYTE numerous thermal and overclock technology, you can enjoy high performance in a quiet environment.

Thunderbolt 3 Creates The Possibility
Thunderbolt 3 provides the speed up to 40Gbps, delivering the fastest connection to any dock, any display or data device. It creates much more possibility in one compact port.

• More Speed: 40Gbps.
• More Power: 100W Charging.
• More Possibilities: PCI Express, SuperSpeed USB.


AORUS GTX 1070 Gaming Box connects to the laptop PC by Thunderbolt™3. It provides the speed up to 40 Gbps and delivers 100W to charge the laptop PC.
*For power charging, the laptop PC needs to support PD 3.0

Video Output
AORUS GTX 1070 Gaming Box provides 1x HDMI, 1x DP, and 2x DL DVI-D for external monitor outputs, that you may enjoy multi-view.

3X USB 3.0
AORUS GTX 1070 Gaming Box provides 3 USB ports to connect a mouse, a keyboard, a headset, a USB storage, or any other USB devices. Or, plug a "USB to Ethernet LAN Adaptor" to use the wired network.

Quick Charge 3.0 USB
Quick charge provides 4x faster than conventional charging.
*The device needs to supports QC 3.0. This port is for power charging only.

AORUS Outlook

RGB Fusion
With 16.8M customizable colour options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS Graphics Engine.

• Cycling: Smoothly cycles through all colours.
• Consistent: Static lighting of selected colour.
• Flash: Flash effect of selected colour.
• Dual Flash: Double flash effect of selected colour.
• Breathing: Fades in and out of selected colour.

AORUS Friendly: Easy to Carry with Portable Size
With compact and stylish design, AORUS GTX 1070 Gaming Box is not only suitable for any desktop but also easy to carry. Features • Embedded GeForce GTX 1070 enables graphics-intensive game and VR experience.
• Thunderbolt™3 plug and play.
• Easy to carry with portable size.
• Supports Quick Charge (QC 3.0) and Power Delivery (PD 3.0).
• Supports 3x USB 3.0 for peripheral devices.
• RGB Fusion: 16.8M Customizable Colour Lighting.

• AORUS GTX 1070 Gaming Box.
• Thunderbolt 3 cable 500mm.
• Power Cord (The type is different according to each region).
• Carry Bag.
• Manual.
• Driver CD.
Chipset GeForce GTX 1070
Edition AORUS GTX 1070 Gaming Box
Manufacturing process 16 nm
Microarchitecture Pascal
Cores 1920
Streams N/A
NVIDIA Tensor Cores
Core Clock 1531 (1556 in OC Mode) MHz
Boost Clock 1721 (1746 in OC Mode) MHz
Memory Size 8GB
Memory Type GDDR5
Memory Clock 8008 MHz
Memory Bus 256 Bit
Cooling Solution Single Fan (1)
Cooler Design GIGABYTE Custom 90mm Cooler
Included/Fitted Backplate No
Interface PCIe 3.0 (x16)
  • 1 x DisplayPort 1.4
  • 2 x DVI-D DL
  • 1 x HDMI 2.0b
  • 1 x IEC (C13) Power Connector
  • 1 x Quick Charge 3.0 USB (Charge Only)
  • 1 x Thunderbolt 3
  • 3 x USB 3.0
Maximum Digital Resolution 7680x4320 @ 60Hz
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
NVIDIA SLI Support Not Supported
GeForce GTX VR Ready Yes
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Low Profile Compatible No
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU Included 450 W
Maximum GPU Temperature 94 °C
Dimensions 212 x 96 x 162 mm
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
TekSpek Guides
NVIDIA GeForce GTX 1070 & 1080
NVIDIA GeForce GTX 1070 & 1080
Date Issued: 9th May 2016

The wait is finally over as Nvidia has unveiled the eagerly anticipated GeForce GTX 1080 graphics card.

Read More

Questions & Answers

Is this external GPU compatible with 2017 MacBook Pro?

Asked by: AshM
Hello, There is no officially listed support for this on a Mac, however there are reports of people having success with various models. You would need to check various guides/forums to see if and how it can be achieved with your particular setup. Regards,
Answered by: JackB
Date published: 2017-11-21

my laptop doesn't have thunderbolt port. will it work with USB 3.0?

Asked by: Vish
Hello, This device would require a Thunderbolt connection. Regards,
Answered by: JackB
Date published: 2018-01-09
