Scan code: LN53891 Manufacturer code: FD-CA-NODE-304-WH

Fractal Design Node 304 White Mini ITX Case

Fractal Design Node 304 White mini-ITX Case with USB 3.0 w/o PSU (Std ATX)

Thumbnail 1 : Fractal Design Node 304 White Mini ITX Case Thumbnail 2 : Fractal Design Node 304 White Mini ITX Case Thumbnail 3 : Fractal Design Node 304 White Mini ITX Case Thumbnail 4 : Fractal Design Node 304 White Mini ITX Case
Scan code: LN53891 Manufacturer code: FD-CA-NODE-304-WH
3xs Approved
£74.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

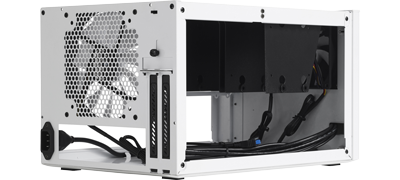

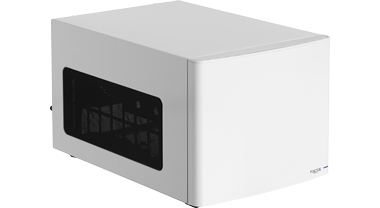

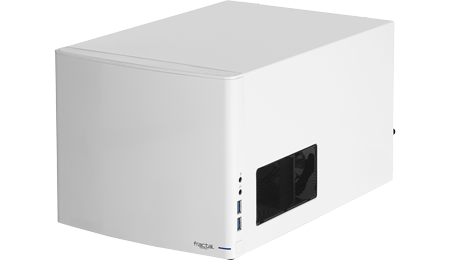

Product Overview The Node 304 features a unique modular interior for outstanding configurability.

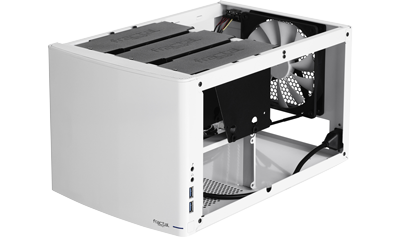

The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed to allow for long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports.

Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish and quiet home theatre PC or a powerful gaming system highlighting minimalistic and stunning Scandinavian design and maximum functionality.
Features • Compact, modular interior
• Minimalistic design with an elegant aluminum front panel
• Unique new modular mounting system that accommodates up to 6 hard drives
• Accommodates tower CPU coolers and single-fan water cooling systems
• Filtered air intakes ensure a dust-free environment for internal components
• Three Silent Series R2 hydraulic bearing fans included
• Excellent cooling for all components
• Accommodates ATX power supplies
• Fan controller for all fans included
• USB 3.0 for fast file transfers
Specifications
Core Chassis Specifications
Case Edition Node 304
Case Form Factor Mini-ITX
Motherboard Form Factor
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays 6 x 2.5"/ 3.5" Internal
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 140mm
  • 2 x 92mm
Fans Included
  • 1 x 140mm
  • 2 x 92mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour White
Chassis Contruction Materials
Dimensions 250 x 210 x 374 (WxHxD mm)
Weight 4.9 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Reviews
Fractal Design Node 304 White mini-ITX Case with USB 3.0 w/o PSU (Std ATX) is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Inexpensive, good-looking, well thought-out ITX case While a small case should normally cost less than a large one, in practice I find that's rarely the case. Nonetheless I was pretty impressed with what £60 got me in the Node 304. The finish on the case is soft (possibly powder-coated?) rather than the cold, dull surfaces you see on most PC cases nowadays, it looks simplistic but pretty attractive especially in white and on the inside, it's surprisingly easy to work with. Assembling a high-performance build in this was little more difficult than in a mid-tower. Leaving all 6 disk bays in can make cable management rather difficult due to limited space, but since each tray pair is removable, you can leave one or two out to make life easier. Although you can fit full-size graphics cards in the box if you use a short PSU, since I didn't want to be limited by PSU choice I stuck with a short card, which you still find up to GTX970 levels of performance. Installation took a similar amount of time to a normal build, all the screws and fittings were fairly straightforward and although heavier than some of its rivals, the case still allows for a compact, lightweight and attractive system without adding much to the cost.
Date published: 2015-06-23
Rated 5 out of 5 by from Clean look! This is an awsome little case. My first MITX build and I am very pleased. The case is well built, it can fit full sized heat sinks, PSUs, and grafix cards.. I have only used air cooling so can't comment on water cooling. However do watch out. A full size modular PSU will be blocked if you have a large grafix card. Luckily this did not affect me as my PSU is not modular. I had to play with cable management instead. Also there is no space whatsoever for an optical drive. I don't have a particular need for it. An external bluray drive will do the job. And the other thing I do worry about is accidentally dropping something metallic on the case as the paint will scratch off. Other than that, very happy.
Date published: 2013-12-02
Rated 5 out of 5 by from Mini Gaming PC Build I've had a few comments about this looking like a microwave but I think it is a great little case. Built a gaming pc with this using the following components: Asus Z87i-Pro 128gb Corsair Force Series 16gb Corsair (CMZ16GX3M2A1600C9) Vengence Antec Khuler H20 920 Corsair TX650V2 Enthusiast 650W TX Intel Core i5 4670K EVGA GTX 780 Try to find the antec khuler drivers at your peril - they're on the supplied CD/DVD - as no space for CD/DVD in this case (didn't have an external option) - copy to USB to get them installed. All in it took me about an hour to put this together - added a 1tb Samsung from another pc later. Noted that some builds referenced a 600W PSU but they didn't have the 6 and 6+2 pin required for the 780. After running/playing most games for a couple of hours @ 256-x1080 the CPU temp tops out around 44 degrees and the GPU approx 60. Small, neat, quiet and minimalist - loving this case, especially as I didn't cut myself to ribbons building it!
Date published: 2013-11-14
  • y_2018, m_7, d_20, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_53891, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Graphics Card Space

Hello, Can you tell me whether the Fractal Design Node 304 case will accommodate a standard size graphics card. Thanks Tom
Asked by: Tom1
The Node 304 will fit almost any length graphics card (including up to an R9 290X, GTX980Ti etc.) with a power supply 160mm deep or less - not all units are this compact though, so bear that in mind. If you want to make life easier, look for a 'mini ITX' form factor graphics card , such as the GTX960/970 from Gigabyte - two slot coolers are fine, but the short length makes wiring things up much easier.
Answered by: ratmanscoop
Date published: 2015-08-22
