Fractal Meshify C Tinted Tempered Glass Mid Tower PC Gaming Case

Fractal Design Meshify C, Mid Tower Computer Chassis, w/ Black Tempered Glass Window, ATX/MicroATX/Mini-ITX, 2x120mm Fan

Fractal Design
Scan code: LN82940 Manufacturer code: FD-CA-MESH-C-BKO-TG Request call
£89.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End

There are 6 people viewing this product

Delivery options £11.50 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

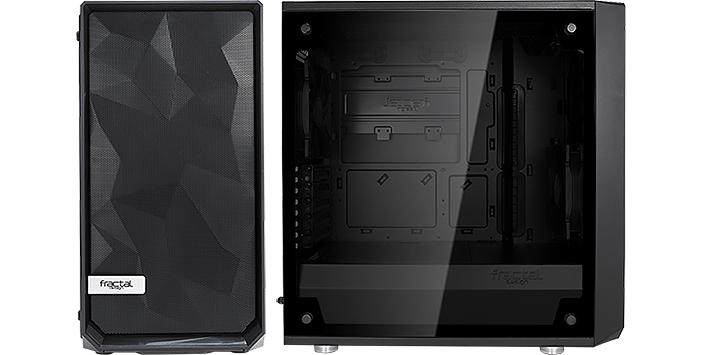

Product Overview Meshify C: Precision Cut Performance
• Streamlined high-airflow design.
• The performance and capacity of a larger tower in a remarkably compact mid-tower size.
• Newly designed angular mesh front panel maximizes air intake.

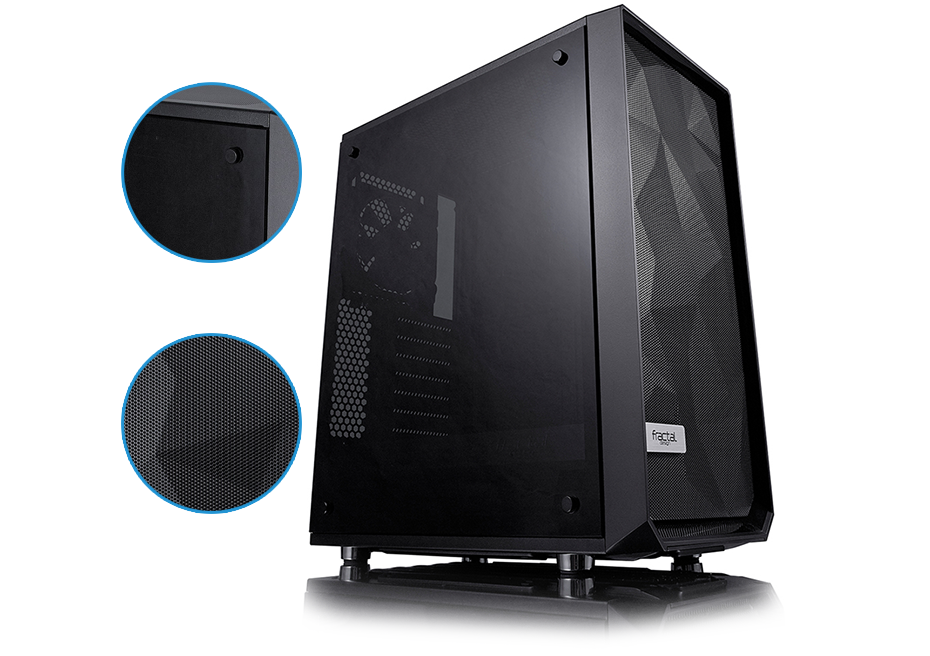

• Tinted tempered glass side panel for a clean looking exterior with full interior visibility.
• Distinctive new styling with stealthy black-on-black aesthetic.
• Flexible storage options with room for up to 5 drives.
• Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation.
• Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise.

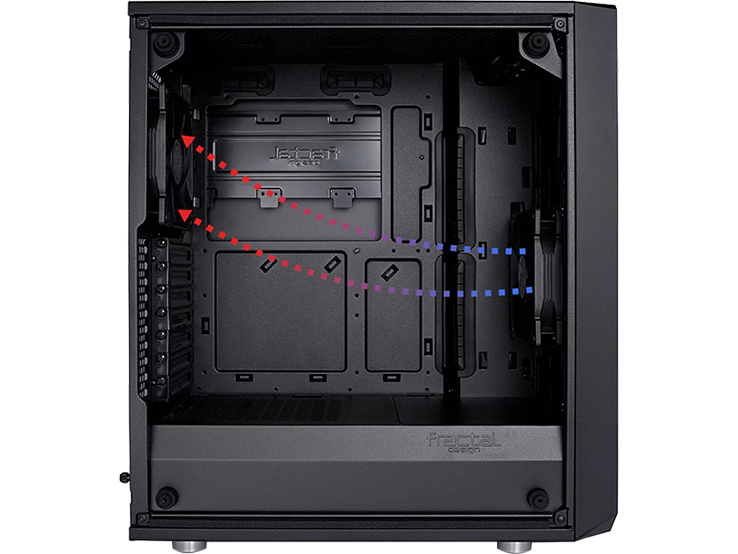

• Open interior layout creates an unobstructed airflow path from front intake to rear exhaust.

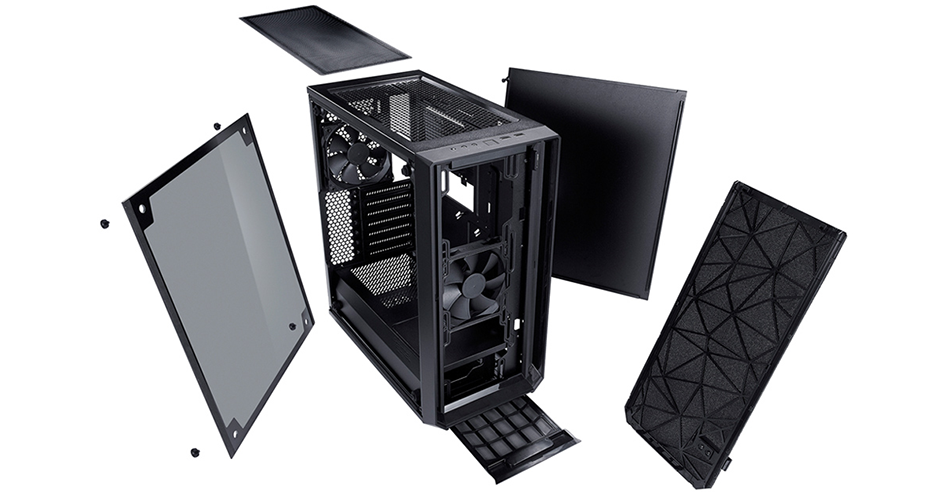

• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access.
• Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior.
• Up to 35 mm of space behind motherboard plate with grommetted pass-throughs for clean cable routing.

Meshify strikes an aggressive pose in the Fractal Design line-up with unparalleled cooling performance and a defiant new look.

Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style. A compact yet spacious open ATX layout creates an unrestricted airflow path from front intakes directly through key components to exhaust, ensuring heat is never an issue.

When performance is top priority and compromise is not an option, Meshify has you covered in style. Features 3.5" or 2.5" Drive capacity
2

Dedicated 2.5" drive capacity
3 (maximum 2.5" drive thickness is 12mm)

Expansion slots
7

Motherboard compatibility
ATX, mATX, ITX

Power supply type
ATX

Total fan mounts
7

Front fan
3x 120 or 2x 140 1x Dynamic X2 GP-12 included

Top fan
2x 120/140

Rear fan
1x 120 1x Dynamic X2 GP-12 included

Bottom fan
1x 120

Side fan
No

Dust filters
Bottom fan + PSU Front fans Top fans

Front radiator
120/240/360mm 140/280mm

Top radiator
120/240mm (max component height on motherboard 40mm)

Rear radiator
120mm (max width 125mm)

Power supply depth limit
Maximum 175mm recommended

Graphics card length limit
Max 315mm with front fan mounted

CPU cooler height limit
172mm

Cable routing
15-35mm space

Cable routing grommets
Yes

Fixed velcro straps
Yes

Captive thumbscrews
Right side panel SSD brackets

Left side panel
Tempered Glass

Case dimensions (LxWxH)
395 x 212 x 440mm

Case dimensions - with feet/protrusions/screws
409 x 217 x 453mm

Net weight
6.5 kg

Package dimensions (LxWxH)
543 x 295 x 484mm

Package weight
7.9 kg
Specifications
Case Edition Meshify C
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • Desk Chassis
  • MicroATX
  • Mini-ITX
Material Steel / Plastic / Tempered Glass
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Expansion Slots 7
Fan Bays
  • 4 x 120/140mm
  • 2 x 120mm
Fans Included 2 x 120mm
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length 175 mm
Max CPU Cooler Height 172 mm
Max VGA Card Length 315 mm
Colour Black
Dimensions 217 x 453 x 409 (WxHxD mm)
Weight 6.5 kg (Approx)
